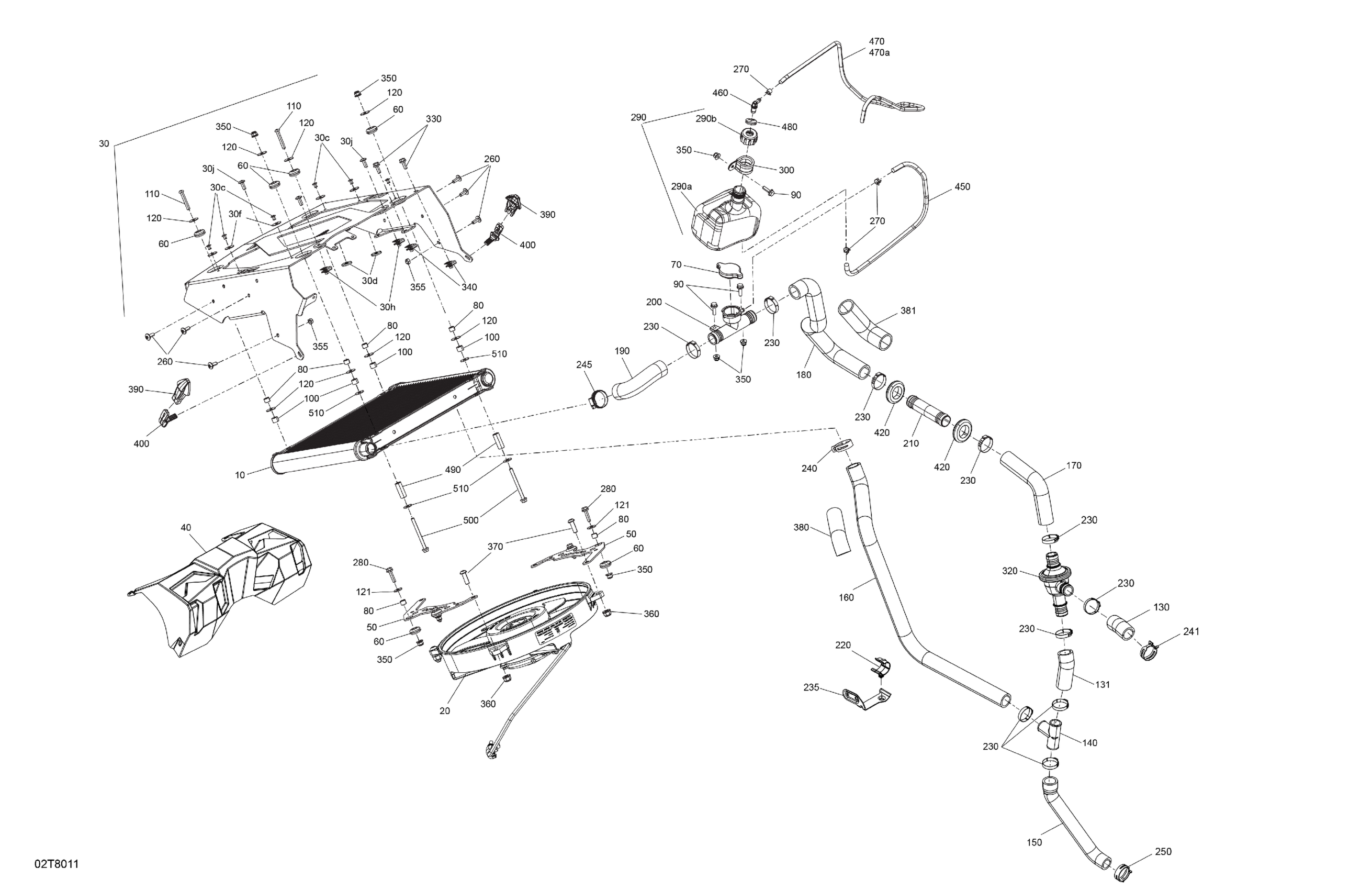

Can-Am OUTLANDER MAX - 4X4 - XMR - 1000R - 5KJA - Can-Am Red, 2018 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200286

$453.14

20

Fan Ass'y

709200565

$226.12

30

Deep Black, Radiator Support Kit | Includes 30 to 30j

709201336

$350.74

30c

Rivet 3/16"

293150102

$0.71

30d

Washer

517124300

$0.16

30f

Rubber Washer 5 mm

250200024

$1.77

30h

Panel Nut M6 X 1.0

250100198

$1.73

30j

Torx Head Screw M6 X 16

250000717

$1.74

40

Protection Cover Kit

703100399

$84.54

50

Aupport_Fan Ecoat

709201349

$26.12

60

Grommet

293720062

$4.16

70

Radiator Pressure Cap

709200207

$18.82

80

Spacer

707000058

$12.17

90

Hex. Flange Screw M6 X 20

207662034

$1.74

100

Bushing

708001129

$10.98

110

Torx Screw M6 X 30

235563054

$3.61

120

Flat Washer

250200040

$1.82

121

Flat Washer M6, Stainless

234062600

$0.64

130

Cylinder Hose | Engine 850-1000R

709200630

$6.92

131

Cylinder Hose | Engine 850-1000R

709200629

$6.92

140

T-Fitting

509000219

$15.35

150

Outlet Hose | Engine 850-1000R

709200787

$16.12

160

Outlet Hose | Engine 850, 1000R

709200801

$36.89

170

Outlet Hose | Engine 850, 1000R

709200788

$16.89

180

Outlet Hose

709200892

$36.89

190

Hose

709200891

$13.59

200

Filler Neck

709200422

$17.57

210

Nipple Tube 1"

709200448

$23.05

220

Retainer

275500526

$3.73

230

Gear Clamp

509000162

$7.37

235

Hose Support

709200641

$8.45

240

Norma Spring Clamp

293650166

$4.28

241

Norma Spring Clamp

293650166

$4.28

245

Norma Gear Clamp

293650098

$4.28

250

Norma Spring Clamp

293650166

$4.28

260

Torx Head Screw M6 X 16

250000717

$1.74

270

Spring Clamp

414554800

$0.83

280

Hex. Flange Screw M6 X 25

207662544

$0.53

290

Coolant Tank Ass'y | Includes 290 to 290b

703501190

$96.89

290a

Coolant Tank Ass'y

709200624

$96.89

290b

Cap

709200586

$11.06

300

Hose Anchor

709200036

$10.83

320

Thermostat

709200406

$77.32

330

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

340

Panel Nut M6 X 1.0

250100198

$1.73

350

Flange Elastic Nut M6

233261434

$3.61

355

Elastic Stop Nut M6

232561414

$1.55

360

Hex. Flange Elastic Nut M8

233281414

$1.14

370

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

380

Tubing 35 MM 1000MM Long

219704428

$8.57

381

Tubing 35 MM 1000MM Long

219704428

$8.57

390

End Piece Latch

517304075

$4.43

400

Panel Latch

517303981

$10.00

420

Grommet

293720096

$11.06

450

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

460

Male Connector

414580700

$3.38

470

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

470a

Polyurethane Hose

293830193

Unavailable

480

Grommet

705003264

$3.43

490

Bushing

705202499

$6.45

500

Hex. Flange Screw M6 X 70

207667044

$0.70

510

Flat Washer M6, Stainless

234062600

$0.64
