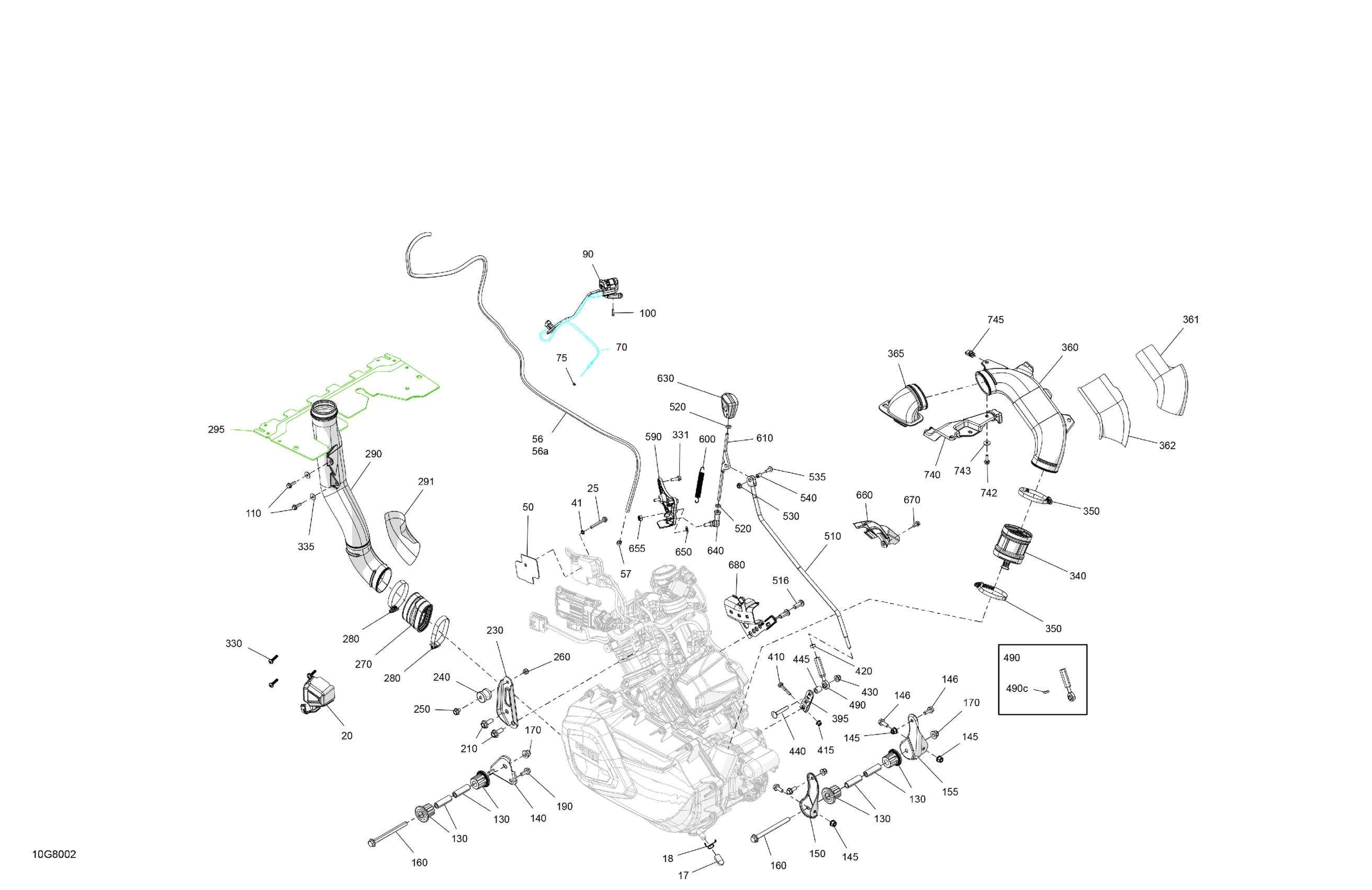

Can-Am OUTLANDER - 4X4 - DPS - 570 EFI - 2CJA - Orange Crush, 2018 Engine - System Diagram

#

Description
Price

17

Plug

707001185

$1.25

18

Retainer Clip

707800506

$10.98

20

Cover

707000945

$6.45

25

Hex. Flange Screw M6 X 50

207665044

$3.38

41

External Serrated Lock Washer 6 mm

234461608

$0.92

50

Insulator Pad

710000073

$11.06

56

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

56a

Polyurethane Hose

293830193

Unavailable

57

Clamp, Oetiker

293650195

$1.37

70

Throttle Cable

707000955

$12.58

75

Cable Guide

707000434

$10.52

90

Throttle Handle | 4X4

707000595

$73.82

100

Socket Head Screw M5 X 25

205052588

$1.56

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

130

Vibration Damper

707001169

$44.99

140

Engine Support

707003319

$9.23

145

Hex. Elastic Flange Nut M8

233281416

$1.25

146

Hex. Flange Screw M8 X 20

207682046

$1.82

150

LH Rear Engine Support

707003325

$15.35

155

RH Rear Engine Bracket

707001194

$15.35

160

Hex. Flange Screw M10 X 125

230602546

$6.08

170

Hex. Flange Elastic Nut M10

233201436

$1.74

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

210

Hex. Flange Screw M10 X 25

207602544

$1.33

230

Upper Engine Bracket

707001256

$11.83

240

Rubber Isolator

707000949

$9.00

250

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

260

Hex. Elastic Stop Nut M8

232581414

$0.47

270

Flexibale Adaptor

707002585

$14.75

280

Norma Clamp

293650091

$4.60

290

CVT Air Inlet

707002067

$50.74

291

Heat Shield

707001654

$2.75

295

Upper Water Deflector

707001124

$21.37

330

Screw PT K60 X 30

250000949

$1.74

331

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

335

Flat Washer M6, Stainless

234062600

$0.64

340

CVT Air Outlet Adaptor

707001168

$15.19

350

Norma Gear Clamp

293650118

$9.74

360

Air Outlet

706600019

$36.89

361

Heat Shield

707001205

$9.29

362

Heat Shield

707001206

$9.29

365

CVT Cooling Duct Out

706600400

$50.74

395

Lever

707000911

$18.43

410

Hex. Flange Screw M6 X 35

207663544

$0.74

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Hex. Nut M8, LH Threads

250100144

$1.64

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Carriage Bolt M8 X 50 | DS 650 X

207785044

$6.11

445

Bushing

293900106

$4.42

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$35.14

490c

Hex. Jam Nut M8

232180600

$0.56

510

Shifter Rod

707002085

$32.28

516

Screw Socket M10 X 25 | Europe

205402556

$3.25

520

Hex. Jam Nut M8

232180600

$0.56

530

Hex. Flange Nut M6

233161414

$1.74

535

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

540

Bushing

293900019

$7.37

590

Lever Support

707003054

$6.45

600

Spring

707000577

$10.03

610

Shift Arm | Except Europe

707000840

$15.22

630

Lever Trim

707003211

$7.95

640

RH Ball Joint

707001959

$35.14

650

Washer

506151252

$3.11

655

Hex. Elastic Stop Nut M8

232581414

$0.47

660

Cover OPS

707000410

$12.91

670

Hex. Flange Screw M6 X 12

210261250

$1.56

680

Cable Support

707003053

$8.46

740

Air Outlet Support

707001262

$7.69

742

Hex. Flange Screw M6 X 20

207662044

$1.66

743

Flat Washer 6 mm

234062410

$0.64

745

Panel Nut M6 X 1.0

250100198

$1.73
