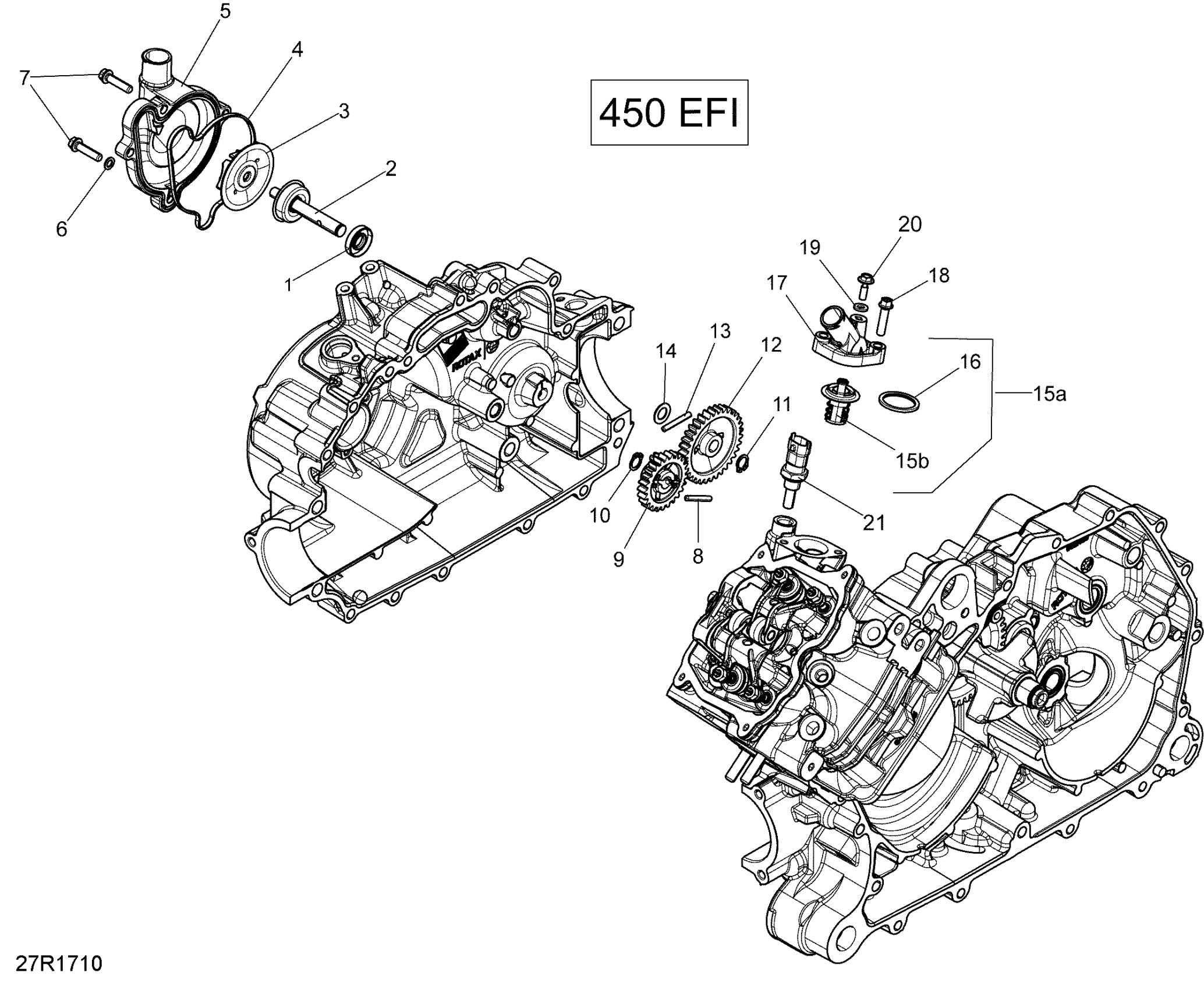

Can-Am OUTLANDER - 4X4 - STD - 450 EFI - 5AJA - Viper Red, 2018 ROTAX - Engine Cooling Diagram

Description

Price

Oil Seal

420650315

$11.65

Waterpump Shaft Ass'y

420620171

$73.99

Water Impeller

420222505

$19.99

Gasket

420630270

$11.05

Water Pump Housing

420222680

$62.49

Seal Washer

420230415

$1.79

Torx Flange Screw M6 X 25

420440234

$3.06

Needle Pin

420232431

$4.39

Idle Gear, 25 Teeth

420635191

$17.05

Circlip

504152282

$3.17

Circlip

504152282

$3.17

Idle Gear, 34 Teeth

420635620

$17.05

Needle Pin

420232431

$4.39

Thrust Washer

420827590

$4.01

15a

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$53.99

15b

Not Available As Spare Part - Friction Washer

Unavailable

Thermostat Gasket

420650300

$8.57

Thermostat Cover

420222696

$3.17

Torx Flange Screw M6 X 25

420440234

$3.06

Gasket Ring

420650255

$4.12

Screw M5 X 16

420441621

$3.17

Temperature Sensor

278002895

$39.99
