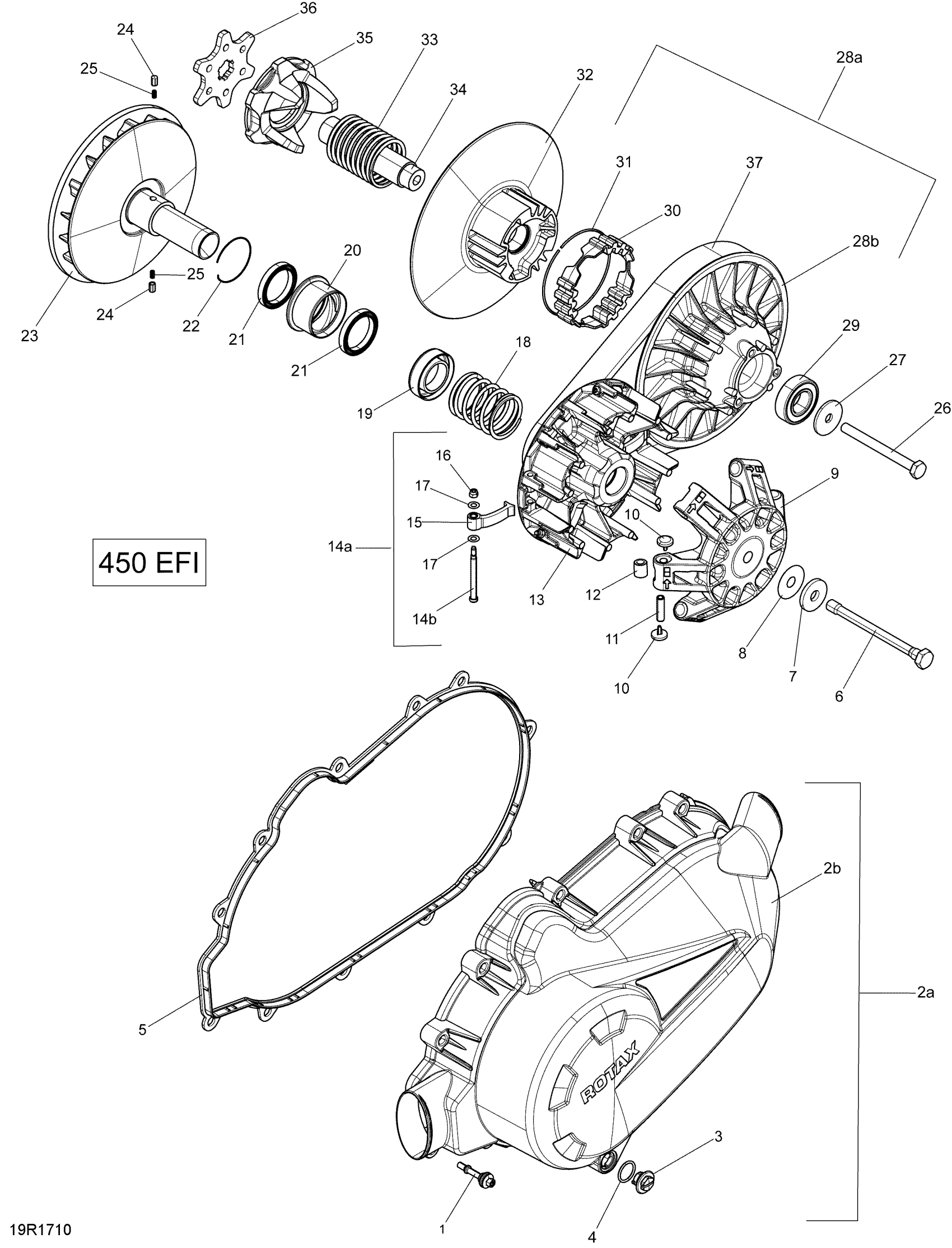

Can-Am OUTLANDER - 4X4 - STD - 450 EFI - 5AJA - Viper Red, 2018 ROTAX - CVT Diagram

#

Description
Price

1

Hex Screw M6 X 30

420440568

$8.58

2a

CVT Cover Ass'y | Includes 2a to 4

420612465

$291.49

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Cap

420441820

$11.63

4

O-Ring

420250050

$10.43

5

Gasket

420630292

$31.99

6

Hex. Screw M12 X 140

420641812

$29.49

7

Spring Washer

420627760

$11.65

8

Thrust Washer

420627920

$7.51

9

Governor Cup Ass'y | Includes 9 to 12

420280515

$369.99

10

Slider Shoe Set

420281296

$65.49

11

Roller Axle

417223257

$6.99

12

Roller

417223767

$11.59

13

Outer Haft

420280467

$329.99

14a

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$75.49

14b

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring

420238166

$35.99

19

Seat Spring

420627578

$35.99

20

Clutch

420257439

$169.99

21

Ball Bearing

420632377

$49.99

22

Retaining Ring

420245951

$5.31

23

Inner Half Ass'y

420280247

$381.49

24

Spring Sleeve

420229577

$18.49

25

Compression Spring

420239135

$6.59

26

Hex. Screw M10 X 110

420441485

$12.18

27

Thrust Washer

420627594

$13.49

28a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

28b

Not Available As Spare Part - Friction Washer

Unavailable

29

Ball Bearing

420932421

$28.49

30

Torque Gear

420660124

$23.49

31

Retaining Ring

420245911

$5.31

32

Inner Half Ass'y | Includes 33 to 35

420248233

$308.99

33

Compression Spring, Driven Pulley

420238173

$55.99

34

Driven Pulley Shaft

420220914

$129.99

35

Cam

420280250

$43.49

36

Cam Plate

420627586

$48.99

37

Drive Belt

422280283

$104.99
