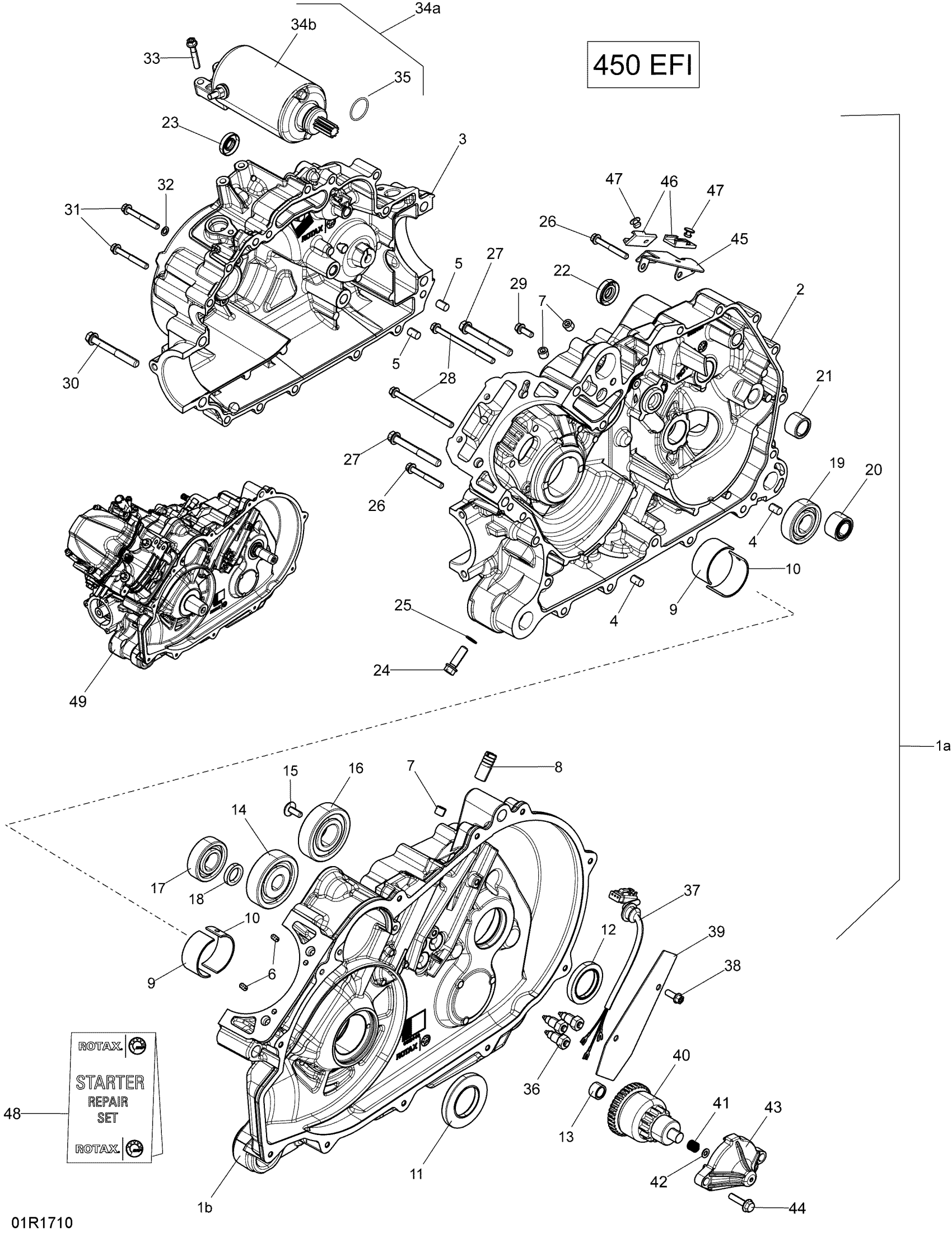

Can-Am OUTLANDER - 4X4 - STD - 450 EFI - 5AJA - Viper Red, 2018 ROTAX - Crankcase Diagram

#

Description
Price

1a

Housing Ass'y | Includes 1a to 22

420686324

$1,449.97

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

$3.07

5

Center Pin 8 X 12

420632010

$3.07

6

Drive Pin 5 X 10

420929650

$1.34

7

Plug Screw M10 X 1

420641323

$11.48

8

Hose Nipple

420256332

$16.89

9

Plain Bearing

420233960

$22.79

10

Plain Bearing

420233965

$22.79

11

Oil Seal

420630152

$16.12

12

Oil Seal

420950089

$18.43

13

Needle Bushing

420232482

$15.57

14

Ball Bearing

420632295

$45.12

15

Torx Screw M6 X 16

420241529

$1.56

16

Ball Bearing

420932822

$28.97

17

Ball Bearing 6204

420932433

$22.28

18

Oil Seal

420250130

$17.66

19

Ball Bearing 6204

420932433

$22.28

20

Needle Bushing

420232085

$36.09

21

Needle Bushing

420832240

$19.94

22

Oil Seal

420250450

$16.19

23

Oil Seal

420650315

$9.62

24

Torx Flange Screw M8 X 25

420440372

$4.00

25

Sealing Ring

420950141

$1.64

26

Torx Flange Screw M6 X 45

420440324

$0.81

27

Torx Flange Screw M6 X 20

420440207

$2.54

27

Torx Flange Screw M8 X 65

420440402

$7.23

28

Torx Flange Screw M6 X 85

420641228

$6.11

29

Torx Flange Screw M6 X 16

420440162

$3.11

30

Torx Flange Screw M8 X 65

420440402

$7.23

31

Torx Flange Screw M6 X 45

420440324

$0.81

32

Seal Washer

420230415

$1.77

33

Torx Flange Screw M6 X 35

420440274

$0.83

34a

Electric Starter | Includes 37 to 38

420684283

$252.69

34b

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Position Switch

420241856

$35.14

37

Wiring Harness

420265831

$50.74

38

Torx Flange Screw M6 X 16

420440162

$3.11

39

Cover Sheet

420251290

$10.98

40

Starter Drive Ass'y

420294811

$265.99

41

Spring

420938204

$5.29

42

Washer 5.3

420927574

$1.85

43

Reduction Cover Gear

420610891

$19.94

44

Hex. Screw M6 X 25

420240034

$1.56

45

Retaining Plate

420251491

$6.92

46

Connector Bracket

420260590

$11.98

47

Blind Rivet

420243010

$5.52

48

Gasket Set ( Engine)

420685125

$212.28

49

Longblock 427

390427412

$3,779.99
