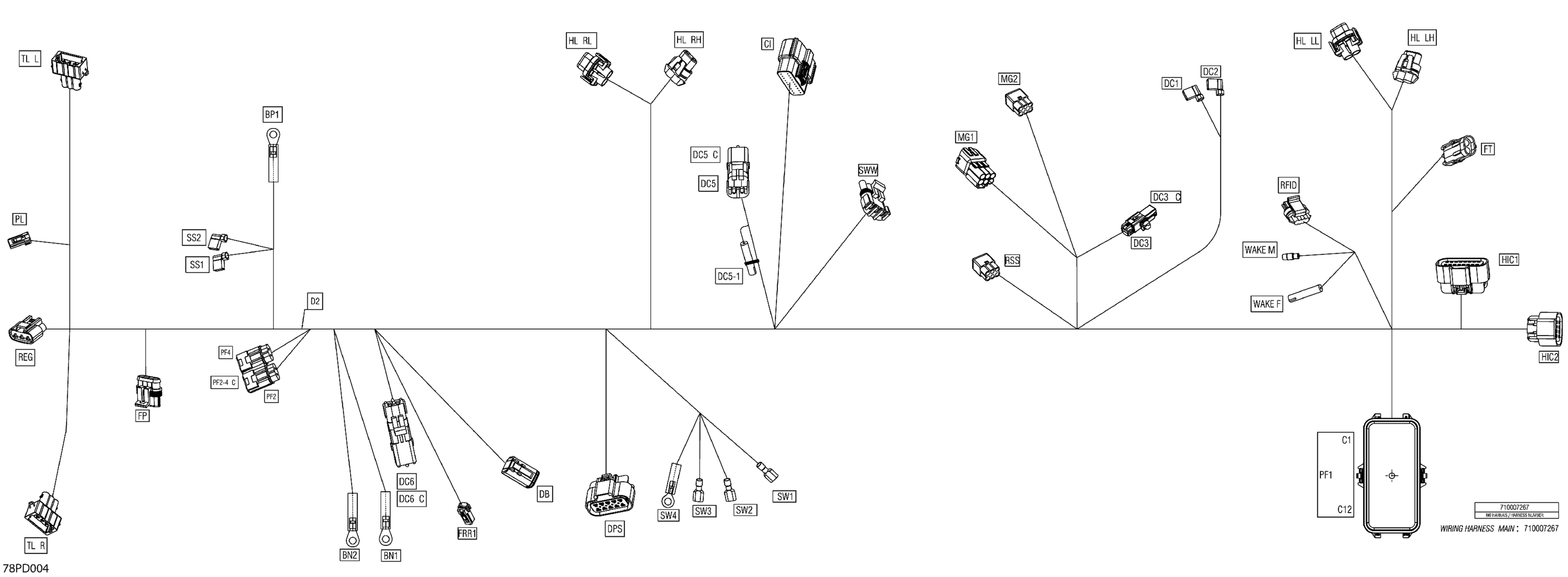

Can-Am Outlander MAX 450 EFI 6X6 - 4ZRA - DPS Package - Tundra Green, 2024 Electric - Main Harness Diagram

#

Description
Price

200

Main Wiring Harness

710007267

$827.58

BN1

Open Barrel Terminal

278001392

$4.00

BN2

Open Barrel Terminal

278001392

$4.00

BP1

Open Barrel Terminal

278001392

$4.00

CI

Female Housing 20 Circuits

278002858

$20.12

CI

Sealing Cap

278002860

$1.42

CI

Female Terminal

515178018

$0.78

CI

Female Terminal 22 AWG

515178349

$1.76

D2

Diode

409012700

$10.51

D5

Diode

409012700

$10.51

D6

Diode

409012700

$10.51

DB

Female Housing 6 Circuits

710002706

$16.22

DB

Lock

710002705

$3.61

DB

Female Terminal

710005438

$3.88

DB

Female Terminal

710005439

$4.15

DC1

Female Terminal

409010300

$4.00

DC2

Female Terminal

409010300

$4.00

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3 C

Male Housing, 2 Circuits

710000667

$7.25

DC5

Male Connector, 2 Circuits

278000220

$11.02

DC5

Wire Seal

278001065

$5.85

DC5

Female Terminal

278000223

$2.55

DC5 C

Clip

710000992

$3.88

DC5 C

Female Housing, 2 Circuits

278000217

$7.59

DC5 C

Wire Seal

278000216

$2.55

DC5-1

Insulated Sheath

278001007

$3.12

DC5-1

Female Terminal

710000421

$5.30

DC6

Male Connector, 2 Circuits

278000220

$11.02

DC6

Wire Seal

278001065

$5.85

DC6

Female Terminal

278000223

$2.55

DC6 C

Clip

710000992

$3.88

DC6 C

Female Housing, 2 Circuits

278000217

$7.59

DC6 C

Wire Seal

278000216

$2.55

DPS

Female Housing

710004989

$7.00

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal | PACKARD 12191221

710001860

$2.24

DPS

Female Terminal

278002187

$5.04

DPS

Terminal

710001873

$2.19

F11

Little Fuse, 30 Amperes

710000747

$6.77

F12

Little Fuse, 15 Ampere

710000745

$6.77

F14

Little Fuse, 15 Ampere

710000745

$6.77

F15

Little Fuse, 5 Amperes

710000742

$7.24

F4

Little Fuse, 5 Amperes

710000742

$7.24

F5

Little Fuse, 5 Amperes

710000742

$7.24

F6

Little Fuse, 5 Amperes

710000742

$7.24

F7

Little Fuse, 5 Amperes

710000742

$7.24

F8

Little Fuse, 5 Amperes

710000742

$7.24

F9

Fuse, 25 Amps

710002590

$17.88

FP

Female Housing, 4 Circuits

409209700

$12.97

FP

Wire Seal

278001013

$2.72

FP

Wire Seal

515176621

$6.79

FP

Female Terminal

278001014

$2.72

FP

Female Terminal

710001340

$4.96

FRR1

Female Housing, 2 Circuits

515175658

$14.90

FRR1

Female Terminal

710003896

$1.70

FT

Clip Bracket Connector (edge)

409210100

$1.94

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Male Terminal

409004300

$5.30

HIC1

Housing

710001226

$11.06

HIC1

Lock

710001222

$1.68

HIC1

Seal

710001233

$2.55

HIC1

Terminal

710001229

$2.93

HIC2

Housing

710001928

$14.52

HIC2

Lock

710001222

$1.68

HIC2

Seal

710001233

$2.55

HIC2

Seal Wire

710001332

$2.72

HIC2

Terminal

710001229

$2.93

HIC2

Terminal

710001228

$2.72

HL LH

Housing

710002278

$7.12

HL LH

Lock

710002279

$3.93

HL LH

Wire Seal

710001427

$2.09

HL LH

Female Terminal

278002578

$0.86

HL LL

Housing

710002578

$3.12

HL LL

Lock

710002584

$3.93

HL LL

Wire Seal

710001427

$2.09

HL LL

Female Terminal

278002578

$0.86

HL RH

Housing

710002278

$7.12

HL RH

Lock

710002279

$3.93

HL RH

Wire Seal

710001427

$2.09

HL RH

Female Terminal

278002578

$0.86

HL RL

Housing

710002578

$3.12

HL RL

Lock

710002584

$3.93

HL RL

Wire Seal

710001427

$2.09

HL RL

Female Terminal

278002578

$0.86

MG1

Male Terminal Housing, 6 Circuits

710000835

$15.64

MG1

Seal

409012300

$4.25

MG1

Wire Seal

710000402

$4.28

MG1

Male Terminal

409011300

$5.61

MG2

Female Housing, 6 Circuits

710000081

$7.88

MG2

Wire Seal

710000402

$4.28

MG2

Seal

409012300

$4.25

MG2

Female Terminal

409012100

$3.73

PF1

Fuse Box Base Ass´y

415129856

$41.57

PF1

Cap

710000840

$5.33

PF1

Wire Seal

278000999

$2.55

PF1

Seal

415128501

$1.51

PF1

Female Terminal

515177009

$4.96

PF1

Female Terminal

515177012

$4.96

PF1 C

Fuse Cover

710001026

$17.52

PF1 C

Logo Fuse Relay

710006657

$12.79

PF1 C

Foam

278002172

$5.33

PF1 C

Little Fuse, 5 Amperes

710000742

$7.24

PF1 C

Little Fuse, 15 Ampere

710000745

$6.77

PF1 C

Little Fuse, 30 Amperes

710000747

$6.77

PF2

Fuse

710001613

$7.24

PF2

Fuse Holder

278001325

$8.31

PF2

Female Terminal

710000113

$5.85

PF4

Fuse

710001613

$7.24

PF4

Fuse Holder

278001325

$8.31

PF4

Female Terminal

710000357

$5.85

PL

Female Housing, 2 Circuits

515175658

$14.90

PL

Female Terminal

710003896

$1.70

REG

Female Housing, 3 Circuits

710000879

$21.42

REG

Cap

710000882

$9.19

REG

Seal

710001932

$3.06

REG

Terminal

710001934

$4.51

RFID

Housing

710001161

$9.15

RFID

Lock

710001162

$3.18

RFID

Wire Seal

710001163

$5.10

RFID

Female Terminal

710001164

$5.92

RSS

Female Housing, 6 Circuits

710000081

$7.88

RSS

Cap

710000080

$6.28

RSS

Wire Seal

710000402

$4.28

RSS

Female Terminal

409012100

$3.73

RY1

Relay, 30 AMP

515176774

$18.63

RY2

Relay

715900824

$16.22

RY3

Relay, 30 AMP

515176774

$18.63

RY4

Relay

715900824

$16.22

RY5

Relay

715900824

$16.22

RY8

Relay

715900824

$16.22

SS1

Female Terminal

409010300

$4.00

SS2

Female Terminal

409010300

$4.00

SW1

Female Terminal

409010700

$4.93

SW2

Female Terminal

409010700

$4.93

SW3

Female Terminal

409010700

$4.93

SW4

Open Barrel

278000992

$1.79

SWW

Male Housing, 3 Circuits

278000273

$7.59

SWW

Wire Seal

278001065

$5.85

SWW

Female Terminal

278000223

$2.55

TL L

Connector, 3 Positions

710003167

$8.58

TL L

Seal

415128501

$1.51

TL L

Terminal

710002443

$0.85

TL R

Connector, 3 Positions

710003167

$8.58

TL R

Seal

415128501

$1.51

TL R

Terminal

710002443

$0.85

WAKE F

Insulated Sheath

278001007

$3.12

WAKE F

Female Terminal

710000421

$5.30

WAKE M

Insulated Sheath

278001008

$3.10

WAKE M

Female Terminal

278002261

$6.01
