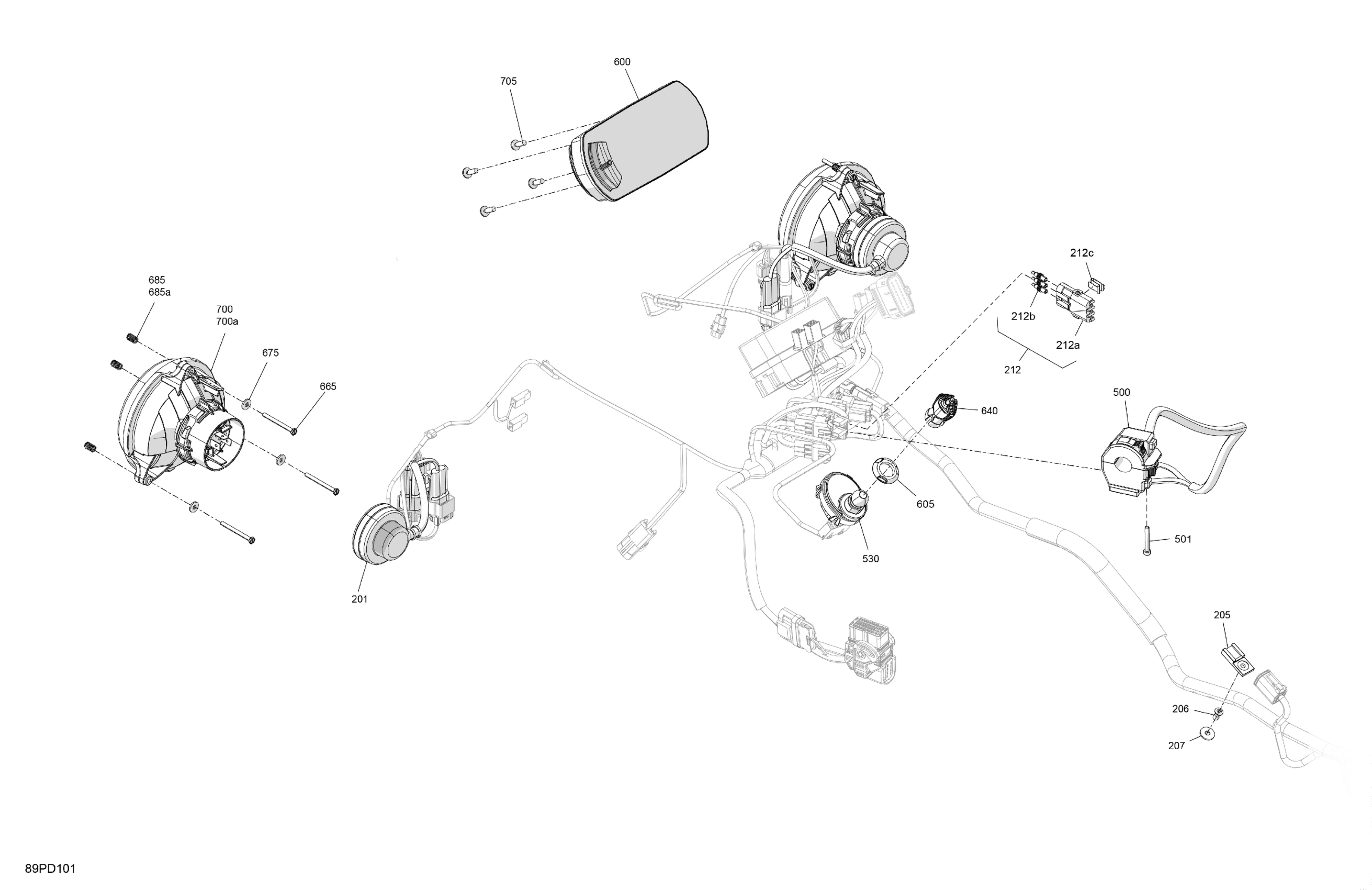

Can-Am Outlander MAX 450 EFI 6X6 - 4ZRA - DPS Package - Tundra Green, 2024 Electric - Front Section Diagram

Description

Price

201

Light Cable

710005780

$20.74

205

Clip

270000141

$8.33

206

Pop Rivet 3/16 X ,551

293150301

$0.64

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

500

Multifunction Switch

710008887

$64.58

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal DESS One Wire

515179305

$60.42

600

Multifunction Compact Gauge

710008298

$364.58

605

Specialized Nut

278004274

$2.72

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.17

685

Spring

517168600

$6.91

685a

Spring

517168600

$6.91

700

Low Beam

710003900

$106.12

700a

Bulb, 12V 35/35W

710000871

$32.28

705

Torx Screw K50 X 16

250000720

$1.39
