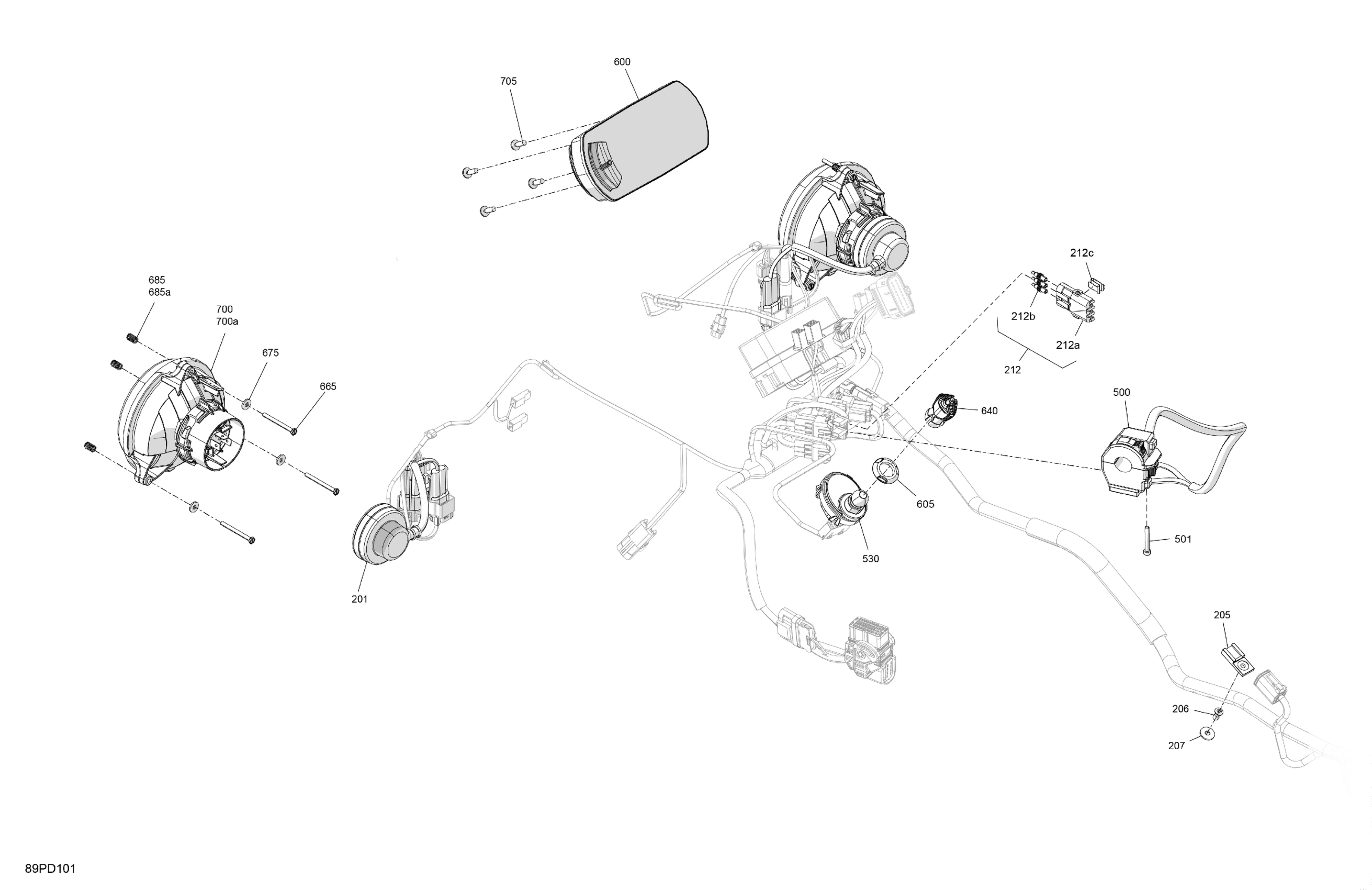

Can-Am Outlander MAX 450 EFI 6X6 - 4ZRA - DPS Package - Tundra Green, 2024 Electric - Front Section Diagram

Description

Price

201

Light Cable

710005780

$23.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16 X ,551

293150301

$0.77

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

212b

Wire Seal

278000216

$3.19

212c

Clip

710000992

$4.29

500

Multifunction Switch

710008887

$63.49

501

Socket Head Screw M5 X 35

205053588

$1.90

530

Terminal DESS One Wire

515179305

$74.99

600

Multifunction Compact Gauge

710008298

$389.99

605

Specialized Nut

278004274

$3.28

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

665

Hex. Screw K40 X 45

250000718

$2.11

675

Flat Washer

517225900

$0.18

685

Spring

517168600

$7.39

685a

Spring

517168600

$7.39

700

Low Beam

710003900

$114.99

700a

Bulb, 12V 35/35W

710000871

$34.99

705

Torx Screw K50 X 16

250000720

$1.69
