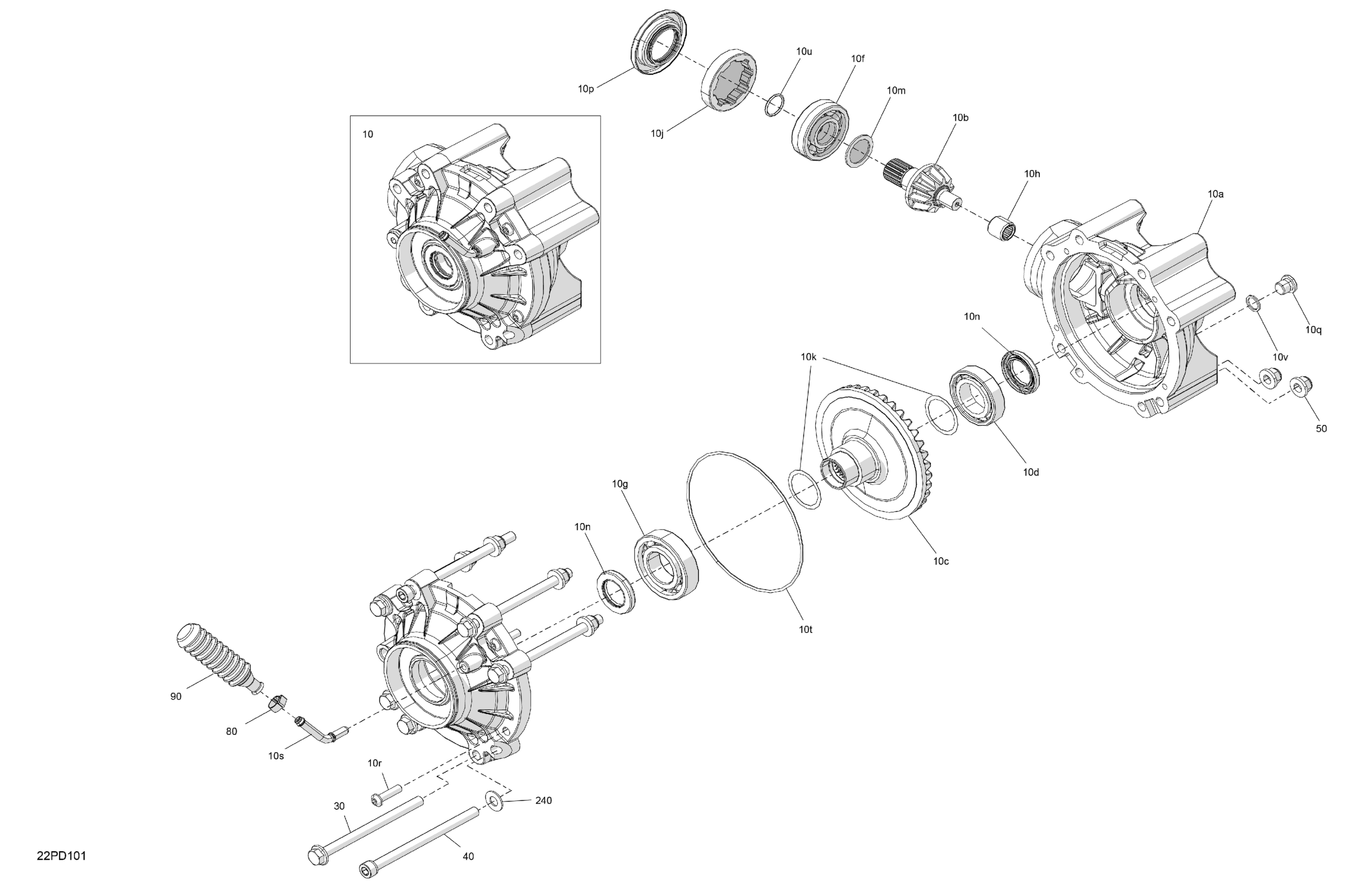

Can-Am International - Outlander MAX 450 EFI 6X6 - 4ZRB - DPS Package - Tundra Green, 2024 04- Drive - Final Drive Unit Diagram

#

Description
Price

10

Rear Drive Unit Ass'y | Includes 1000 to 1000u

705502370

Unavailable

10a

Rear Cover

705502389

Unavailable

10b

Pinion 10 Teeth

705502823

Unavailable

10c

Gear 36 Teeth

705502822

Unavailable

10d

Ball Bearing

705502736

Unavailable

10f

Ball Bearing

705502737

Unavailable

10g

Ball Bearing

705502738

Unavailable

10h

Needle Bearing

705502058

Unavailable

10j

Nut | 4X4

705401603

Unavailable

10k

Differential Shim 0.02 mm

705502060

Unavailable

10m

Pinion Gear Shim 1.67 mm

705502061

Unavailable

10n

Oil Seal

705501996

Unavailable

10p

Oil Seal

705402405

Unavailable

10q

Fill Level Plug | 4X4

705500504

Unavailable

10r

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

10s

Breather Tube

705501584

Unavailable

10t

Seal

705502064

Unavailable

10u

O-Ring

705502065

Unavailable

10v

Copper Washer | 4X4

705500506

Unavailable

30

Hex. Flange Screw M10 X 135

250001041

Unavailable

40

Socket Screw HD.din.912

231003587

Unavailable

50

Hex. Flange Elastic Nut M10

233201436

Unavailable

80

Oetiker Clamp

293650042

Unavailable

90

Rubber Bellow | 4X4

705400552

Unavailable

240

Washer

506152582

Unavailable
