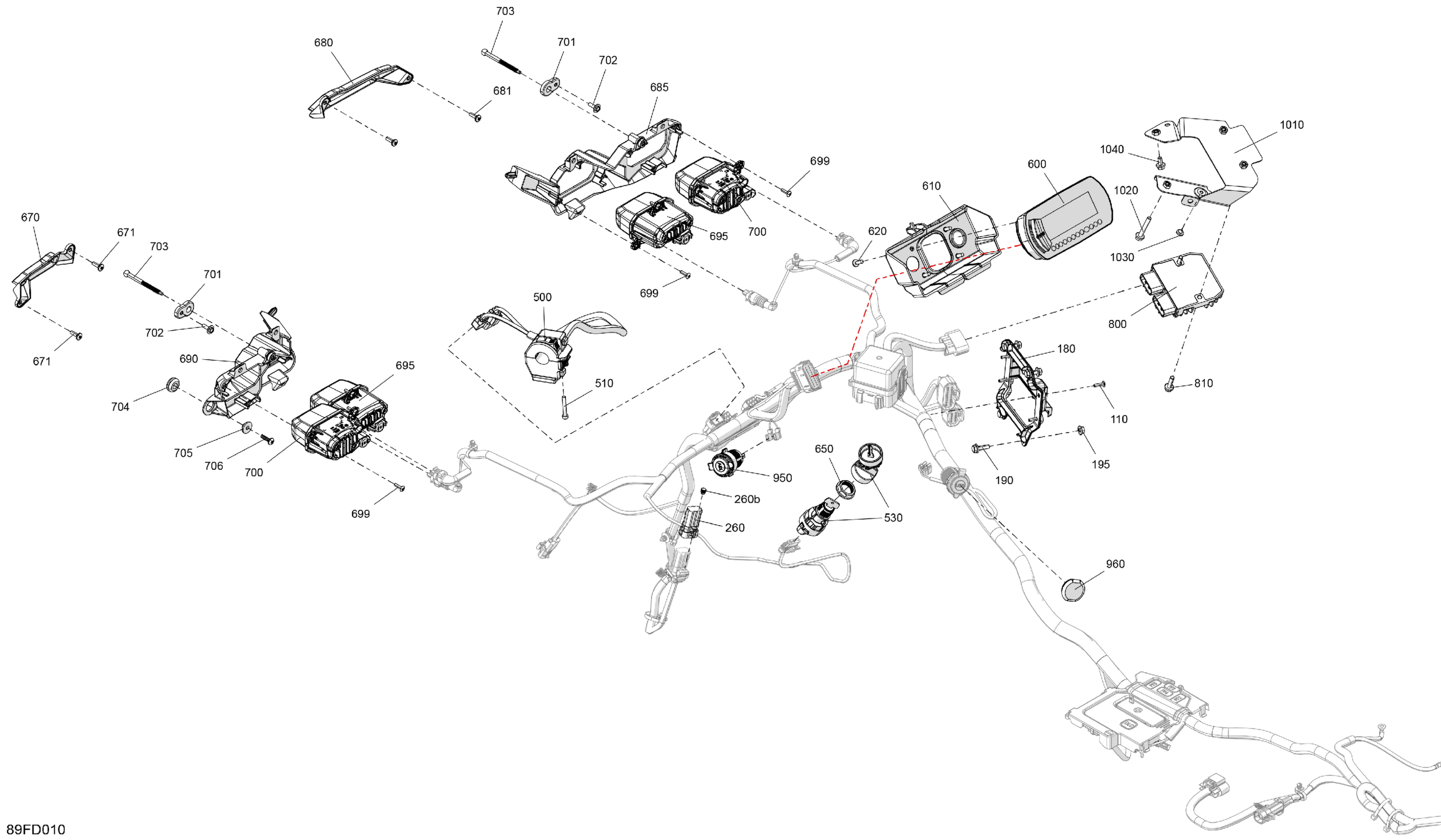

Can-Am Outlander 500 2X4 - 1KRB - STD Package - Legion Red, 2024 Electric - Front Section Diagram

Torx-Truss Pt K40 X 16

250000759

$2.11

Muffler Support

710006328

$10.49

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Nut M6

233161414

$2.11

Connector Cap | Includes 260 to 260b

710009143

$9.10

Plug

409013700

$4.55

Multifunction Switch

710008837

$80.49

Socket Head Screw M5 X 35

205053588

$1.90

Ignition Switch | Includes 530 to 530a

710008938

$63.49

Multifunction Compact Gauge

710008298

$389.99

Int Gauge Support

710007694

$6.09

Torx Screw K50 X 16

250000720

$1.69

Specialized Nut

710007923

$2.11

LH Cap

705015024

$11.99

Torx Screw K50 X 16

250000720

$1.69

RH Cap

705015025

$11.05

Torx Screw K50 X 16

250000720

$1.69

RH Front Headlight Support

710008319

$47.99

Support Pivot | Not Shown

517309049

$2.79

Threaded Rod | Not Shown

517309133

$7.55

Specialized Nut | Not Shown

517309134

$1.01

Compression Spring | Not Shown

517309058

$7.41

LH Front Headlight Support

710008318

$47.99

HIgh Beam Light

710006910

$129.99

Torx-Truss Pt K40 X 16

250000759

$2.11

Low Beam Light

710008088

$139.99

Ball Socket

293900157

$9.59

Screw PT Type K-50 X 16

250000959

$2.11

Ajustment Screw

710005837

$6.35

Overmolded Grommet

293720130

$4.69

Shoulder Bushing

710004749

$2.69

Torx Screw K50 X 16

250000720

$1.69

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Hex. Flange Screw M6 X 25

207562544

$1.69

DC Outlet

710001248

$37.99

Rubber Plug

710002858

$2.85

Voltage Regulator Support

710006542

$17.49

Hex. Flange Screw M6 X 40

207664044

$2.22

Rubber Stopper

293830229

$8.79

Hex. Flange Screw M6 X 12

207661244

$2.11
