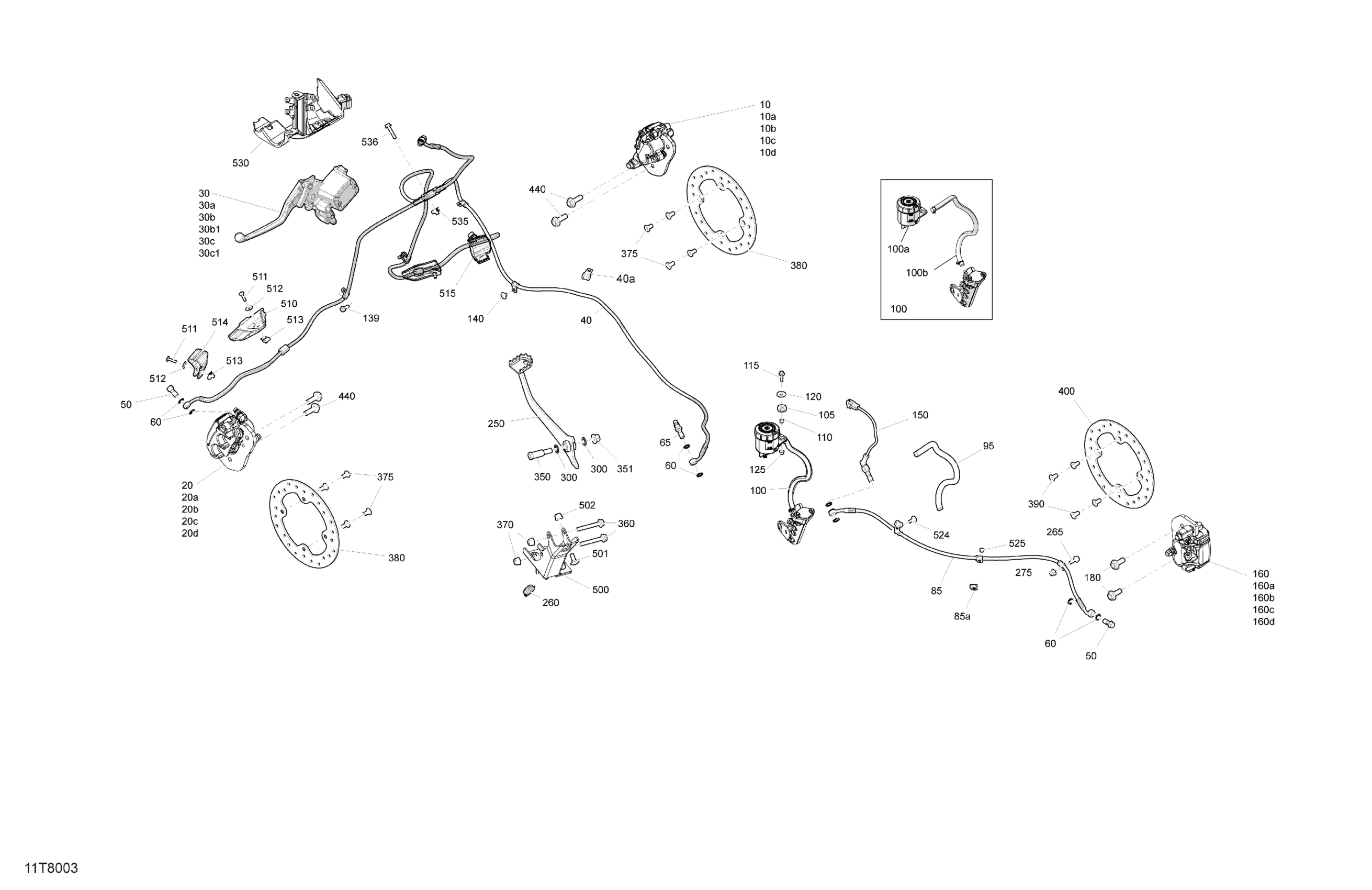

Can-Am OUTLANDER - 4X4 - DPS - 1000R - 5LJA - Orange Crush, 2018 Mechanic - Brake System Diagram

#

Description
Price

10

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$218.49

10a

RH Organic Brake Pad Kit

705601014

$40.37

10b

Pin Set

705601016

$9.98

10c

Bleeding Screw

705601017

$6.45

10d

Retaining Spring

705601018

$7.98

20

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$218.49

20a

Pin Set

705601016

$9.98

20b

Bleeding Screw

705601017

$6.45

20c

Retaining Spring

705601018

$7.98

20d

LH Organic Brake Pad Kit

705601015

$40.37

30

LH Front Master Cylinder | Includes 11 to 14

705601430

$239.97

30a

Lever Set

705601013

$59.97

30b

Clamp And Screw Kit

507032477

$22.79

30b1

Hex. Flange Screw M6 X 25

250000447

$2.06

30c

Cap Set

219800096

$20.89

30c1

Screw M4 X 20

415129356

$2.17

40

LH RH Front Hose

705601519

$166.24

40a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

60

Copper Washer

705601628

$4.34

65

Bleeding Screw

705601051

$11.98

85

RH Rear Hose

705601301

$39.42

85a

Clamp

293650256

$4.36

95

Tubing 10 MM 1000MM Long

219704407

$2.20

100

Rear Master Cylinder | Includes 21 to 23

705601273

$253.82

100a

Oil Tank

705601020

$36.89

100b

Oil Housing Hose

705601019

$15.35

105

Grommet

414036300

$2.22

110

Bushing

293900112

$9.56

115

Hex.Flange Screw M5 X 20

207652044

$1.56

120

Flat Washer

224060201

$1.15

125

Hex. Flange Elastic Nut M5

233251414

$1.66

139

Hex. Flange Screw M6 X 16

210261640

$1.74

140

Pop Rivet 3/16"

390406500

$0.70

150

Brake Switch

705601250

$56.52

160

RH Rear Brake Caliper | Includes 41 to 45

705602190

$219.97

160a

Pin Set

705601016

$9.98

160b

Bleeding Screw

705601017

$6.45

160c

Retaining Spring

705601018

$7.98

160d

RH Organic Brake Pad Kit

705601014

$40.37

180

Hex. Flange Screw M10 X 20

207502046

$1.74

250

Deep Black, Brake Pedal

705602163

$147.66

260

Brake Pedal Spring

705600792

$9.22

265

Hex. Flange Screw M6 X 20

207662044

$1.66

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300

O-Ring

293300144

$3.98

350

Shoulder Screw M10

250000513

$5.54

351

Hex. Flange Elastic Nut M10

233201436

$1.74

360

Hex. Flange Screw M8 X 55

207685544

$4.41

370

Hex. Flange Elastic Nut M8

233281414

$1.14

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

380

Disc Brake

705600999

$85.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

400

Disc Brake

705600999

$85.49

440

Hex. Flange Screw M10 X 25

207502546

$1.74

500

Brake Pedal Bracket

705202000

$36.89

501

Carriage Bolt, M8 X 20

207782044

$1.56

502

Hex. Flange Elastic Nut M8

233281414

$1.14

510

Front Hose Guard

705602016

$4.60

511

Torx Screw M5 X 20

250000724

$1.39

512

Washer M5

250200025

$0.61

513

Panel Nut M5 X 0.8

250000958

$3.48

514

LH Hose Bracket

705601048

$4.60

515

RH Hose Bracket

705601049

$4.60

524

Torx Screw M6 X 16

250000755

$0.72

525

Pop Rivet 3/16"

390402400

$0.25

530

Front Hose Bracket

705600983

$12.68

535

Panel Nut M6 X 1.0

250100198

$1.73

536

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61
