03- Mechanic - Brake System

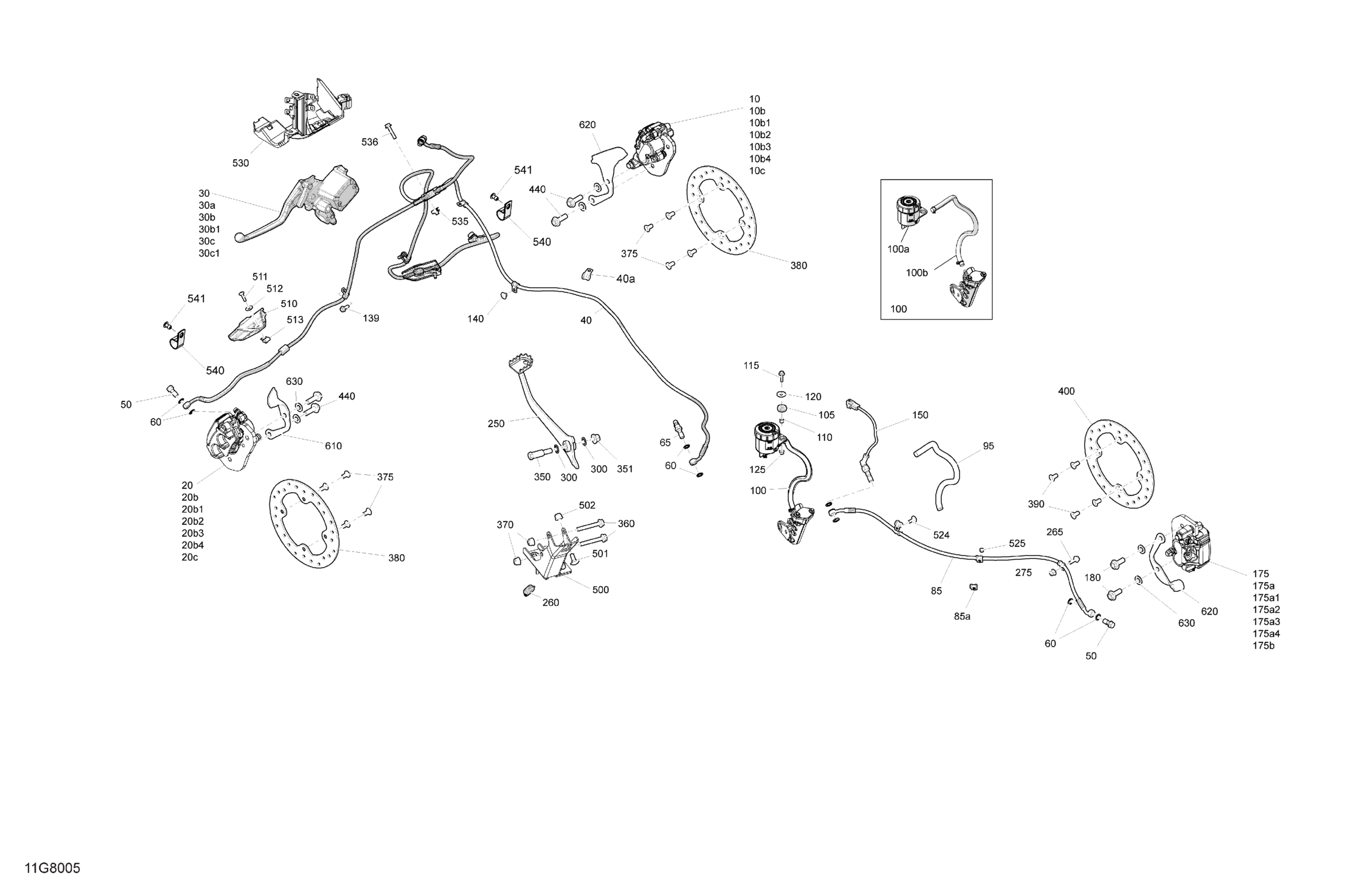

Can-Am International - OUTLANDER - 4X4 - XMR - 570 EFI - 3MJB - Can-Am Red, 2018 03- Mechanic - Brake System Diagram
#
10
RH Front Caliper Ass'y | Model XMR
703500967
Unavailable
10b
RH Front Caliper Ass'y | Includes 1 to 5
705600861
Unavailable
10b1
RH Organic Brake Pad Kit
705601014
Unavailable
10b2
Pin Set
705601016
Unavailable
10b3
Bleeding Screw
705601017
Unavailable
10b4
Retaining Spring
705601018
Unavailable
10c
RH Metallic Brake Pad Kit | Model XMR
715900249
Unavailable
20
LH Front Caliper Ass'y | Model XMR
703500968
Unavailable
20b
LH Front Caliper Ass'y | Includes 6 to 10
705600862
Unavailable
20b1
Pin Set
705601016
Unavailable
20b2
Bleeding Screw
705601017
Unavailable
20b3
Retaining Spring
705601018
Unavailable
20b4
LH Organic Brake Pad Kit
705601015
Unavailable
20c
LH Metallic Brake Pad Kit | Model XMR
715900248
Unavailable
30
LH Front Master Cylinder | Includes 11 to 14
705601430
Unavailable
30a
Lever Set
705601013
Unavailable
30b
Clamp And Screw Kit
507032477
Unavailable
30b1
Hex. Flange Screw M6 X 25
250000447
Unavailable
30c
Cap Set
219800096
Unavailable
30c1
Screw M4 X 20
415129356
Unavailable
40
Front Hose
705601524
Unavailable
40a
Clamp
293650256
Unavailable
50
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
60
Copper Washer
705601628
Unavailable
65
Bleeding Screw
705601051
Unavailable
85
RH Rear Hose
705601301
Unavailable
85a
Clamp
293650256
Unavailable
95
Tubing 10 MM 1000MM Long
219704407
Unavailable
100
Rear Master Cylinder | Includes 21 to 23
705601273
Unavailable
100a
Oil Tank
705601020
Unavailable
100b
Oil Housing Hose
705601019
Unavailable
105
Grommet
414036300
Unavailable
110
Bushing
293900112
Unavailable
115
Hex.Flange Screw M5 X 20
207652044
Unavailable
120
Flat Washer
224060201
Unavailable
125
Hex. Flange Elastic Nut M5
233251414
Unavailable
139
Hex. Flange Screw M6 X 16
210261640
Unavailable
140
Pop Rivet 3/16"
390406500
Unavailable
150
Brake Switch
705601250
Unavailable
175
RH Rear Caliper Ass'y | Includes 175 to 175d, Model XMR
703500969
Unavailable
175a
RH Rear Brake Caliper | Includes 41 to 45
705602190
Unavailable
175a1
Pin Set
705601016
Unavailable
175a2
Bleeding Screw
705601017
Unavailable
175a3
Retaining Spring
705601018
Unavailable
175a4
RH Organic Brake Pad Kit
705601014
Unavailable
175b
RH Metallic Brake Pad Kit | Model XMR
715900249
Unavailable
180
Hex. Flange Screw M10 X 25
207502546
Unavailable
250
Deep Black, Brake Pedal
705602163
Unavailable
260
Brake Pedal Spring
705600792
Unavailable
265
Hex. Flange Screw M6 X 20
207662044
Unavailable
275
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
300
O-Ring
293300144
Unavailable
350
Shoulder Screw M10
250000513
Unavailable
351
Hex. Flange Elastic Nut M10
233201436
Unavailable
360
Hex. Flange Screw M8 X 55
207685544
Unavailable
370
Hex. Flange Elastic Nut M8
233281414
Unavailable
375
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
380
Disc Brake
705600999
Unavailable
390
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
400
Disc Brake
705600999
Unavailable
440
Hex. Flange Screw M10 X 30, Scotch Grip
207503046
Unavailable
500
Brake Pedal Bracket
705202000
Unavailable
501
Carriage Bolt, M8 X 20
207782044
Unavailable
502
Hex. Flange Elastic Nut M8
233281414
Unavailable
510
Front Hose Guard
705602016
Unavailable
511
Torx Screw M5 X 20
250000724
Unavailable
512
Washer M5
250200025
Unavailable
513
Panel Nut M5 X 0.8
250000958
Unavailable
524
Torx Screw M6 X 16
250000755
Unavailable
525
Pop Rivet 3/16"
390402400
Unavailable
530
Front Hose Bracket
705600983
Unavailable
535
Panel Nut M6 X 1.0
250100198
Unavailable
536
Hex. Flange Screw M6 X 30, Scotch Grip
207563044
Unavailable
540
Open Clamp
518321570
Unavailable
541
Pop Rivet 3/16"
390402300
Unavailable
610
LH Deflector
705601214
Unavailable
620
RH Deflector
705601215
Unavailable
630
Flat Washer 10 mm
234001410
Unavailable
