02- Engine - Cooling

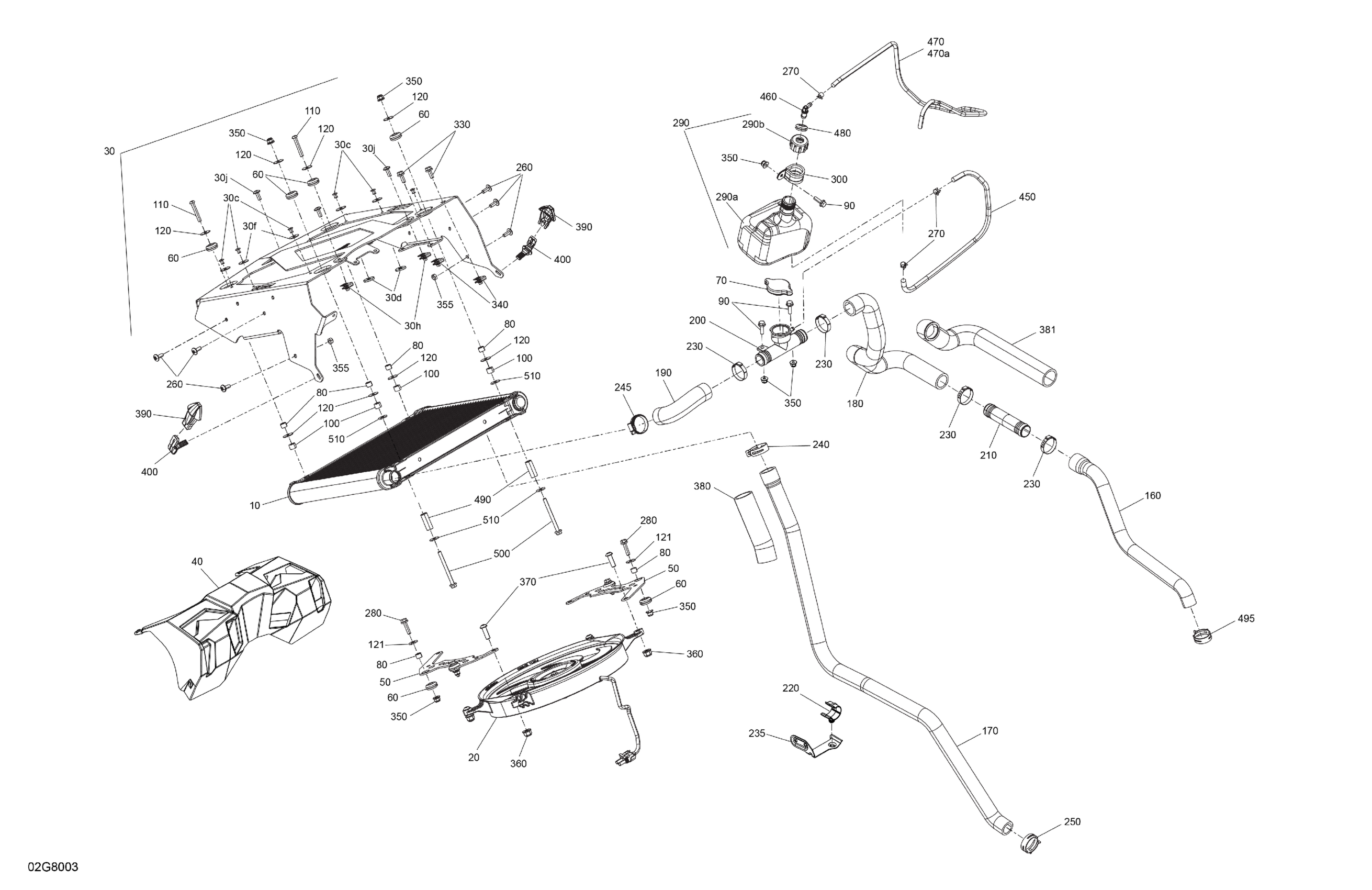

Can-Am International - OUTLANDER - 4X4 - XMR - 570 EFI - 3MJB - Can-Am Red, 2018 02- Engine - Cooling Diagram
#
10
Radiator
709200286
Unavailable
20
Fan Ass'y
709200567
Unavailable
30
Support Ass'y
709200556
Unavailable
30c
Rivet 3/16"
293150102
Unavailable
30d
Washer
517124300
Unavailable
30f
Rubber Washer 5 mm
250200024
Unavailable
30h
Panel Nut M6 X 1.0
250100198
Unavailable
30j
Torx Head Screw M6 X 16
250000717
Unavailable
40
Protection Cover Kit
703100399
Unavailable
50
Support
709200495
Unavailable
60
Grommet
293720062
Unavailable
70
Radiator Pressure Cap
709200207
Unavailable
80
Spacer
707000058
Unavailable
90
Hex. Flange Screw M6 X 20
207662034
Unavailable
100
Bushing
708001129
Unavailable
110
Torx Screw M6 X 30
235563054
Unavailable
120
Flat Washer
250200040
Unavailable
121
Flat Washer M6, Stainless
234062600
Unavailable
160
Hose | Engine 570
709200896
Unavailable
170
Hose
709200790
Unavailable
180
Hose, Polyurethane | Engine 570
709200559
Unavailable
190
Hose
709200891
Unavailable
200
Filler Neck
709200422
Unavailable
210
Nipple Tube 1"
709200448
Unavailable
220
Retainer
275500526
Unavailable
230
Gear Clamp
509000162
Unavailable
235
Hose Support
709200641
Unavailable
240
Norma Spring Clamp
293650166
Unavailable
245
Norma Gear Clamp
293650098
Unavailable
250
Norma Spring Clamp
293650166
Unavailable
260
Torx Head Screw M6 X 16
250000717
Unavailable
270
Spring Clamp
414554800
Unavailable
280
Hex. Flange Screw M6 X 25
207662544
Unavailable
290
Coolant Tank Ass'y | Includes 290 to 290b
703501190
Unavailable
290a
Coolant Tank Ass'y
709200624
Unavailable
290b
Cap
709200586
Unavailable
300
Hose Anchor
709200036
Unavailable
330
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
340
Panel Nut M6 X 1.0
250100198
Unavailable
350
Flange Elastic Nut M6
233261434
Unavailable
355
Elastic Stop Nut M6
232561414
Unavailable
360
Hex. Flange Elastic Nut M8
233281414
Unavailable
370
Button Head Torx Screw M8 X 25 S.Gr
250000757
Unavailable
380
Tubing 35 MM 1000MM Long
219704428
Unavailable
381
Tubing 35 MM 1000MM Long
219704428
Unavailable
390
End Piece Latch
517304075
Unavailable
400
Panel Latch
517303981
Unavailable
450
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
460
Male Connector
414580700
Unavailable
470
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
470a
Polyurethane Hose
293830193
Unavailable
480
Grommet
705003264
Unavailable
490
Bushing
705202499
Unavailable
495
Norma Spring Clamp
293650109
Unavailable
500
Hex. Flange Screw M6 X 70
207667044
Unavailable
510
Flat Washer M6, Stainless
234062600
Unavailable
