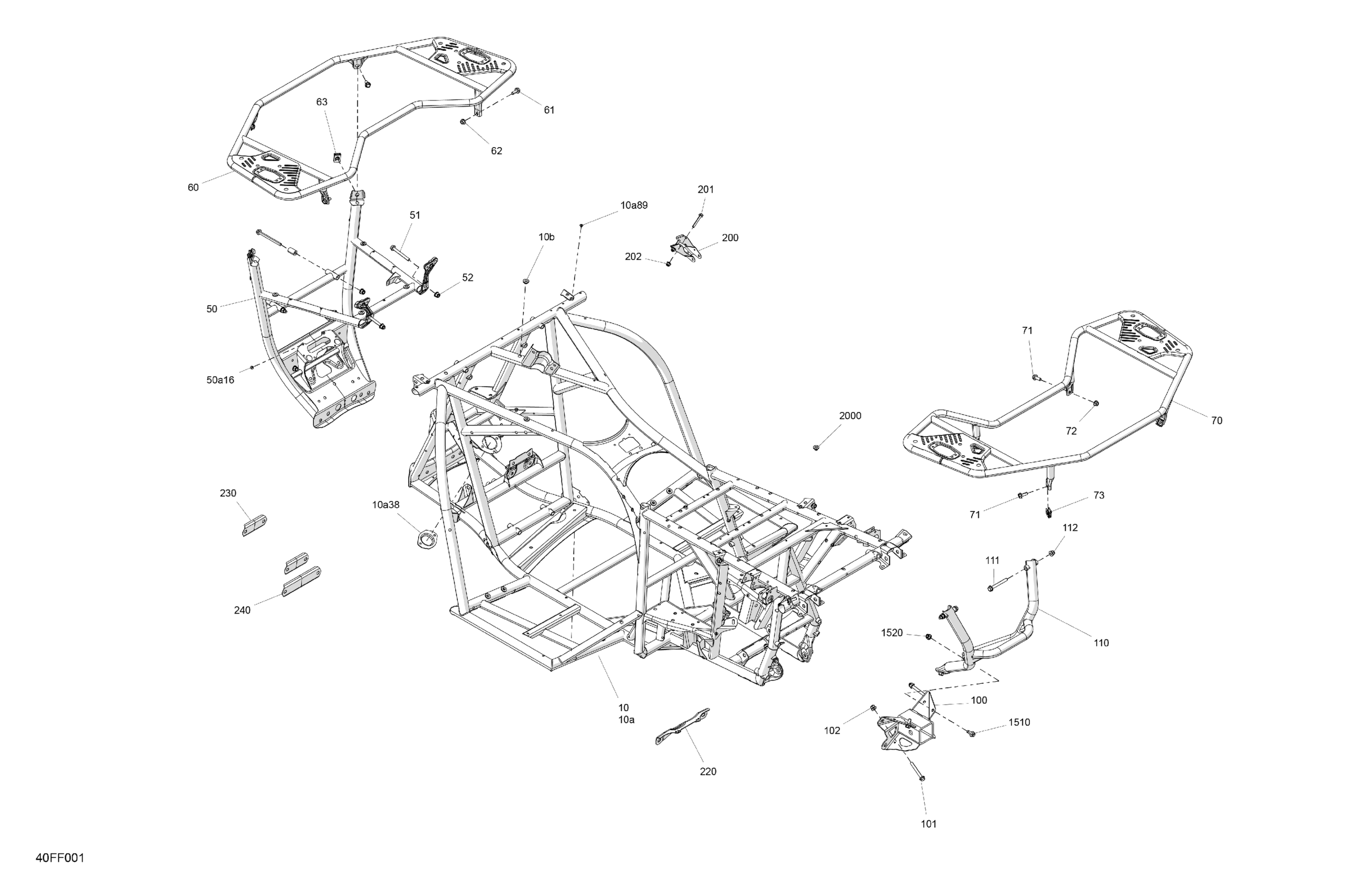

Can-Am OUTLANDER - 2X4 - STD - 500 - 1KTB - Legion Red - 2026 Frame - System Diagram

#

Description
Price

10

Chassis Ass'y | Includes 10 to 10b

715010932

$1.00

10a

Not Available As Spare Parts

XXX

Unavailable

10a38

Lower Bearing Support

709402713

$43.99

10a89

Pop Rivet 3/16 X ,425

293150293

$0.35

10b

Threaded Insert

293450383

$2.61

50

Front Bumper | Includes 50 to 50a16

705208429

$264.99

50a16

Pop Rivet 3/16 X ,425

293150293

$0.35

51

Hex. Flange Screw M8 X 70

207687044

$7.41

52

Hex. Flange Elastic Nut M8

233281414

$1.47

60

Deep Black, Front Luggage Rack

705208148

$264.99

61

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

62

Hex. Flange Nut M8

233181414

$1.15

63

Panel Nut M8 X 1.25

250100236

$4.13

70

Deep Black, Rear Luggage Rack

705208247

$248.99

71

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

72

Hex. Flange Nut M8

233181414

$1.15

73

Panel Nut M8 X 1.25

250100236

$4.13

100

Trailer Hitch | Includes 100 to 100a3

705211925

Unavailable

101

Hex. Flange Screw, M8 X 65

207686544

$13.16

102

Hex. Flange Elastic Nut M8

233281414

$1.47

110

Deep Black, Rear Chassis Reinforcement

705212173

Unavailable

111

Hex. Flange Screw M8 X 70

207687044

$7.41

112

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Lever Support

705208228

$12.49

201

Hex. Flange Screw M6 X 45

207664544

$1.46

202

Hex. Flange Elastic Nut M6

233261466

$2.00

220

Rear Suspension Arm Reinforcement

705209026

$5.29

230

Front Upper Suspension Arm Reinforcement

705212296

$5.49

240

Front Lower Suspension Arm Reinforcement

705211664

$5.49

1510

Hex. Flange Screw M8 X 20

207682044

$1.15

1520

Hex. Flange Elastic Nut M8

233281414

$1.47

2000

Threaded Insert

293450383

$2.61
