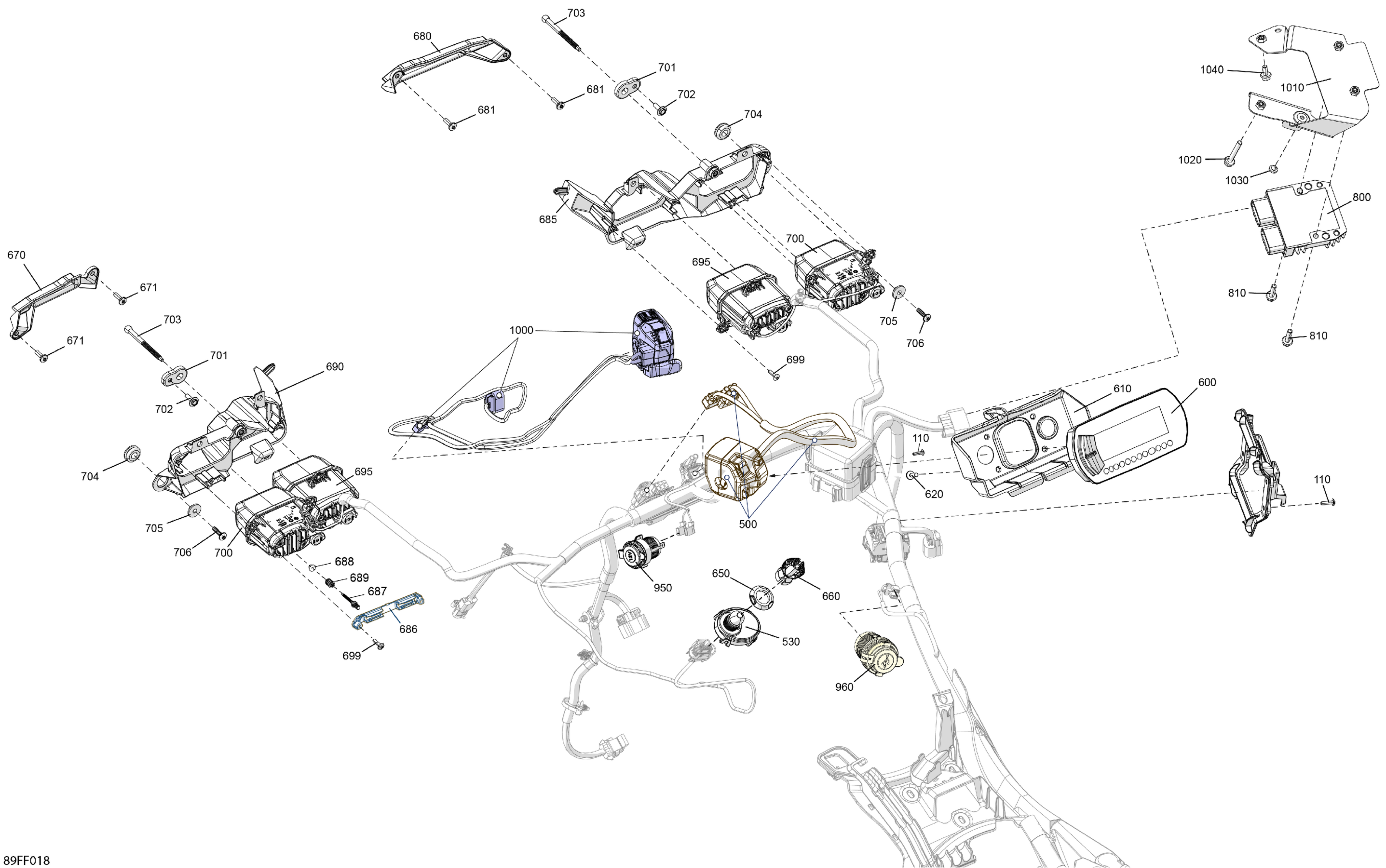

Can-Am Off-Road International - OUTL-PRO - 4X4 - XU - HD7 - 1MTF - Compass Green - 2026 08- Electric - Front Section Diagram

Description

Price

110

Torx-Truss Pt K40 X 16

250000759

$2.11

500

LH Front Switch Housing

710006143

$289.99

530

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

600

Multifunction Compact Gauge

710008298

$389.99

610

Int Gauge Support

710007694

$6.09

620

Torx Screw K50 X 16

250000720

$1.69

650

Specialized Nut

278004274

$3.28

660

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

670

LH Cap

705015024

$11.99

671

Torx Screw K50 X 16

250000720

$1.69

680

RH Cap

705015025

$11.05

681

Torx Screw K50 X 16

250000720

$1.69

685

RH Front Headlight Support

710009678

$47.99

686

Support Pivot | Not Shown

517309049

$2.79

687

Threaded Rod | Not Shown

517309133

$7.55

688

Specialized Nut | Not Shown

517309134

$1.01

689

Compression Spring | Not Shown

517309058

$7.41

690

LH Front Headlight Support

710009677

$44.99

695

HIgh Beam Light

710006910

$129.99

699

Torx-Truss Pt K40 X 16

250000759

$2.11

700

Low Beam Light

710008088

$139.99

701

Ball Socket

293900157

$9.59

702

Screw PT Type K-50 X 16

250000959

$2.11

703

Ajustment Screw

710005837

$6.35

704

Grommet

705003264

$4.09

705

Shoulder Bushing

710004749

$2.69

706

Torx Screw K50 X 16

250000720

$1.69

800

Voltage Regulator

710010539

$103.99

810

Hex. Flange Screw M6 X 25

207562544

$1.69

950

DC Outlet

710001248

$37.99

960

USB Connector

710008594

$50.99

1000

Accelerator Hand Lever

710010573

$309.99

1010

Voltage Regulator Support

710009942

$17.49

1020

Hex. Flange Screw M6 X 40

207664044

$2.22

1030

Rubber Stopper

293830229

$8.79

1040

Hex. Flange Screw M6 X 12

207661244

$2.11
