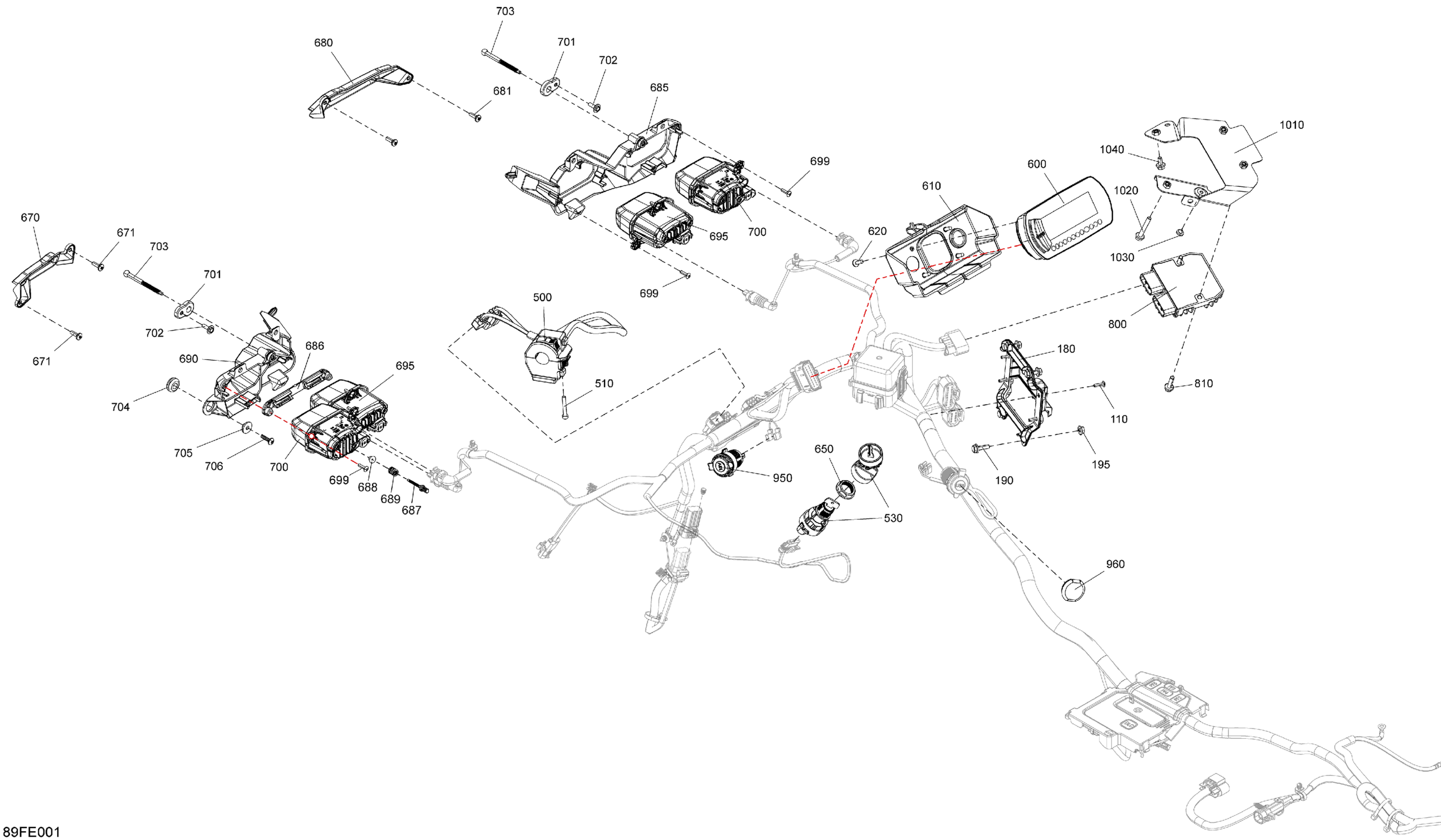

Can-Am OUTLANDER - 4X4 - STD - 500 - 1BSA - Granite Grey - 2025 Electric - Front Section Diagram

Description

Price

110

Torx-Truss Pt K40 X 16

250000759

$2.11

180

Muffler Support

710006328

$10.49

190

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

195

Hex. Flange Nut M6

233161414

$2.11

500

Multifunction Switch

710008837

$80.49

510

Socket Head Screw M5 X 35

205053588

$1.90

530

Ignition Switch | Includes 530 to 530a

710008938

$63.49

600

Multifunction Compact Gauge

710008298

$389.99

610

Int Gauge Support

710007694

$6.09

620

Torx Screw K50 X 16

250000720

$1.69

650

Specialized Nut

710007923

$2.11

670

LH Cap

705015024

$11.99

671

Torx Screw K50 X 16

250000720

$1.69

680

RH Cap

705015025

$11.05

681

Torx Screw K50 X 16

250000720

$1.69

685

RH Front Headlight Support

710009678

$47.99

686

Support Pivot | Not Shown

517309049

$2.79

687

Threaded Rod | Not Shown

517309133

$7.55

688

Specialized Nut | Not Shown

517309134

$1.01

689

Compression Spring | Not Shown

517309058

$7.41

690

LH Front Headlight Support

710009677

$44.99

695

HIgh Beam Light

710006910

$129.99

699

Torx-Truss Pt K40 X 16

250000759

$2.11

700

Low Beam Light

710008088

$139.99

701

Ball Socket

293900157

$9.59

702

Screw PT Type K-50 X 16

250000959

$2.11

703

Ajustment Screw

710005837

$6.35

704

Grommet

705003264

$4.09

705

Shoulder Bushing

710004749

$2.69

706

Torx Screw K50 X 16

250000720

$1.69

800

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

810

Hex. Flange Screw M6 X 25

207562544

$1.69

950

DC Outlet

710001248

$37.99

960

Rubber Plug

710002858

$2.85

1010

Voltage Regulator Support

710009942

$17.49

1020

Hex. Flange Screw M6 X 40

207664044

$2.22

1030

Rubber Stopper

293830229

$8.79

1040

Hex. Flange Screw M6 X 12

207661244

$2.11
