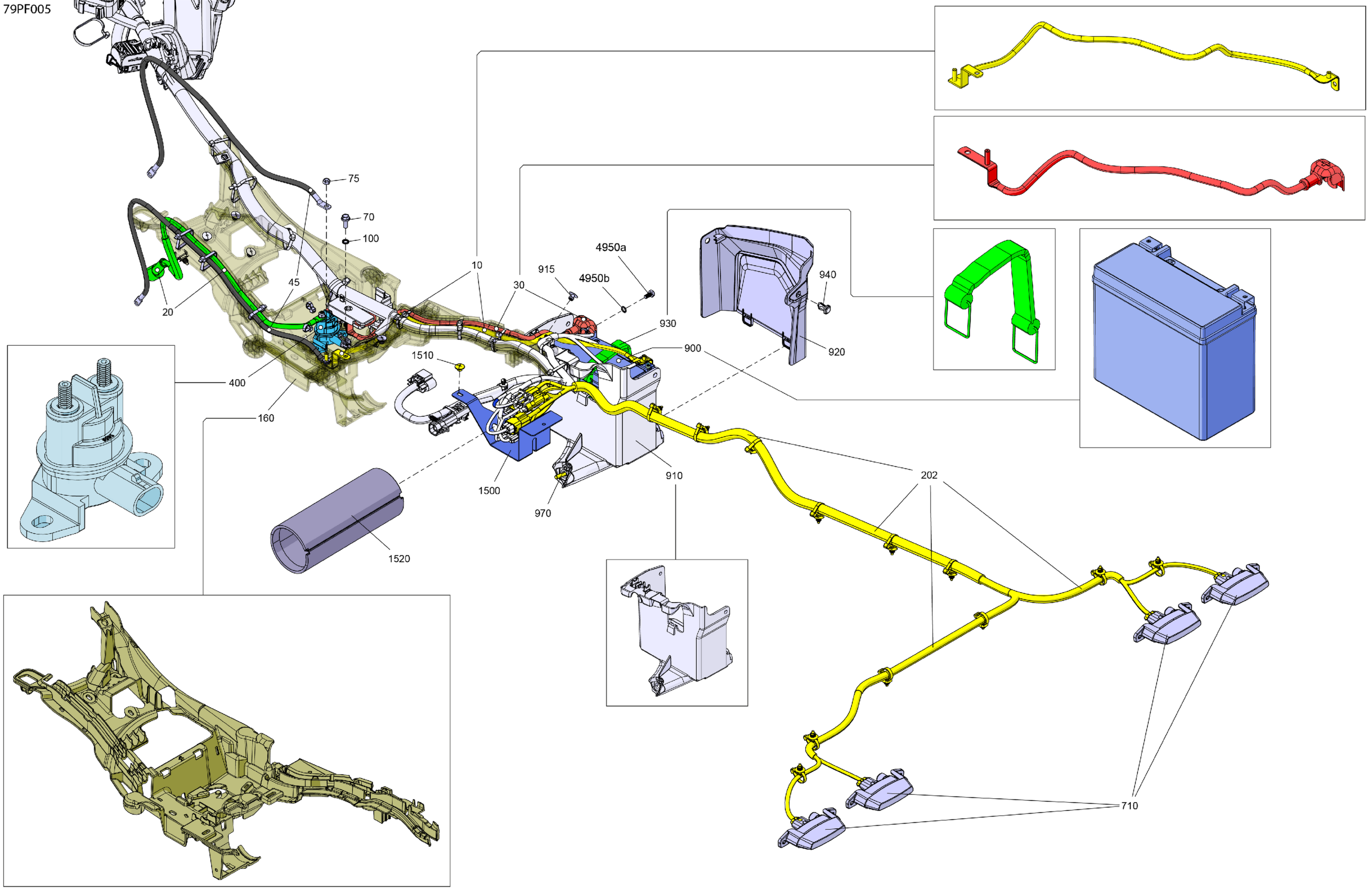

Can-Am OUT-MAX - 6X6 - DPS - 850 EFI - 2HTA - Granite Grey - 2026 Electric - Rear Section Diagram

Negative Cable

710009369

$36.89

Positive Cable

710011179

$46.12

Positive Cable

710009370

$46.12

Negative Cable

710009388

$36.89

Hex. Flange Screw M6 X 16

207661646

$1.00

Elastic Stop Nut M6

232561414

$1.55

External Serrated Lock Washer 6 mm

234461608

$0.92

Starter Relay Support

710009950

$39.97

Taillight Wiring Harness

710009700

$92.28

Taillight Wiring Harness

710009700

$92.28

Starter Relay

278003012

$35.07

Tail Light

710010031

$59.97

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$101.37

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$101.37

Battery Support

710008195

$46.12

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

Battery Cover

710011427

Unavailable

Fuel Tank Strap

293850087

$17.66

Tuflok Plastic Rivet

293150230

$1.21

Hex. Flange Screw M6 X 25

207562544

$1.39

Wiring Harness Support

710010954

$23.05

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

Sheath | Not Shown

710004193

$19.20

Screw | Not Shown

710009084

$1.52

Washer | Not Shown

710009082

$1.02

Elastic Stop Nut M6, Brass

232561200

$3.51
