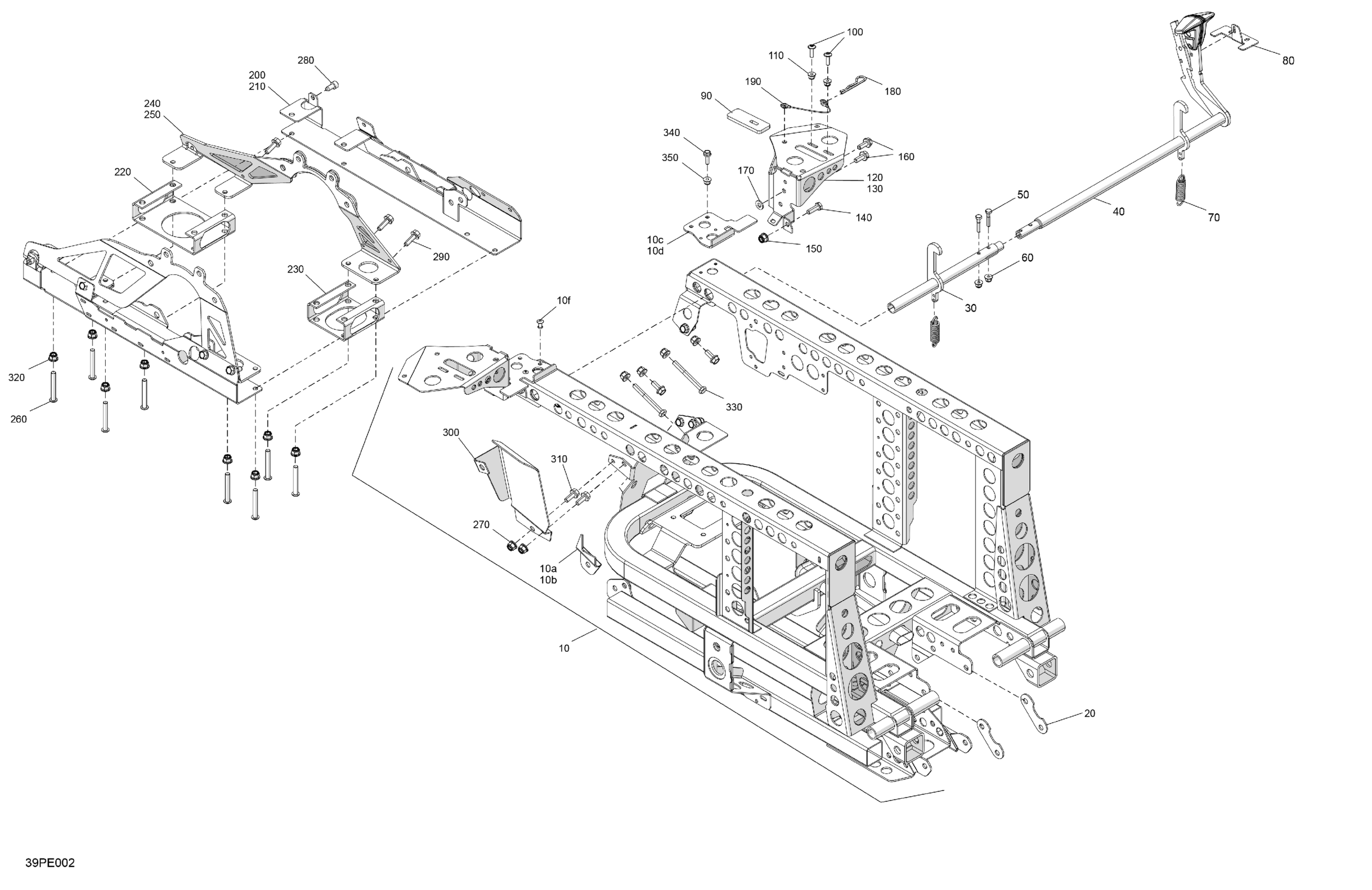

Can-Am OUT-MAX - 6X6 - XT - 1000 EFI - 5ZSA - Boreal Green - 2025 Frame - Rear Part Diagram

#

Description
Price

10

Rear Frame | Includes 15 to 15e

705204598

$1,019.99

10a

LH Grip Plate

605356426

$19.20

10b

RH Grip Plate

605356425

$19.20

10c

LH Cargo Support

705204600

$15.35

10d

RH Cargo Support

705204601

$15.35

10f

Stavex Rivet

293150144

$0.77

20

Support Plate

705203564

$24.49

30

LH Tube

705203669

Unavailable

40

RH Tube

705203670

$111.51

50

Hex Cap Screw DIN.931

250000480

$5.22

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

70

Spring

415107100

$6.20

80

Lever Support

705203834

$15.35

90

Rubber Collar

708301280

$17.66

100

Torx Screw M6 X 20

250000722

$1.34

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

120

LH Rear Fender Support

705203611

$78.99

130

RH Rear Fender Support

705203612

$78.99

140

Hexagonal Screw

250000556

$2.06

150

Hex. Flange Elastic Nut M8

233281414

$1.14

160

Hex. Flange Screw M8 X 20

207682046

$1.82

170

Washer

503192494

$3.11

180

Cotter Spring

505073670

$2.06

190

Retainer Cable

293750069

$13.77

200

LH Lower Beam Reinforcement

705203724

$41.99

210

RH Lower Beam Reinforcement

705203725

$41.99

220

Front Support Plate

705203726

$96.99

230

Rear Support Plate

705203727

$96.99

240

LH Differential Support Reinforcement

705203728

$214.99

250

RH Differential Support Reinforcement

705203729

$214.99

260

Torx Screw Scotch Grip M8X60

250000777

$7.28

270

Hex. Elastic Flange Nut M8

233281416

$1.25

280

Forming Screw HD.DIN.7500E

250000678

$3.85

290

Hex Forming Screw DIN.7500D

250000376

$7.31

300

Heat Shield

707601726

$23.49

310

Hex. Flange Screw M8 X 20

207682046

$1.82

320

Hex. Elastic Flange Nut M8

233281416

$1.25

330

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

340

Hex. Flange Screw M6 X 20

207662054

$0.83

350

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
