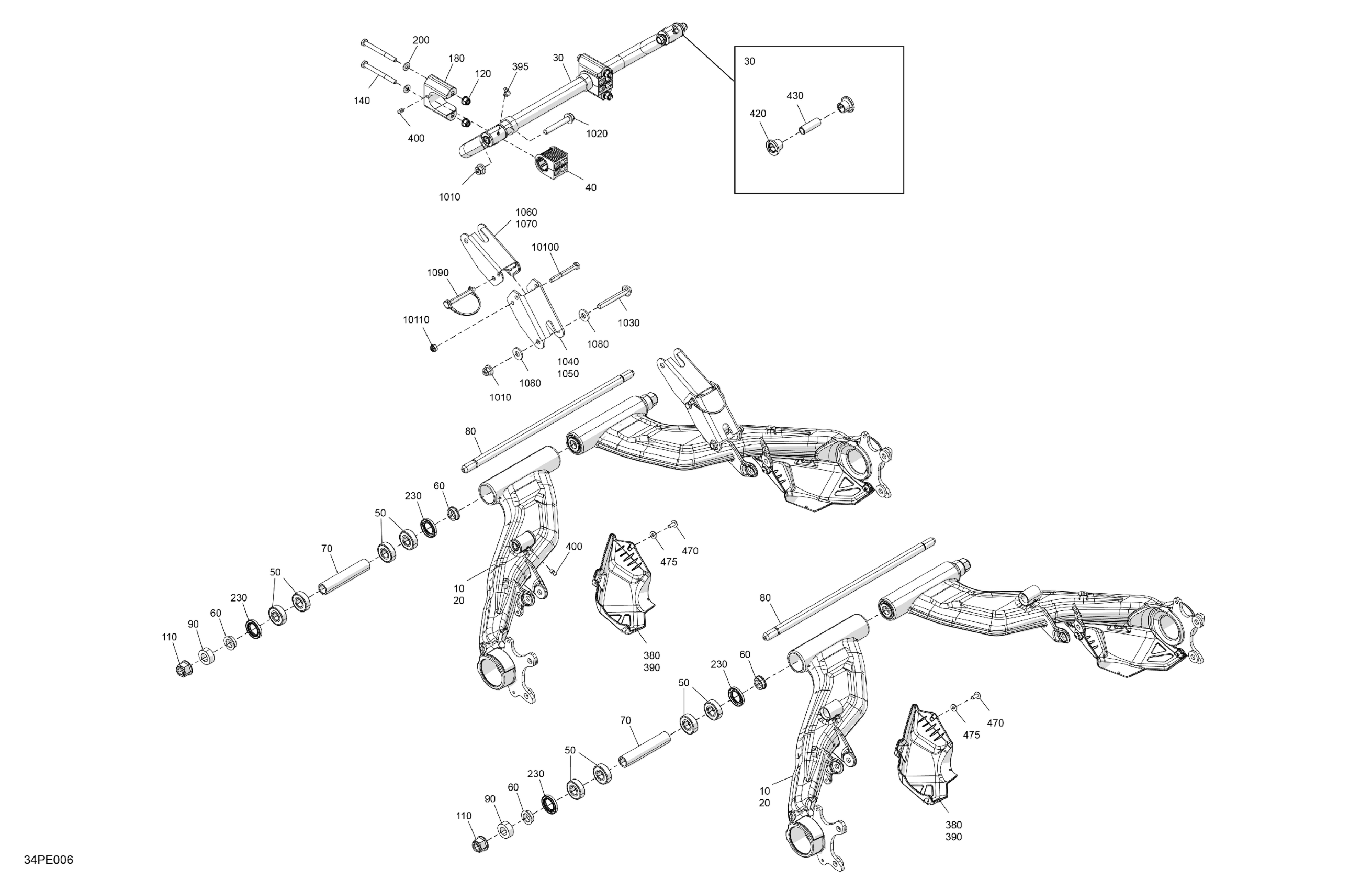

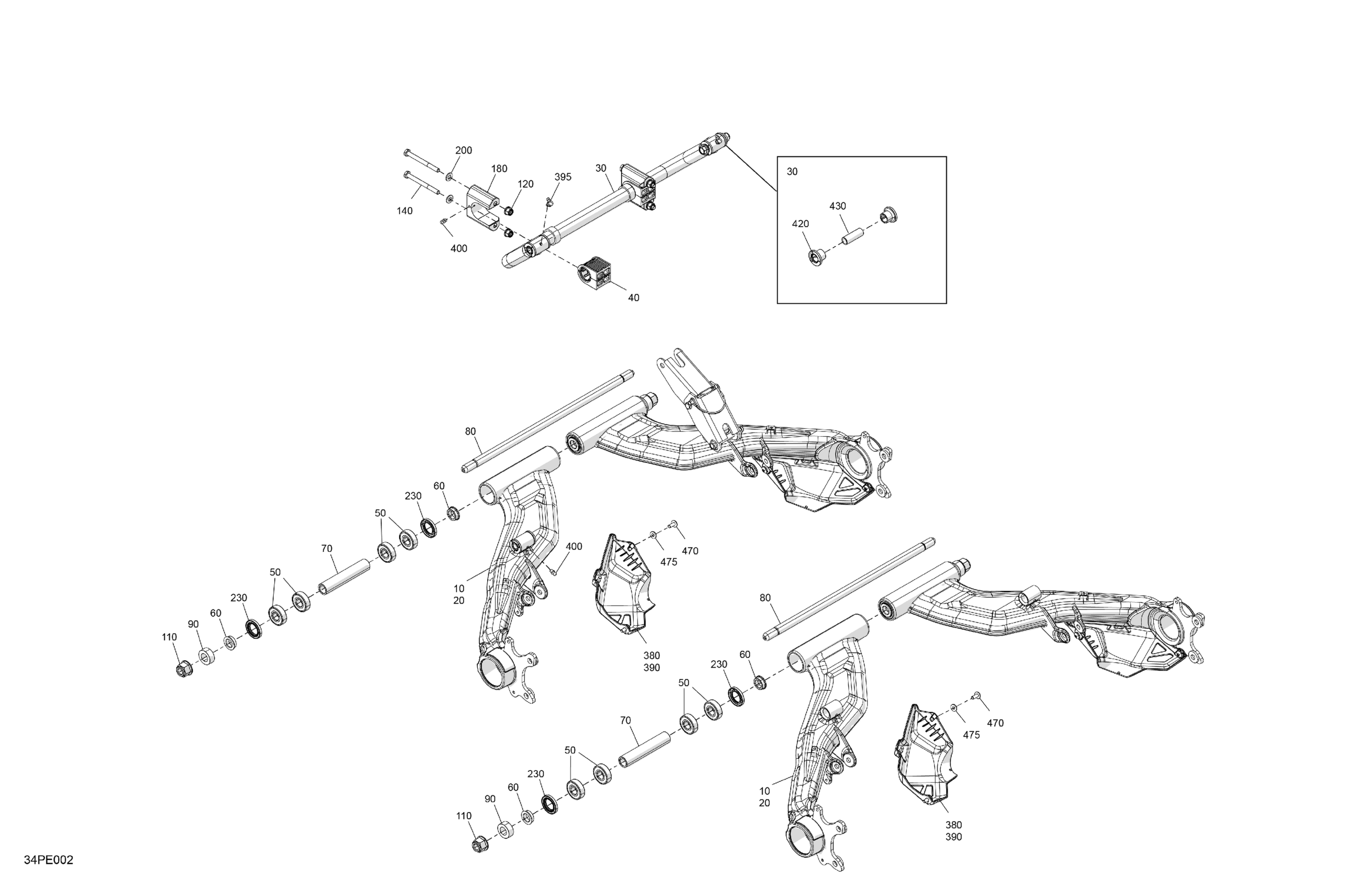

Can-Am OUT-MAX - 6X6 - XT - 1000 EFI - 5ZSA - Boreal Green - 2025 Suspension - Rear Components Diagram

Description

Price

LH Swing Arm

706003041

$290.74

RH Swing Arm

706003042

$290.74

Sway Bar

706003050

$124.58

Stabilizer Bar Bushing

706004641

$9.22

Ball Bearing

293350145

$12.91

Spacer

706001282

$10.98

Spacer

706002259

$27.66

Axial Pivot M16

706001664

$69.20

Flat Washer M17

250200112

$6.34

110

Hex. Flange Elastic Nut M16

233211466

$1.53

120

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Screw M8 X 85

250001035

$1.46

180

Bushing Holder

706001099

$31.51

200

Flat Washer 8 mm

234081410

$0.69

230

Seal

293200144

$4.60

380

LH Protector | All Except Packages XXC & Hunting Edition

706003052

$15.22

390

RH Protector | All Except Packages XXC & Hunting Edition

706003053

$15.22

395

Grease Fitting 90°

293550056

$1.37

400

Grease Fitting

250000315

$4.82

420

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

430

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

470

Tork Screw M6 X 16

250000534

$1.74

475

Flat Washer

250200039

$0.72
