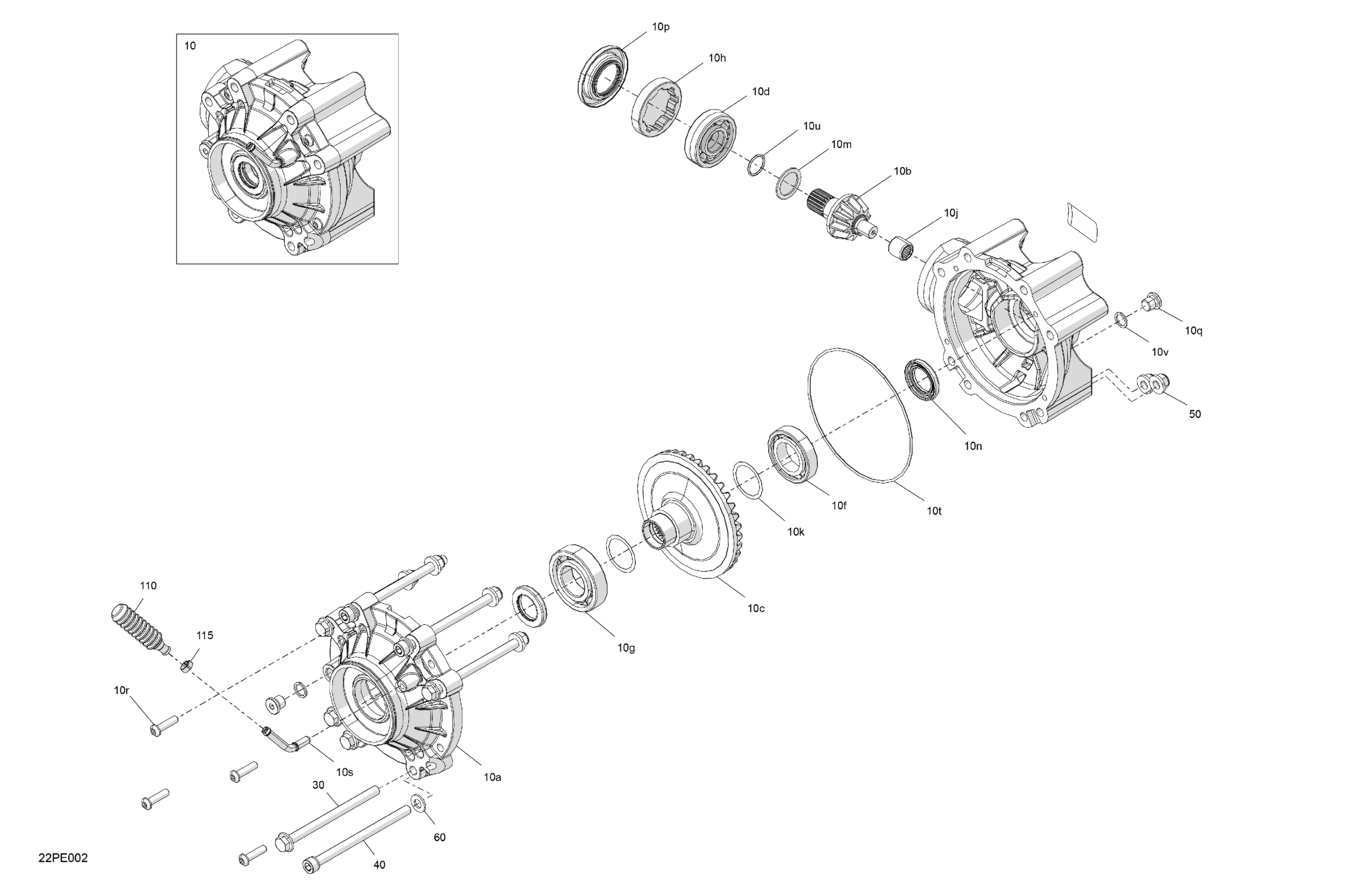

Can-Am OUT-MAX - 6X6 - XT - 1000 EFI - 5ZSA - Boreal Green - 2025 Drive - Final Drive Unit Diagram

Description

Price

Rear Drive Unit Ass'y | Includes 1000 to 1000u

705502370

$913.82

10a

Rear Cover

705502389

$175.35

10b

Pinion 10 Teeth

705502823

$207.66

10c

Gear 36 Teeth

705502822

$383.05

10d

Ball Bearing

705502736

$30.39

10f

Ball Bearing

705502737

$46.07

10g

Ball Bearing

705502738

$56.52

10h

Needle Bearing

705502058

$47.49

10j

Nut | 4X4

705401603

$36.89

10k

Differential Shim 0.02 mm

705502060

$13.83

10m

Pinion Gear Shim 1.67 mm

705502061

$16.12

10n

Oil Seal

705501996

$20.74

10p

Oil Seal

705402405

$27.66

10q

Fill Level Plug | 4X4

705500504

$7.61

10r

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

10s

Breather Tube

705501584

$13.86

10t

Seal

705502064

$8.31

10u

O-Ring

705502065

$5.98

10v

Copper Washer | 4X4

705500506

$0.36

Hex. Flange Screw M10 X 135

250001041

$4.46

Socket Screw HD.din.912

231003587

$6.55

Hex. Flange Elastic Nut M10

233201436

$1.74

WASHER M10 - Call your local BRP dealership

20005

Unavailable

110

Rubber Bellow | 4X4

705400552

$6.02

115

Oetiker Clamp

293650042

$1.40
