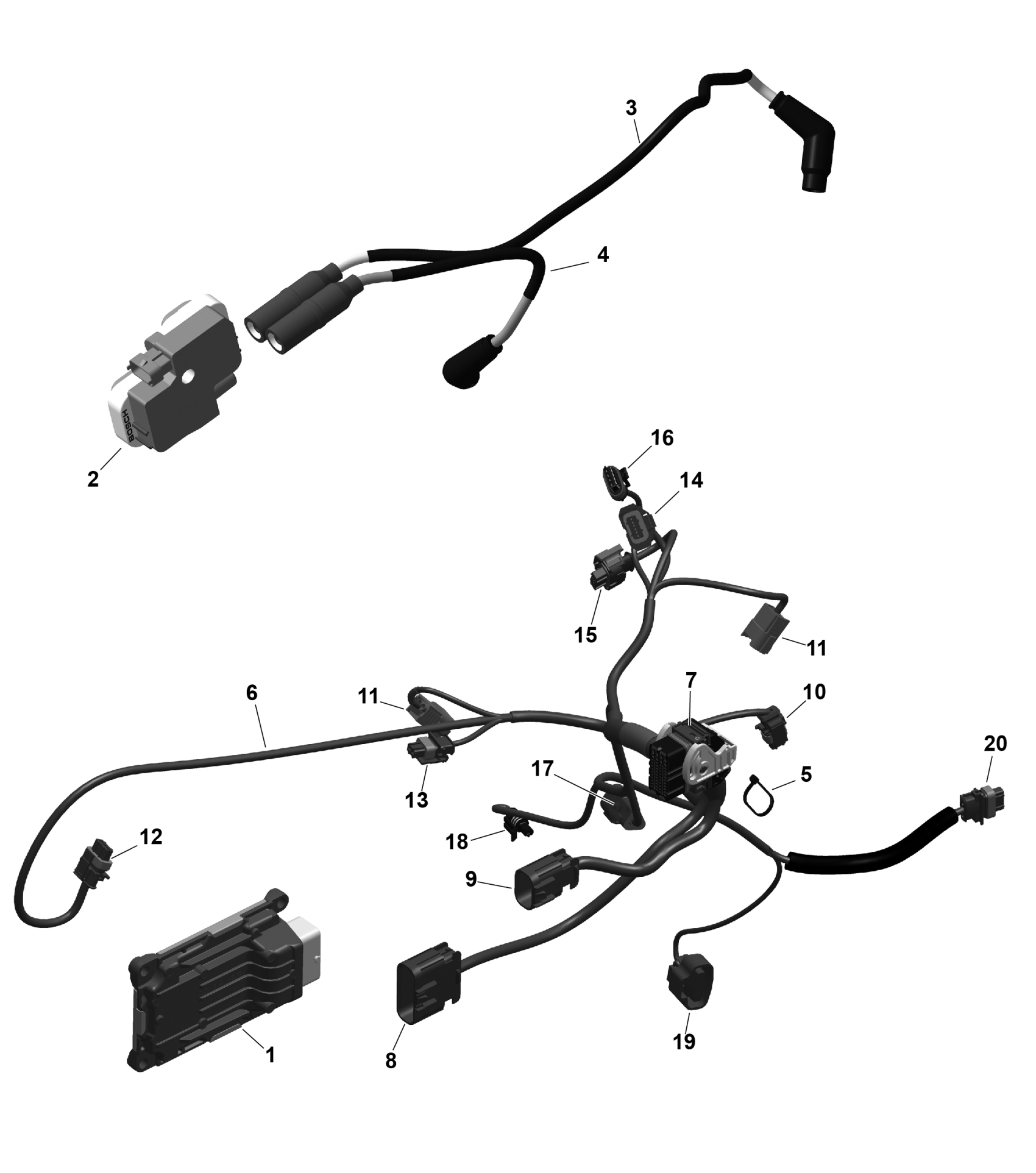

Can-Am OUT-MAX - 6X6 - DPS - 650 EFI - 5YSA - Tundra Green - 2025 ROTAX - Engine Harness And Electronic Module Diagram

#

Description
Price

1

Electronic Box XCU Serie | Scarab NA & INT Programmed

420464523

$569.99

2

Ignition Coil

278001546

$158.99

3

Spark Plug Cable, 600 mm, PTO SAE | Except International

420464162

$58.49

4

Spark Plug Cable, 315 mm, MAG SAE | Except International

420464152

$74.99

5

Tie Wrap 94 mm | 4X4

293750001

$1.03

6

Housing

710000568

$11.12

6

Engine Wiring Harness

420265961

$449.99

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Male Housing, 2 Circuits

278001005

$19.49

11

Not Available As Spare Parts

XXX

Unavailable

12

Male Housing, 3 Circuits

278000997

$19.49

13

Male Housing, 2 Circuits

278001005

$19.49

14

Housing Connector, 3 Circuits

278001829

$21.99

15

Male Connector

515176410

$51.49

16

Not Available As Spare Parts

XXX

Unavailable

17

Male Housing

278002378

$13.99

18

Male Housing, 1 Circuit

278001012

$16.86

19

Male Housing, 4 Circuits

710000329

$15.36

20

Male Housing, 3 Circuits

278000997

$19.49
