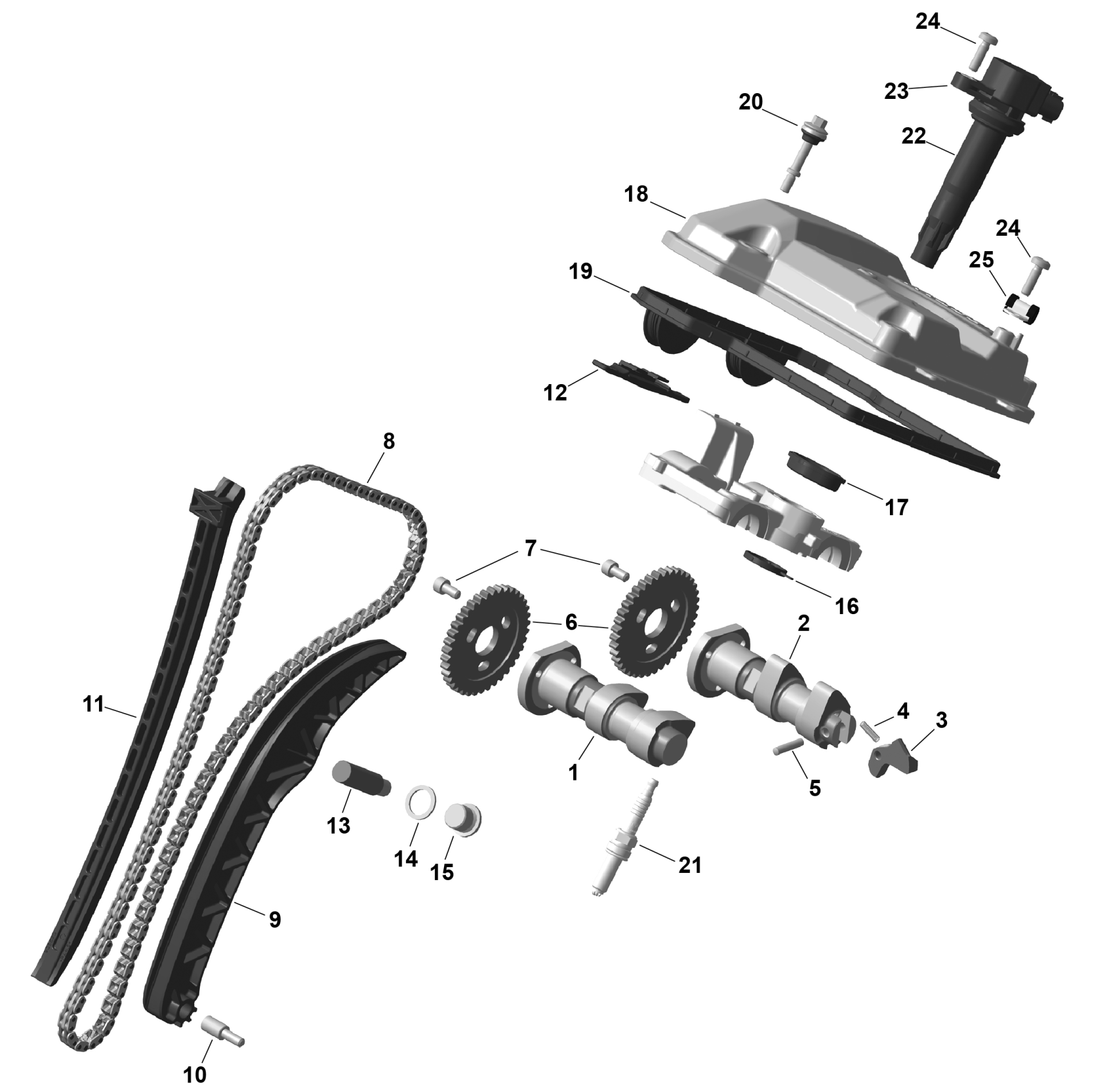

Can-Am Off-Road International - OUT-MAX - 4X4 - DPS - 700 - 1WSC - Legion Red - 2025 01- ROTAX - Valve Train Diagram

#

Description
Price

1

CAMSHAFT INTAKE -5/53

420281655

$171.49

2

Camshaft Exhaust Ass'y | Includes no. 2-5

420281579

$190.49

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Camshaft Sprocket 38 Teeth

420254446

$18.49

7

Allen Screw M6 X 12

420840032

$4.44

8

Silent Chaine

420297075

$90.99

9

Chain Tension Guide

420936530

$30.49

10

Bearing Screw M6

420240945

$5.24

11

Chain Guide

420936520

$13.16

12

Upper Chain Guide

420936540

$6.56

13

Chain Tensioner Ass'y

420236392

$47.49

14

Gasket Ring

420430624

$1.89

15

Plug Screw M16 X 1.5

420240234

$14.28

16

Camshaft Housing Gasket

420431760

$3.17

17

Valve Cover Gasket

420431751

$3.17

18

Valve Cover

420610445

$29.49

19

Gasket | Included in gasket kit

420630281

$36.99

20

Hex Screw M6 X 30

420440568

$8.58

21

Spark Plug

715900785

$21.99

22

Ignition Coil Ass'y | Includes no. 23-24

420666148

$124.99

23

Protection Cap

420201430

$7.51

24

Torx Flange Screw M6 X 20

420441383

$5.40

25

Clamp

420853414

$18.49
