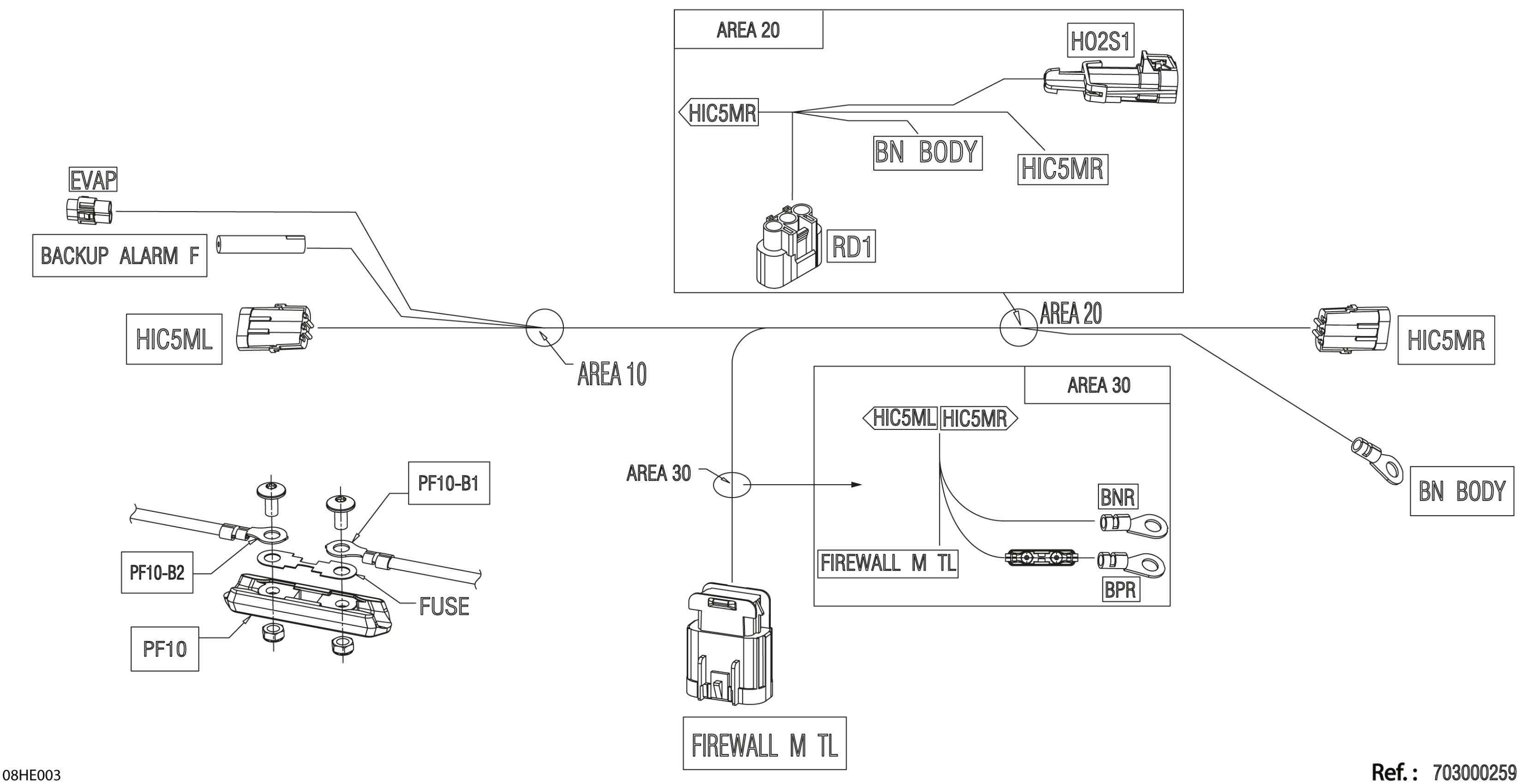

Can-Am Maverick MAX - TURBO - DS - 7WSE - Fiery Red Metallic - 64" Width CALI, 2025 Electric - Junction Wiring Harness - 710007036 Diagram

Description

Price

Junction Wiring Harness

710007036

$92.28

60c

Phillips Screw M5 X 12 | Not Shown

208651200

$2.09

60d

Elastic Stop Nut M5

232551414

$0.72

BACKUP ALARM F

Insulated Sheath

278001007

$3.22

BACKUP ALARM F

Female Terminal

710000421

$5.46

BN BODY

Open Barrel Terminal

278001392

$4.12

BNR

Terminal

710000913

$5.46

BPR

Open Barrel Terminal

278001392

$4.12

EVAP

Wire Seal

710000402

$4.42

EVAP

Female Terminal

409012100

$3.73

FIREWALL M TL

Clip

710000992

$4.00

FIREWALL M TL

Housing

710001952

$11.06

FIREWALL M TL

Lock

710006361

$0.75

FIREWALL M TL

Cap

710001225

$7.27

FIREWALL M TL

Seal

710001233

$2.55

FIREWALL M TL

Terminal

710001224

$3.02

HIC5ML

Clip

710000992

$4.00

HIC5ML

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

HIC5ML

Wire Seal

278001065

$6.03

HIC5ML

Male Terminal | XT Models

278000222

$2.55

HIC5MR

Clip

710000992

$4.00

HIC5MR

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

HIC5MR

Wire Seal

278001065

$6.03

HIC5MR

Male Terminal | XT Models

278000222

$2.55

HO2S1

Clip

710001343

$7.09

HO2S1

Housing

710002466

$2.98

HO2S1

Holder | XMR

710002006

$3.68

HO2S1

Lock

710002469

$1.98

HO2S1

Seal

278001482

$2.55

HO2S1

Gold Terminal

710002597

$2.98

PF10

Fuse Holder Support

710007204

$8.26

PF10-B1

Terminal Ring

515177799

$7.24

PF10-B2

Terminal Ring

515177799

$7.24

PF10-F1

50A Fuse

710007318

$18.82

RD1

Female Housing, 3 Circuits

710000879

$21.42

RD1

Cap

710000882

$9.19

RD1

Seal

710001932

$3.15

RD1

Terminal

710001934

$4.51
