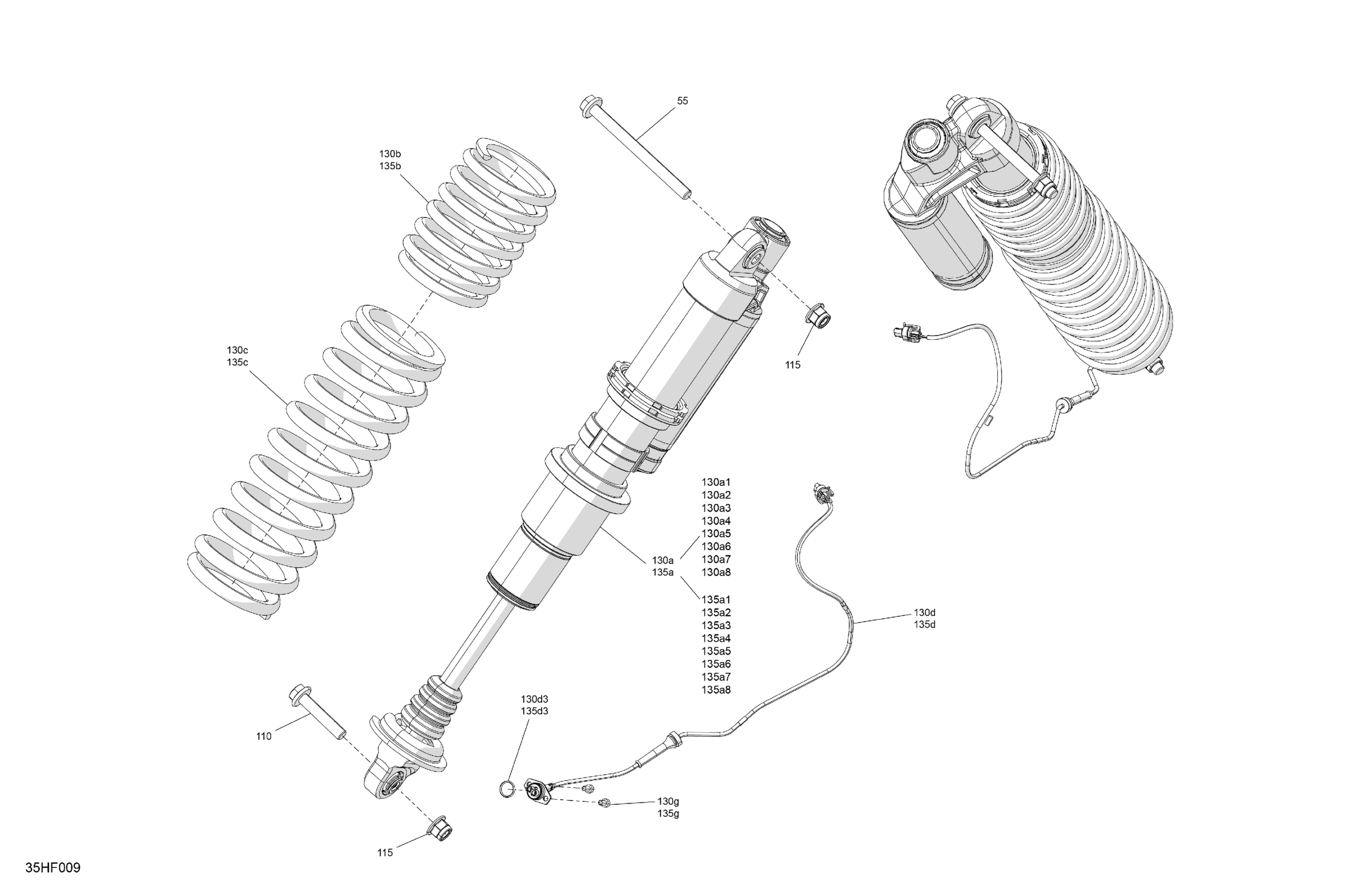

Can-Am Maverick - TURBO RR - XRS SAS - 7TT2 - Timeless Black Metallic - 72" Width CALI, 2026 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$5.47

110

Flange Screw M12 X 60

250000857

$6.08

115

Elastic Flange Nut M12

250001195

$2.15

130a

LH Front Adjustable Shock Absorber | Includes 130a to 130a5

706204945

$1,569.99

130a1

Spherical Bearing

715900337

$80.74

130a2

Ball Joint

706004078

$45.12

130a3

O-Ring Bushing

715900338

$10.98

130a4

Circlip

715900480

$11.06

130a5

Reducer

715900481

$27.66

130a6

Crossover Ring

715900594

$14.98

130a7

Spring Retainer

706203066

$73.82

130a8

Spring Coupler Long

715900591

$32.28

130b

Deep Black, Compression Spring

706205339

$96.89

130c

Deep Black, Compression Spring

706205343

$170.74

130d

Front Suspension Wiring Harness Ass'y

710006388

$216.89

130d3

O Ring

293300213

$2.31

130g

Socket Head Screw M5 X 10

205551060

$1.30

135a

RH Front Adjustable Shock Absorber | Includes 135a to 135a5

706204946

$1,569.99

135a1

Spherical Bearing

715900337

$80.74

135a2

Ball Joint

706004078

$45.12

135a3

O-Ring Bushing

715900338

$10.98

135a4

Circlip

715900480

$11.06

135a5

Reducer

715900481

$27.66

135a6

Crossover Ring

715900594

$14.98

135a7

Spring Retainer

706203066

$73.82

135a8

Spring Coupler Long

715900591

$32.28

135b

Deep Black, Compression Spring

706205339

$96.89

135c

Deep Black, Compression Spring

706205343

$170.74

135d

Front Suspension Wiring Harness Ass'y

710006388

$216.89

135d3

O Ring

293300213

$2.31

135g

Socket Head Screw M5 X 10

205551060

$1.30
