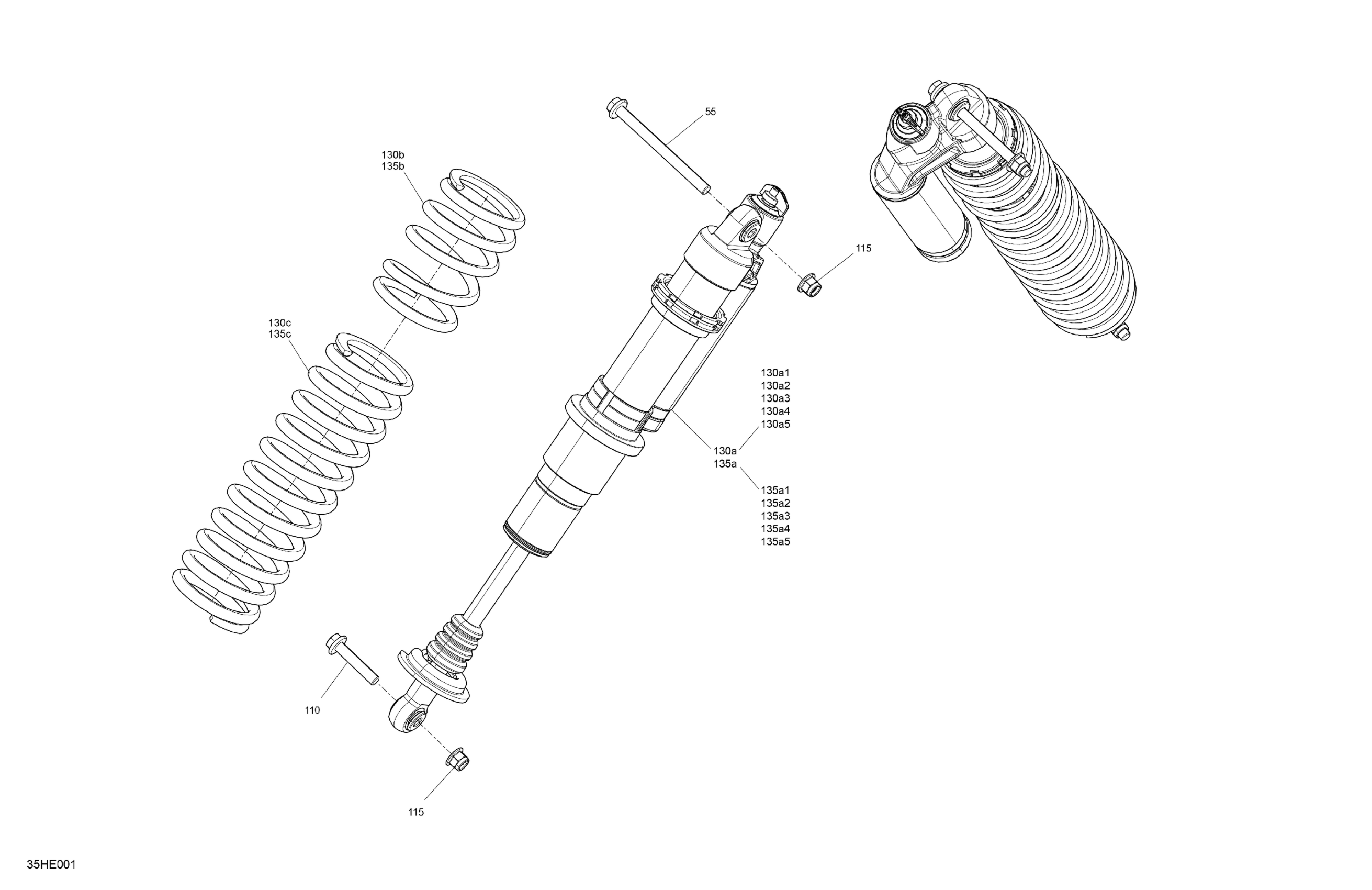

Can-Am Maverick - TURBO RR - XMR - 9LSA - Hyper Silver - 72" Width, 2025 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.28

110

Flange Screw M12 X 60

250000857

$6.99

115

Elastic Flange Nut M12

250001195

$2.46

130a

LH Front Shock | Includes 130a to 130a5

706204052

$929.99

130a1

Spherical Bearing

715900337

$79.07

130a2

Ball Joint

706004078

$44.00

130a3

O-Ring Bushing

715900338

$10.55

130a4

Circlip

715900480

$10.24

130a5

Reducer

715900481

$24.60

130b

Legion Red, Compression Spring

706205759

$87.28

130c

Legion Red, Compression Spring

706205766

$108.18

135a

RH Front Shock | Includes 135a to 135a5

706204053

$929.99

135a1

Spherical Bearing

715900337

$79.07

135a2

Ball Joint

706004078

$44.00

135a3

O-Ring Bushing

715900338

$10.55

135a4

Circlip

715900480

$10.24

135a5

Reducer

715900481

$24.60

135b

Legion Red, Compression Spring

706205759

$87.28

135c

Legion Red, Compression Spring

706205766

$108.18
