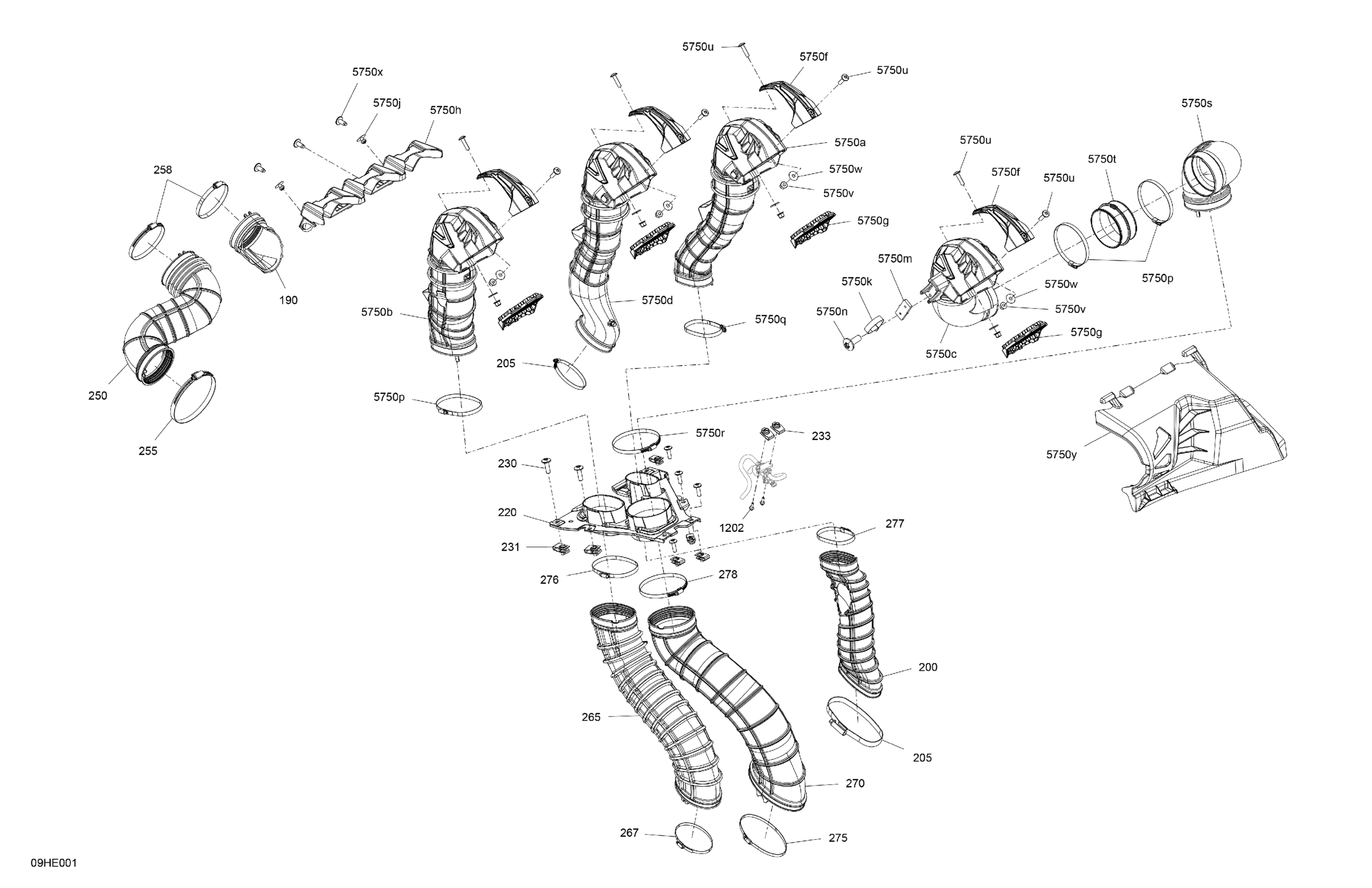

Can-Am Maverick MAX - TURBO RR - XMR - 7ZSA - Hyper Silver - 72" Width, 2025 Engine - Air Duct Diagram

Description

Price

5750a

Top Front CVT Duct

706600250

$156.89

5750b

Top Rear Intake Duct

706600251

$156.89

5750c

Top Rear CVT Exhaust Duct

706600252

$147.66

5750d

Hose

707800862

$124.58

5750f

Scoop Cover

707003317

Unavailable

5750g

Legion Red, Air Inlet Grille

705019007

$19.20

5750h

Hose Holder

706600276

$20.74

5750j

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

5750k

Open Clamp

293850133

$2.31

5750m

Plate

705013076

$30.74

5750n

Torx Truss M8 X 16

250000881

$1.74

5750p

Norma Gear Clamp

514052983

$11.43

5750q

Norma Clamp

293650096

$3.09

5750r

Tridon Clamp

293650054

$7.51

5750s

Mid Rear CVT Exhaust Duct

706600270

$46.12

5750t

Adaptor

707002266

$11.83

5750u

Torx Screw M5 X 20

250000792

$1.74

5750v

Elastic Flange Nut M5

233251494

$1.74

5750w

Flat Washer 5 mm, Stainless

234052600

$0.64

5750x

Torx Screw M6 X 14

250000851

$1.74

5750y

Air Inlet Cover

705012553

$46.12

190

Front CVT Duct

706600248

$27.66

200

Front CVT Cooling Duct

706600313

$50.74

205

Norma Clamp

514052924

$10.58

220

Hose Support

706600253

$16.89

230

Torx Screw M6 X 20

250000722

$1.34

231

Panel Nut M6 X 1.0

250100198

$1.73

233

Panel Nut M5 X 0.8

250000958

$3.48

250

Front CVT Cooling Duct

706600306

$50.74

255

Norma Gear Clamp

514052983

$11.43

258

Norma Gear Clamp

514052983

$11.43

265

Rear CVT Cooling Duct

706600305

$175.35

267

Norma Gear Clamp

514052983

$11.43

270

Rear CVT Duct

706600223

$124.58

275

Gear Clamp (Norma)

514052861

$7.80

276

Norma Gear Clamp

514052983

$11.43

277

Norma Clamp

293650096

$3.09

278

Tridon Clamp

293650054

$7.51

1202

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12
