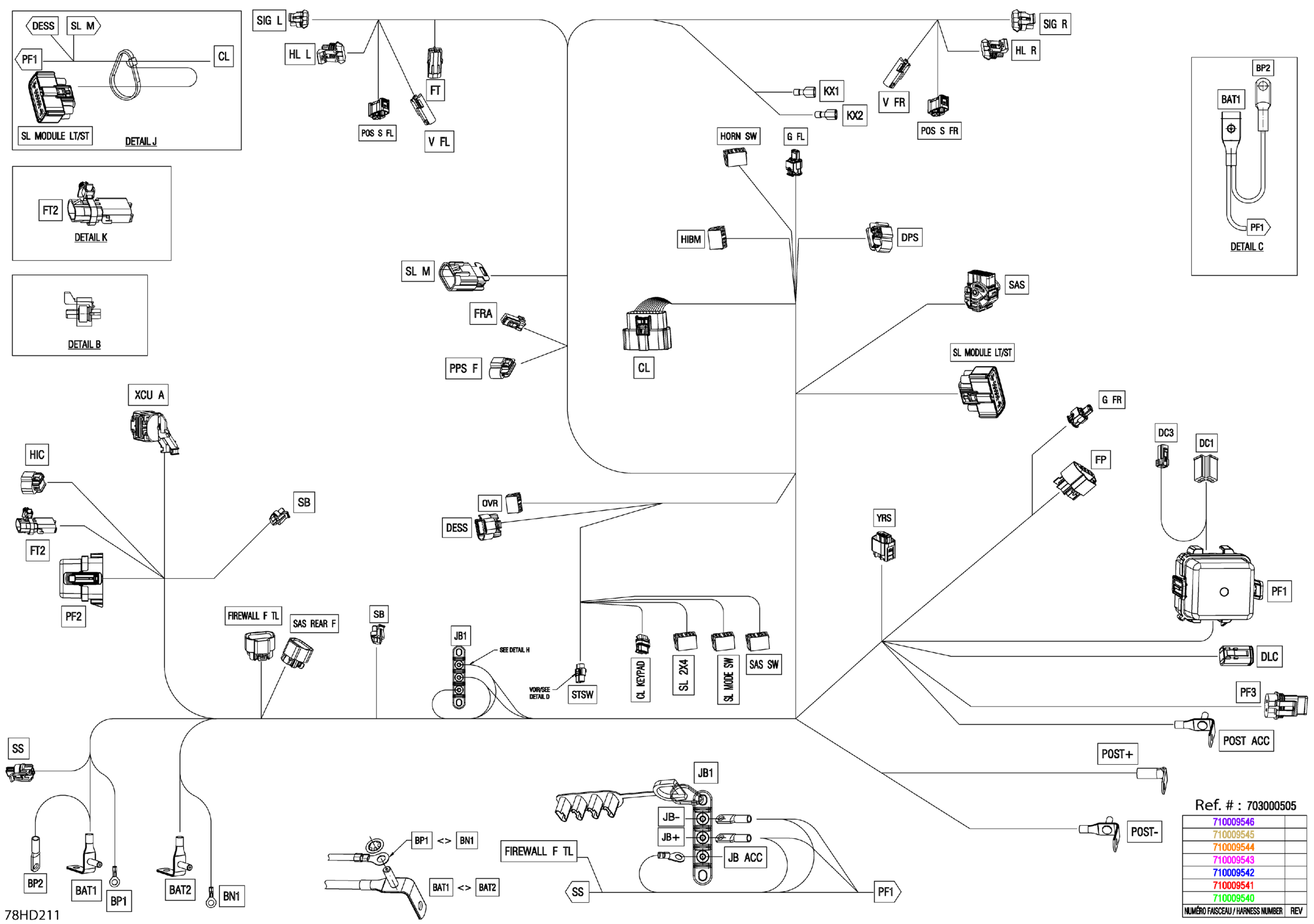

Can-Am Maverick Turbo RR - DS - 7XRC - Fiery Red Metallic - 64" Width CALI, 2024 Electric - Main Harness - 710009540 Diagram

#

Description
Price

300

Main Wiring Harness

710009540

$929.99

BN1

Open Barrel Terminal

278001392

$4.79

BP1

Shrink Tubing, 6 mm

515177246

$1.04

BP1

Open Barrel

278000992

$2.21

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal 22 AWG

515178349

$2.29

CL

Female Terminal

515178018

$1.19

CL KEYPAD

Housing

710001161

$11.12

CL KEYPAD

Lock

710001162

$3.19

CL KEYPAD

Wire Seal

710001163

$7.69

CL KEYPAD

Female Terminal

710001164

$8.89

D2

Diode

409012700

$11.12

DC1

Housing

710005373

$5.29

DC1

Terminal

710005077

$1.49

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3 CAP

Male Housing, 2 Circuits

710000667

$8.32

DESS

Female Delphi Connector 5 Cavities

710007151

$17.04

DESS

Lock

710007243

$4.39

DESS

Wire Seal

710001163

$7.69

DESS

Female Terminal

710001164

$8.89

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Female Terminal

710005439

$4.44

DLC

Female Terminal

710005438

$4.29

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

FIREWALL F TL

Housing

710001951

$12.71

FIREWALL F TL

Lock

710001222

$2.09

FIREWALL F TL

Lock

710006361

$0.82

FIREWALL F TL

Cap

710001225

$9.19

FIREWALL F TL

Seal

710001233

$3.19

FIREWALL F TL

Terminal

710001229

$3.19

FL-1

Fuse Wire 31-40AMP

715002537

$21.99

FL-2

Fuse Wire 31-40AMP

715002537

$21.99

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.09

FP

Lock

710006214

$0.82

FP

Wire Seal

278002186

$5.50

FP

Seal

710003153

$0.99

FP

Female Terminal

278002187

$6.39

FP

Terminal

710001873

$2.09

FRA

Female Housing, 2 Circuits

515175658

$16.18

FRA

Female Terminal

710003896

$2.19

FT

Clip

710000992

$4.29

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

FT2

Female Housing, 2 Circuits

278000217

$9.59

FT2

Wire Seal

278000218

$4.39

FT2

Male Terminal

409004300

$5.61

HIBM

Housing

710002000

$7.90

HIBM

Terminal

710003047

$3.49

HIBM

Female Terminal

710005491

$2.09

HIC

Housing

710001928

$16.86

HIC

Lock

710001222

$2.09

HIC

Lock

710006181

$3.19

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HL L

Housing

710000645

$15.36

HL L

Lock

710000642

$4.59

HL L

Seal

278001482

$3.19

HL L

Female Terminal

710001134

$7.69

HL R

Housing

710000645

$15.36

HL R

Lock

710000642

$4.59

HL R

Seal

278001482

$3.19

HL R

Female Terminal

710001134

$7.69

JB ACC

Shrink Tubing, 6 mm

515177246

$1.04

JB ACC

Open Barrel

278000992

$2.21

JB-1

Junction Block Cover

710006610

$20.99

JB-1

Elastic Stop Nut M6, Brass

232561200

$4.23

OVR

Housing

710002000

$7.90

OVR

Female Terminal

710005491

$2.09

PF1

Fuse Cover

278003553

$3.72

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Wire Seal

278000216

$3.19

PF1

Seal

293300198

$2.39

PF1

Phillips Screw K40 X 16

250000723

$0.98

PF1

Wire Seal

278000218

$4.39

PF1

Wire Seal

710000048

$7.69

PF1

Wire Seal

278001065

$7.69

PF1

Female Terminal

515177177

$6.49

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1 LABEL WO SAS

Fuses Decals

710009146

$13.99

PF1 SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F11

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F14

Little Fuse, 30 Amperes

710000747

$8.49

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F23

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F7

Little Fuse, 10 Amperes

710000744

$8.79

PF1-R3

Relay

710009145

$17.99

PF1-R4

Relay

715900824

$21.99

PF1-R8

Relay

715900824

$21.99

PF2

Fuse Cover

278003553

$3.72

PF2

Fuses Decal

710007297

$11.99

PF2

Fuse Base Ass'y

278003448

$31.99

PF2

Wire Seal

278000216

$3.19

PF2

Seal

293300198

$2.39

PF2

Wire Seal

278000218

$4.39

PF2

Wire Seal

278001065

$7.69

PF2

Wire Seal

710000048

$7.69

PF2

Female Terminal

710000918

$7.69

PF2

Female Terminal

278002578

$1.04

PF2

Female Terminal

710000890

$4.55

PF2 SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF2 SP2

Little Fuse, 25 Ampere

278002389

$4.55

PF2-F17

Little Fuse, 25 Ampere

278002389

$4.55

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F28

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F9

Fuse, 25 Amps

710002590

$19.49

PF2-R1

Relay, 30 AMP

515176774

$21.99

PF2-R10

Relay

715900824

$21.99

PF2-R2

Relay

715900824

$21.99

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3-F2

Fuse

710001613

$8.79

POST ACC

Folded Terminal Eyelet

710006749

$9.95

POST+

Terminal 90°

710003266

$9.10

POST+

Protector Cap

710000495

$10.99

PPS F

Housing

710001232

$14.29

PPS F

Lock

710001222

$2.09

PPS F

Seal

710001233

$3.19

PPS F

Terminal

710001229

$3.19

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SIG L

Female Housing

710005321

$4.55

SIG L

Lock

710000642

$4.59

SIG L

Cap

710006310

$1.09

SIG L

Seal

278001482

$3.19

SIG L

Female Terminal

710001134

$7.69

SIG R

Female Housing

710005321

$4.55

SIG R

Lock

710000642

$4.59

SIG R

Cap

710006310

$1.09

SIG R

Seal

278001482

$3.19

SIG R

Female Terminal

710001134

$7.69

SL 2X4

Housing

710002000

$7.90

SL 2X4

Female Terminal

710005491

$2.09

SL M

Housing

710001927

$8.79

SL M

Holder | XMR

710002006

$3.19

SL M

Lock

710006181

$3.19

SL M

Seal

710001233

$3.19

SL M

Seal Wire

710001332

$3.28

SL M

Terminal

710001224

$3.19

SL M

Terminal

710001223

$3.19

SL MODE SW

Housing

710002000

$7.90

SL MODE SW

Terminal

710003047

$3.49

SL MODULE LT

Seal

278003046

$0.92

SL MODULE LT

Seal Plug

710006362

$6.35

SL MODULE LT

Terminal

710005584

$2.09

SL MODULE ST

Female Housing ,16 Circuits

278003484

$17.59

SL MODULE ST

Female Terminal

515178018

$1.19

SL MODULE ST

Female Terminal 22 AWG

515178349

$2.29

SS

Female Housing, 2 Circuits

515177192

$9.12

SS

Lock

710001152

$4.39

SS

Wire Seal

710001163

$7.69

SS

Female Terminal

710001164

$8.89

STSW

Wire Seal

710000402

$4.55

STSW

Female Terminal

409012100

$4.55

XCU A

Cover

515178602

$5.37

XCU A

Housing 56 Circuits

515178618

$24.99

XCU A

Plate

515178604

$4.59

XCU A

Plug

515178599

$3.17

XCU A

Plug

515178600

$3.17

XCU A

Plate

515178603

$4.59

XCU A

Terminal

515178596

$3.72

XCU A LT

Terminal

515178598

$3.61

XCU A LT

Terminal

515178666

$4.55
