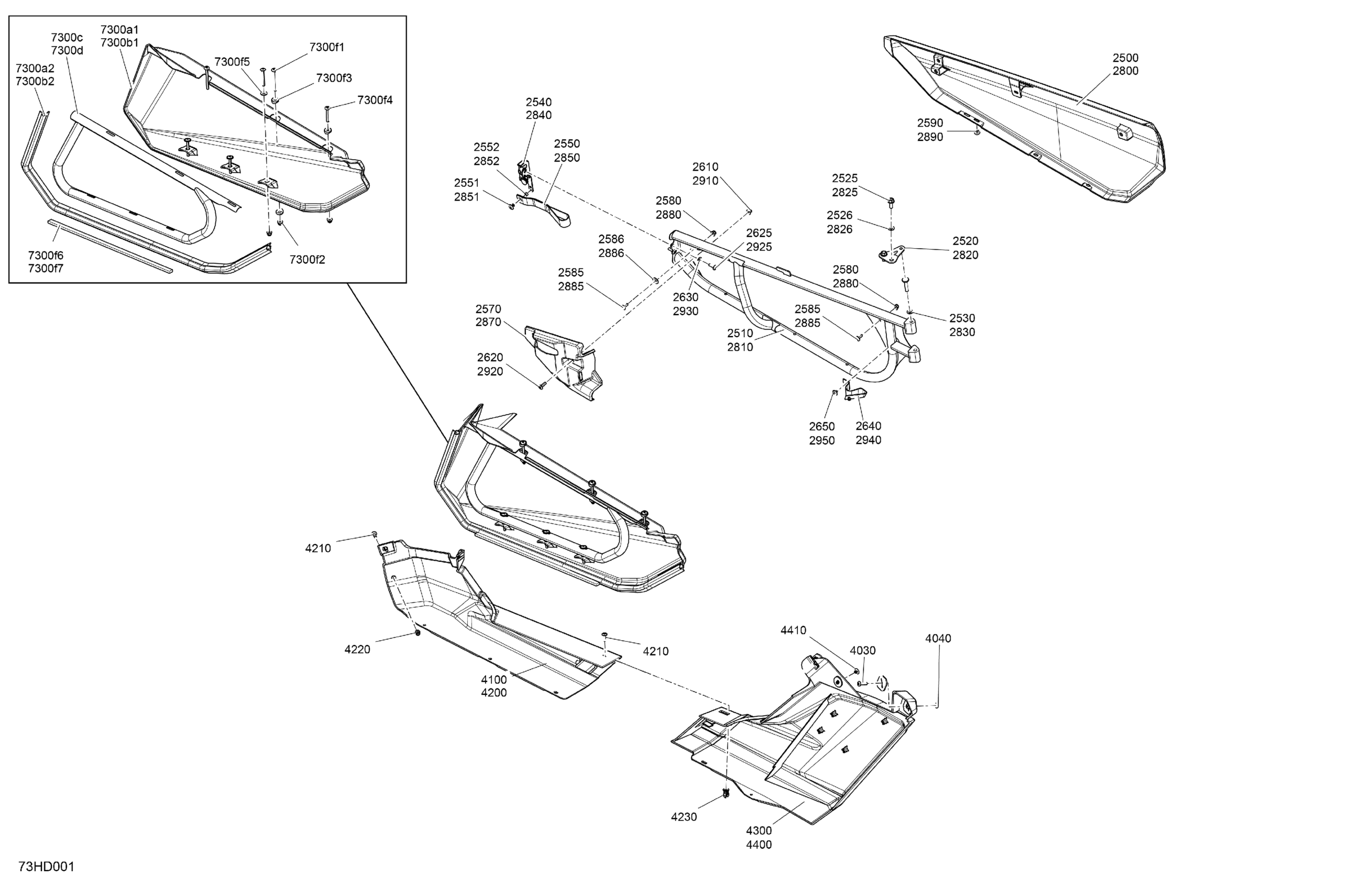

Can-Am Maverick Turbo RR - XRC - 6VRA - Hyper Silver - 64" Width, 2024 Body - Doors Diagram

#

Description
Price

2500

Hyper Silver, LH Front Door Panel

705018246

$191.76

2510

Deep Black, LH Front Door

705018468

$141.01

2520

Door Support

705011187

$10.55

2525

Hex Screw Washer Head M8 X 20

207582054

$3.00

2526

Flat Washer M8

234081430

$2.00

2530

Flat Washer 8 mm, Nylon

234081100

$1.15

2540

LH Latch

705013095

$53.70

2550

Belt

293850135

$13.45

2551

Pop Rivet 3/16"

293150103

$0.52

2552

Bushing | DS 650 X

293900104

$5.10

2570

LH Latch Cover

705013535

$35.79

2580

Panel Nut M6 X 1.0

250100198

$1.99

2585

Torx Truss Screw M6 X 16

250000721

$1.60

2586

Stainless Steel Flat Washer

234062670

$2.00

2590

Pop Rivet 3/16"

293150103

$0.52

2610

Panel Nut M6 X 1.0

250100198

$1.99

2620

Torx Truss Screw M6 X 16

250000721

$1.60

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$3.01

2630

Flat Washer

224061121

$0.51

2640

Door Belt

293850129

$14.61

2650

Pop Rivet 3/16"

293150103

$0.52

2800

Hyper Silver, RH Front Door Panel

705018247

$191.76

2810

Deep Black, RH Front Door

705018470

$141.01

2820

Door Support

705011187

$10.55

2825

Hex Screw Washer Head M8 X 20

207582054

$3.00

2826

Flat Washer M8

234081430

$2.00

2830

Flat Washer 8 mm, Nylon

234081100

$1.15

2840

RH Latch

705013096

$53.70

2850

Belt

293850135

$13.45

2851

Pop Rivet 3/16"

293150103

$0.52

2852

Bushing | DS 650 X

293900104

$5.10

2870

RH Latch Cover

705013536

$35.79

2880

Panel Nut M6 X 1.0

250100198

$1.99

2885

Torx Truss Screw M6 X 16

250000721

$1.60

2886

Stainless Steel Flat Washer

234062670

$2.00

2890

Pop Rivet 3/16"

293150103

$0.52

2910

Panel Nut M6 X 1.0

250100198

$1.99

2920

Torx Truss Screw M6 X 16

250000721

$1.60

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$3.01

2930

Flat Washer

224061121

$0.51

2940

Door Belt

293850129

$14.61

2950

Pop Rivet 3/16"

293150103

$0.52

4030

Torx Truss Screw M6 X 25

250000807

$2.00

4040

Panel Nut M6 X 1.0

250100198

$1.99

4100

Deep Black, LH Central Side Panel

705017554

$60.42

4200

Deep Black, RH Central Body Panel

705017555

$66.39

4210

Torx Screw M6 X 20

250000722

$1.54

4220

Panel Nut M6 X 1.0

250100198

$1.99

4230

Insert

705016606

$2.06

4300

LH Rear Lateral Panel

705010676

$104.45

4400

Deep Black, RH Rear Lateral Panel

705010677

$104.45

4410

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

7300a1

LH Door Panels

705010271

$102.21

7300a2

Door Seal

705012018

$17.88

7300b1

RH Door Panels

705010272

$101.46

7300b2

Door Seal

705012018

$17.88

7300c

Deep Black, LH Door

705018161

$116.39

7300d

Deep Black, RH Door

705018162

$116.39

7300f1

Torx-Truss M/S M6 X 80

250000902

$2.52

7300f2

Hex. Flange Elastic Nut M6

233261494

$1.45

7300f3

Offset Washer

705202223

$4.09

7300f4

Torx Truss Screw M6 X 50

250000749

$3.01

7300f5

Stainless Steel Flat Washer

234062670

$2.00

7300f6

Neoprene Seal (1PAC=3M)

219704364

$26.09

7300f7

Neoprene Seal (1PAC=3M)

219704364

$26.09
