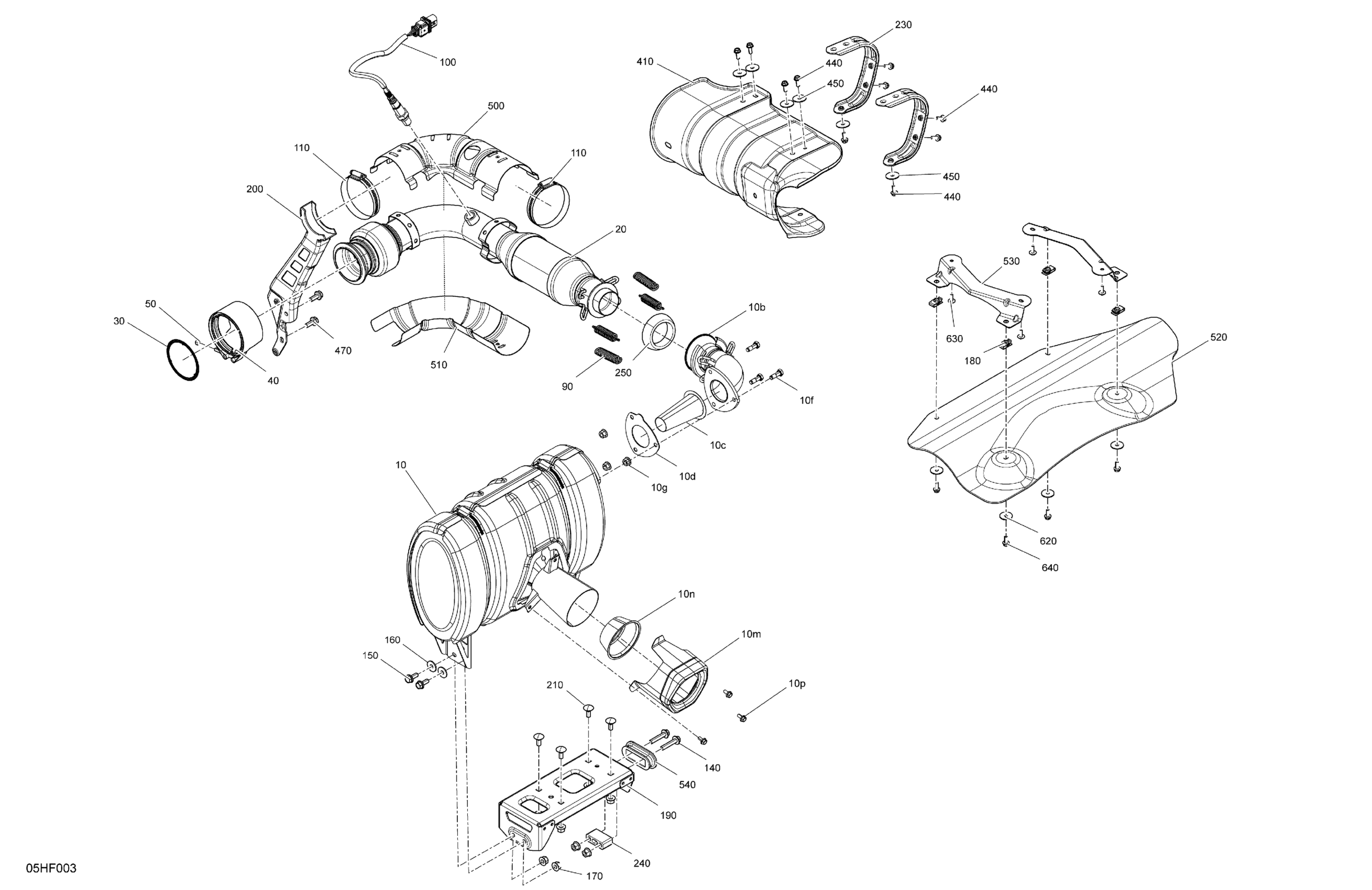

Can-Am Maverick Max - TURBO RR - XMR - 7ZTA - Loft Green Satin - 72" Width, 2026 Engine - Exhaust Diagram

Description

Price

Exhaust Muffler Ass'y | Includes 10 to 10p

707602781

$783.55

10b

Exhaust Pipe In

707602785

$28.33

10c

Spark Arrestor

707602788

$5.04

10d

Gasket

707602810

$10.51

10f

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

10g

Hex. Flange Nut M8

233081416

$1.87

10m

Heat Shield | Includes 10f to 10f2

707602046

$27.58

10n

Esthetic Spark Arrestor

707602511

$32.81

10p

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

Exhaust Pipe | Includes 20 to 20m

707603468

$979.07

Seal

707601835

$35.04

Exhaust Clamp

707603418

$49.22

Nut

707602143

$5.52

Spring

707601834

$6.01

100

Oxygen Sensor

707600872

$132.81

110

Norma Clamp

514052924

$12.15

140

Hex. Flange Screw M8 X 40

207684044

$1.43

150

Hex. Flange Screw M8 X 20

207682046

$1.76

160

Flat Washer 8 mm

234082410

$1.27

170

Hex. Flange Nut M8

233081416

$1.87

180

Panel Nut M6 X 1.0

250100198

$1.99

190

Exhaust Support

707603756

$27.58

200

Exhaust Mount | Includes 200 to 200c

707602815

$27.58

210

Carriage Bolt, M8 X 20

207782044

$1.79

230

Heat Shield Support

707603882

$27.58

240

Muffler Stopper

707603214

$11.93

250

Gasket

707601908

$22.36

410

Lateral Heat Shield

707601768

$20.12

440

Hex. Flange Screw M6 X 12

210261250

$1.79

450

Washer | Not Shown

503193995

$4.25

470

Hex Screw Washer Head M8 X 20

207582054

$3.00

500

Upper Heat Shield

707601795

$24.60

510

Lower Heat Shield

707601796

$24.60

520

Heat Shield

707602771

$103.70

530

Heat Sheild Support | Includes 530 to 530a

707603657

$5.93

540

Vibration Damper

707603488

$16.39

620

Washer

224060251

$0.55

630

Screw PT Type K-50 X 16

250000959

$2.00

640

Hex. Flange Screw M6 X 16

210261650

$1.40
