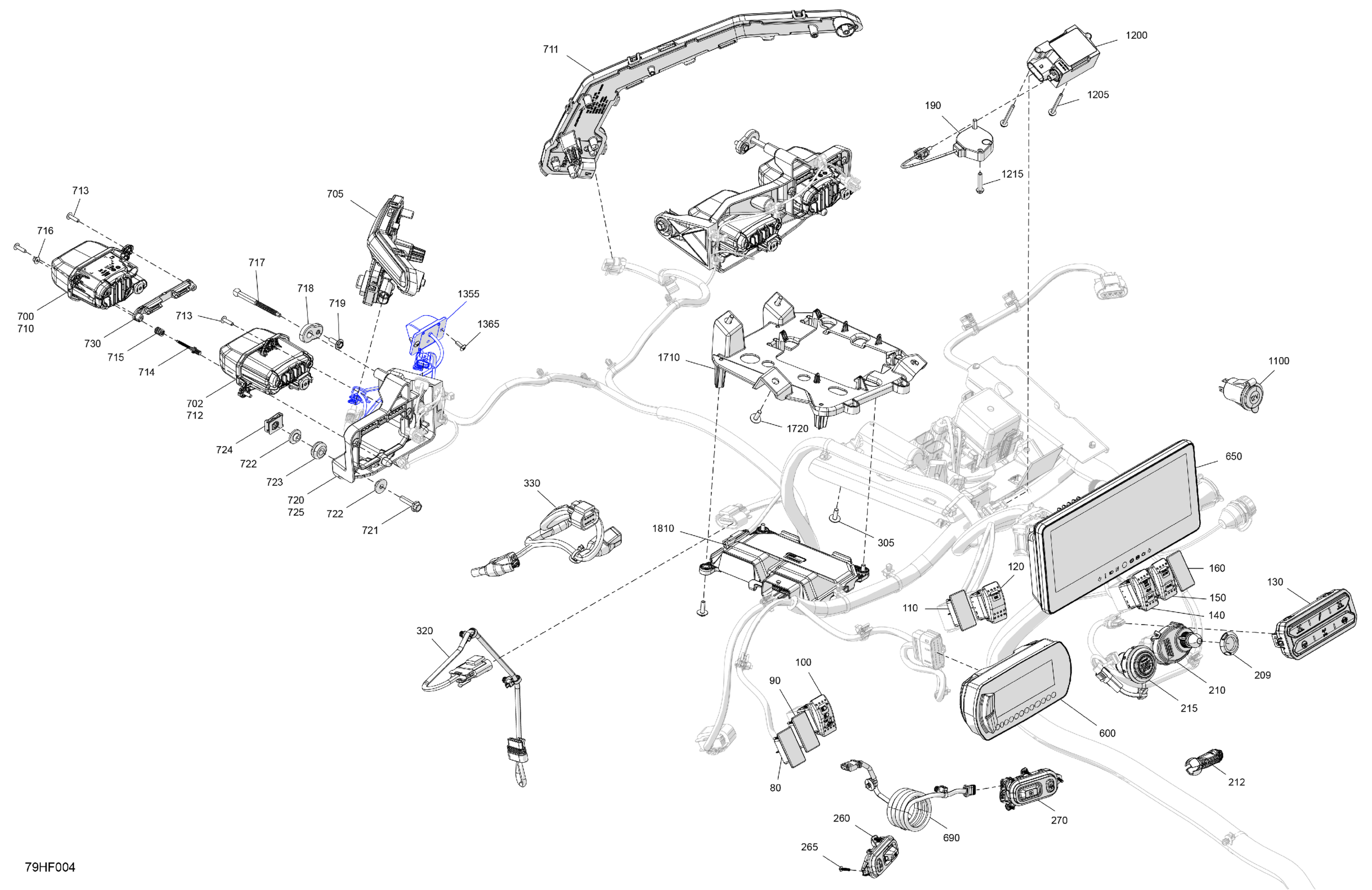

Can-Am Maverick Max - TURBO RR - XDS STD - 7VTG - Dusty Navy Satin - 64" Width CALI, 2026 Electric - Front Section Diagram

Description

Price

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

100

Headlights Switch

710007022

$64.15

110

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

120

Switch, Over ride

710002053

$19.27

130

Multifunction Switch

710010056

$117.88

140

Differential Switch

710006040

$29.82

150

Differential Mode Switch

710006557

$29.82

160

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

190

Radio Frequency Antenna

515179821

$114.15

209

Specialized Nut

278004274

$3.12

210

Terminal DESS CAN | CARB Vehicle

710008832

$69.37

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

215

Start-Stop Button | Not Shown

710005213

$55.94

260

LH Multifunction Switch

710009446

$81.31

265

Screw Plastite Torx K30 X 12

250001234

$0.54

270

RH Multifunction Switch

710010681

$81.31

305

Screw PT Type K-50 X 16

250000959

$2.00

320

Cable Throttle Pedal

710005291

$211.91

330

Front Differential Wiring Harness

710006807

$44.75

600

Multifunction Compact Gauge

710008296

$362.66

650

Multifunction Gauge 10

710010375

$2,012.66

690

Steering Wheel Wiring Harness

710008062

$276.09

700

Low Beam Light

710008088

$152.21

702

HIgh Beam Light

710006910

$152.21

705

LH Signature Beam

710004994

$151.46

710

Low Beam Light

710008088

$152.21

711

RH Signature Beam

710004995

$151.46

712

HIgh Beam Light

710006910

$152.21

713

Torx-Truss Pt K40 X 16

250000759

$2.00

714

Threaded Rod | Not Shown

517309133

$6.01

715

Compression Spring | Not Shown

517309058

$7.01

716

Specialized Nut | Not Shown

517309134

$0.96

717

Ajustment Screw

710005837

$5.90

718

Ball Socket

293900157

$7.88

719

Screw PT Type K-50 X 16

250000959

$2.00

720

Support_Headlight LH

710010932

Unavailable

721

Hex. Flange Screw M6 X 25

207662554

$1.43

722

Shoulder Bushing

710004749

$2.69

723

Overmolded Grommet

293720130

$4.25

724

Panel Nut M6 X 1.0

250100208

$1.22

725

Support_Headlight RH

710010934

$5.79

730

Support Pivot | Not Shown

517309049

$2.89

1100

12V Power Outlet

710005374

$31.31

1200

Radio Frequency Module

515179191

$358.18

1205

Hex. Screw K50 X 45

241154540

$2.00

1215

Hex. Flange Screw K50 X 25

250000680

$1.67

1355

Camera

710007892

$268.49

1365

Torx Truss Screw K40 X 12

250000577

$2.00

1710

Multi Purpose Support

710010112

$6.73

1720

Screw PT Type K-50 X 16

250000959

$2.00

1810

BCM Module OPT #2

710007494

$959.99
