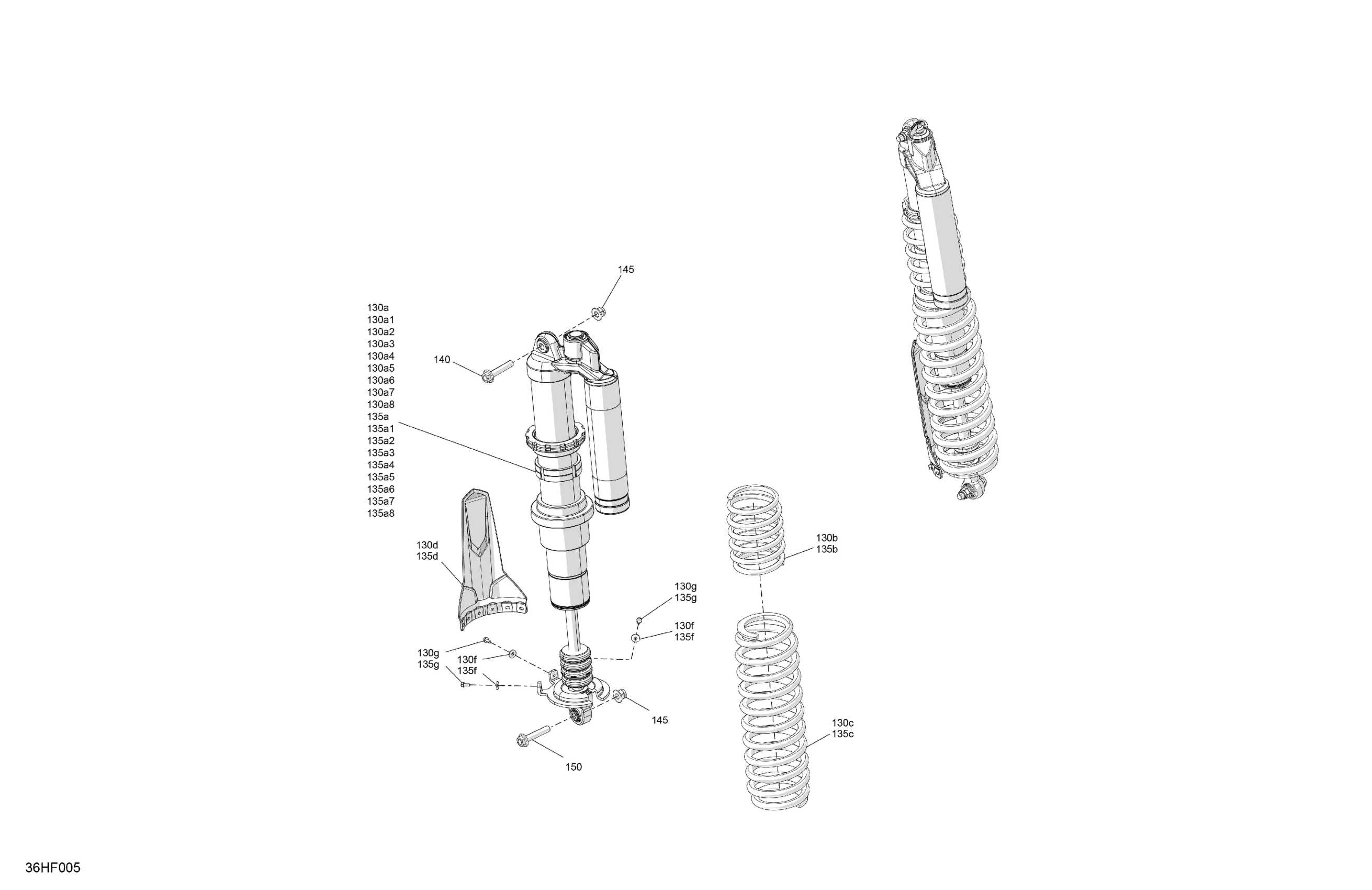

Can-Am Maverick - TURBO RR - XDS STD - 7STB - Timeless Black Metallic - 64" Width CALI, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Shock Absorber | Includes 130a to 130a5

706004563

$1,179.99

130a1

Spherical Bearing

715900337

$79.07

130a2

Ball Joint

706004078

$44.00

130a3

O-Ring Bushing

715900338

$10.55

130a4

Circlip

715900480

$10.24

130a5

Reducer

715900481

$24.60

130a6

Crossover Ring

715900594

$13.93

130a7

Spring Retainer

715900596

$32.81

130a8

Spring Coupler Long

715900591

$28.33

130b

Deep Black, Compression Spring

706005116

$96.99

130c

Deep Black, Compression Spring

706005144

$155.94

130d

Protector

706202215

$8.66

130f

Washer M5

250200025

$0.70

130g

Hex Flange Screw M5 X 11

210251150

$2.00

135a

RH Rear Shock Absorber | Includes 135a to 135a5

706004564

$1,179.99

135a1

Spherical Bearing

715900337

$79.07

135a2

Ball Joint

706004078

$44.00

135a3

O-Ring Bushing

715900338

$10.55

135a4

Circlip

715900480

$10.24

135a5

Reducer

715900481

$24.60

135a6

Crossover Ring

715900594

$13.93

135a7

Spring Retainer

715900596

$32.81

135a8

Spring Coupler Long

715900591

$28.33

135b

Deep Black, Compression Spring

706005116

$96.99

135c

Deep Black, Compression Spring

706005144

$155.94

135d

Protector

706202215

$8.66

135f

Washer M5

250200025

$0.70

135g

Hex Flange Screw M5 X 11

210251150

$2.00

140

Flange Screw M12 X 60

250000857

$6.99

145

Elastic Flange Nut M12

250001195

$2.46

150

Flange Screw M12 X 60

250000857

$6.99
