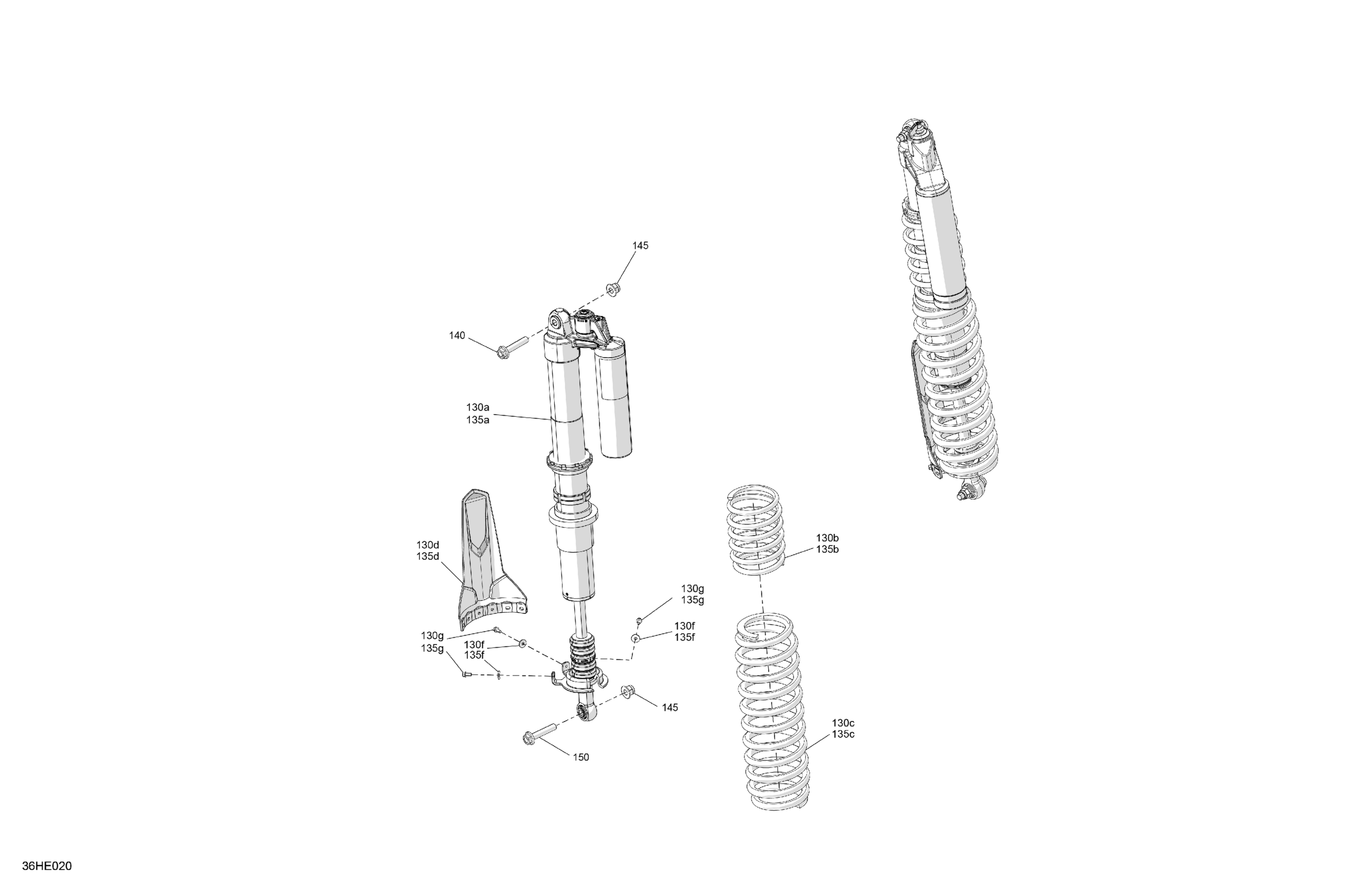

Can-Am Maverick - TURBO - RS - 9ESH - Scandi Blue - 72" Width, 2025 Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber

706004680

$933.05

130b

Orange Crush, Compression Spring

706005953

$96.89

130c

Orange Crush, Compression Spring

706005848

$147.66

130d

Protector

706202215

$9.23

130f

Washer M5

250200025

$0.61

130g

Hex Flange Screw M5 X 11

210251150

$1.74

135a

RH Rear Adjustable Shock Absorber

706004681

$901.51

135b

Orange Crush, Compression Spring

706005953

$96.89

135c

Orange Crush, Compression Spring

706005848

$147.66

135d

Protector

706202215

$9.23

135f

Washer M5

250200025

$0.61

135g

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

250001195

$2.15

150

Hex. Flange Screw M12 X 70

250000858

$3.11
