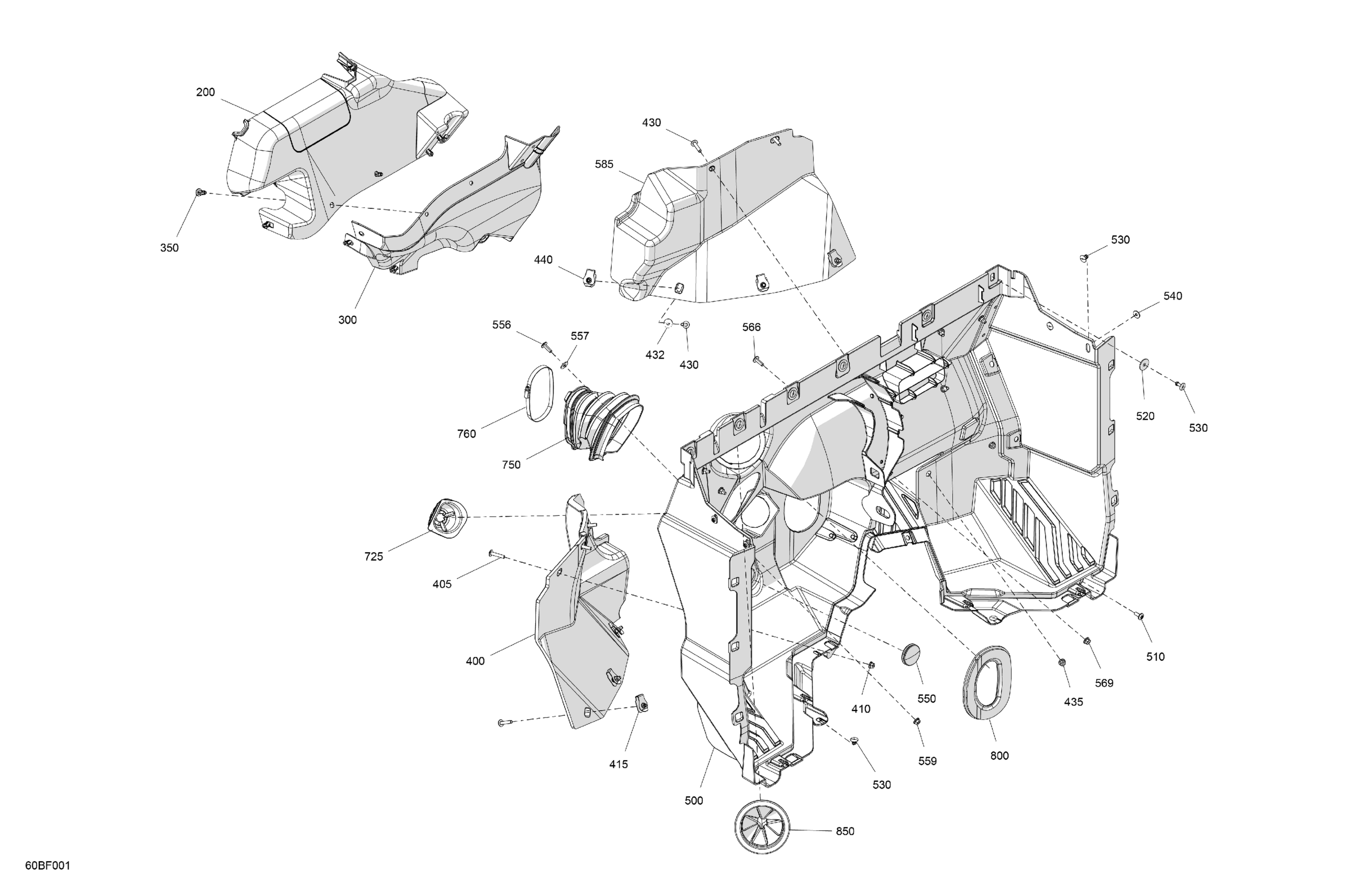

Can-Am Commander - 1000R EFI - DPS - 6PTB - Compass Green - 60" Width, 2026 Cab Interior - Firewall Diagram

Description

Price

200

Front Upper Heat Deflector

705013664

$18.99

300

Front Lower Heat Deflector

705012498

$16.49

350

Tuflok Plastic Rivet

293150230

$1.47

400

LH Front Body Panel Deflector

705020468

$78.99

405

Torx Truss Screw M6 X 30

250000843

$2.11

410

Hex. Elastic Flange Nut M6

233161464

$1.01

415

Panel Nut M6 X 1.0

250100224

$2.11

430

Torx Truss Screw M6 X 30

250000843

$2.11

432

Stainless Steel Flat Washer

234062670

$2.11

435

Hex. Elastic Flange Nut M6

233161464

$1.01

440

Panel Nut M6 X 1.0

250100224

$2.11

500

Front Seperation Panel

707901341

$159.99

510

Torx Truss Screw M6 X 16

250000721

$1.69

520

Flat Washer M6 X 25

250200044

$2.69

530

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

540

Washer M5

250200025

$0.74

550

Rubber Cover

293250242

$6.99

556

Torx Screw M6 X 20

250000722

$1.68

557

Stainless Steel Flat Washer

234062670

$2.11

559

Hex. Elastic Flange Nut M6

233161464

$1.01

566

Torx Screw M6 X 20

250000722

$1.68

569

Hex. Elastic Flange Nut M6

233161464

$1.01

585

RH Front Body Panel Deflector

705020469

$78.99

725

Steering Column Deflector

707900511

$10.49

750

Break Pedal Deflector

707900515

$20.99

760

Norma Gear Clamp

514052983

$15.89

800

Gas Pedal Deflector

707900516

$14.49

850

Front Rubber Deflector

707900517

$13.49
