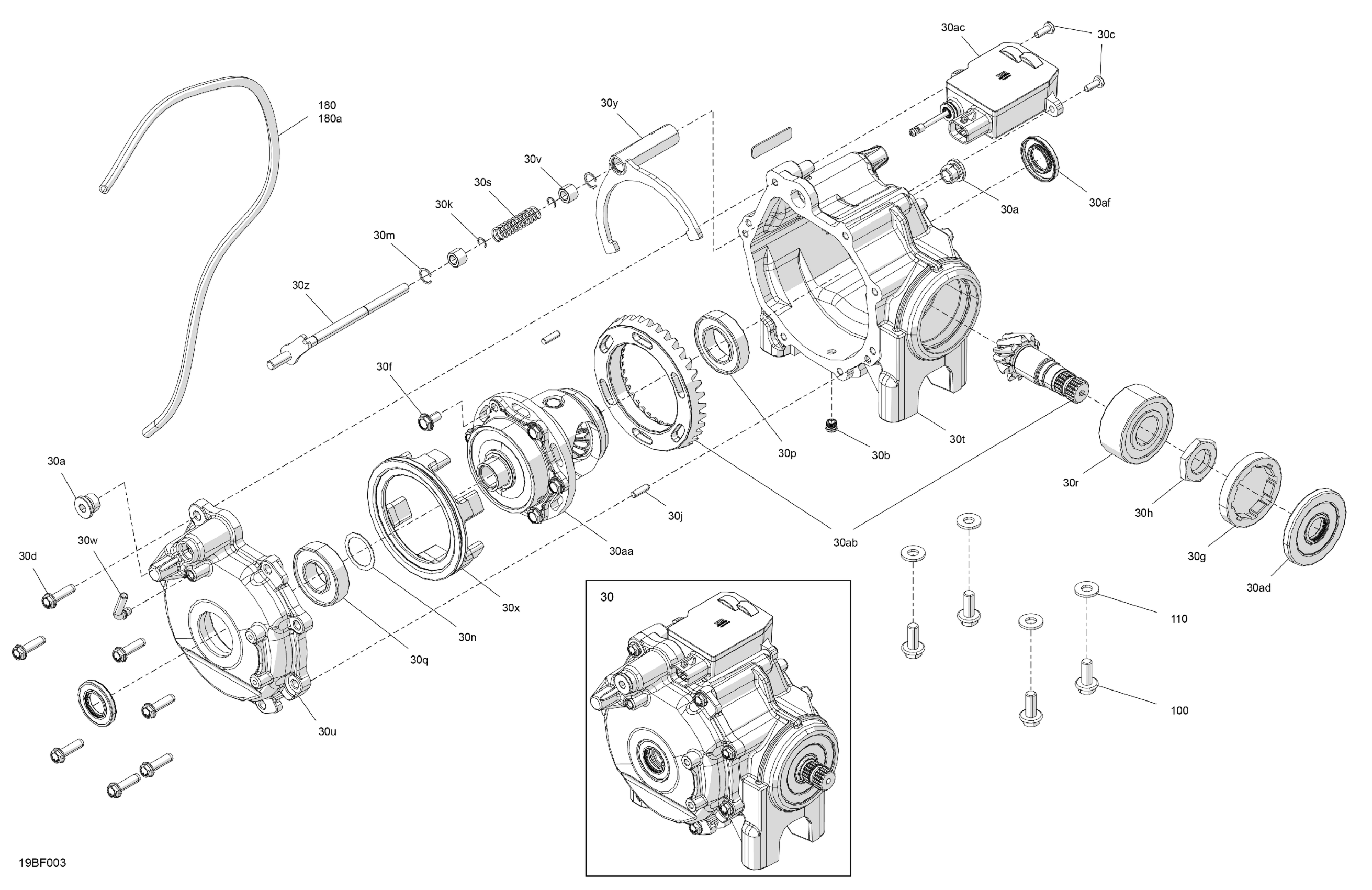

Can-Am Commander - 700 EFI - DPS - 9PTA - Compass Green - 60" Width - CALI, 2026 Drive - Front - Differential Parts Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30af

705403644

$1,407.66

30a

Fill Level Plug

705501889

$18.43

30b

Fill Level Plug M10

715900563

$27.66

30c

Torx Screw M6 X 16

705402845

$10.14

30d

Bolt

705501886

$6.75

30f

Custom Hex Screw Flange Head

715900798

$2.75

30g

Nut M75 X 1.5

705401819

$23.05

30h

Nut M27 X 1.5

705401820

$23.05

30j

Dowel Pin

715900559

$6.45

30k

Ring External Shaft

715900719

$27.66

30m

Ring, Internal Spiral Housing

715900720

$27.66

30n

Shim | 4X4

705401604

$55.35

30p

Ball Bearing

705402847

$46.12

30q

Ball Bearing | 4X4

705401606

$49.20

30r

Ball Bearing

715900721

$64.59

30s

Spring

715900722

$69.20

30t

Case

715900723

$152.28

30u

Cover

715900724

$143.05

30v

Bushing

715900725

$18.43

30w

Vent Valve

705401935

$14.37

30x

Ring Gear Connector

715900819

$170.74

30y

Disconnect Fork

715900727

$89.97

30z

Shift Rail

715900728

$32.28

30aa

Differential Sub-Assembly

715900729

$904.58

30ab

Ring Gear And Pinion Set

715900820

$392.28

30ac

Actuator

715900953

$221.51

30ad

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

30af

Oil Seal

705401836

$7.37

100

Hex. Flange Screw M10 X 25

207502546

$1.74

110

Conical Spring Washer 10 mm

234201474

$1.39

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

180a

Not Available As Spare Parts

XXX

Unavailable
