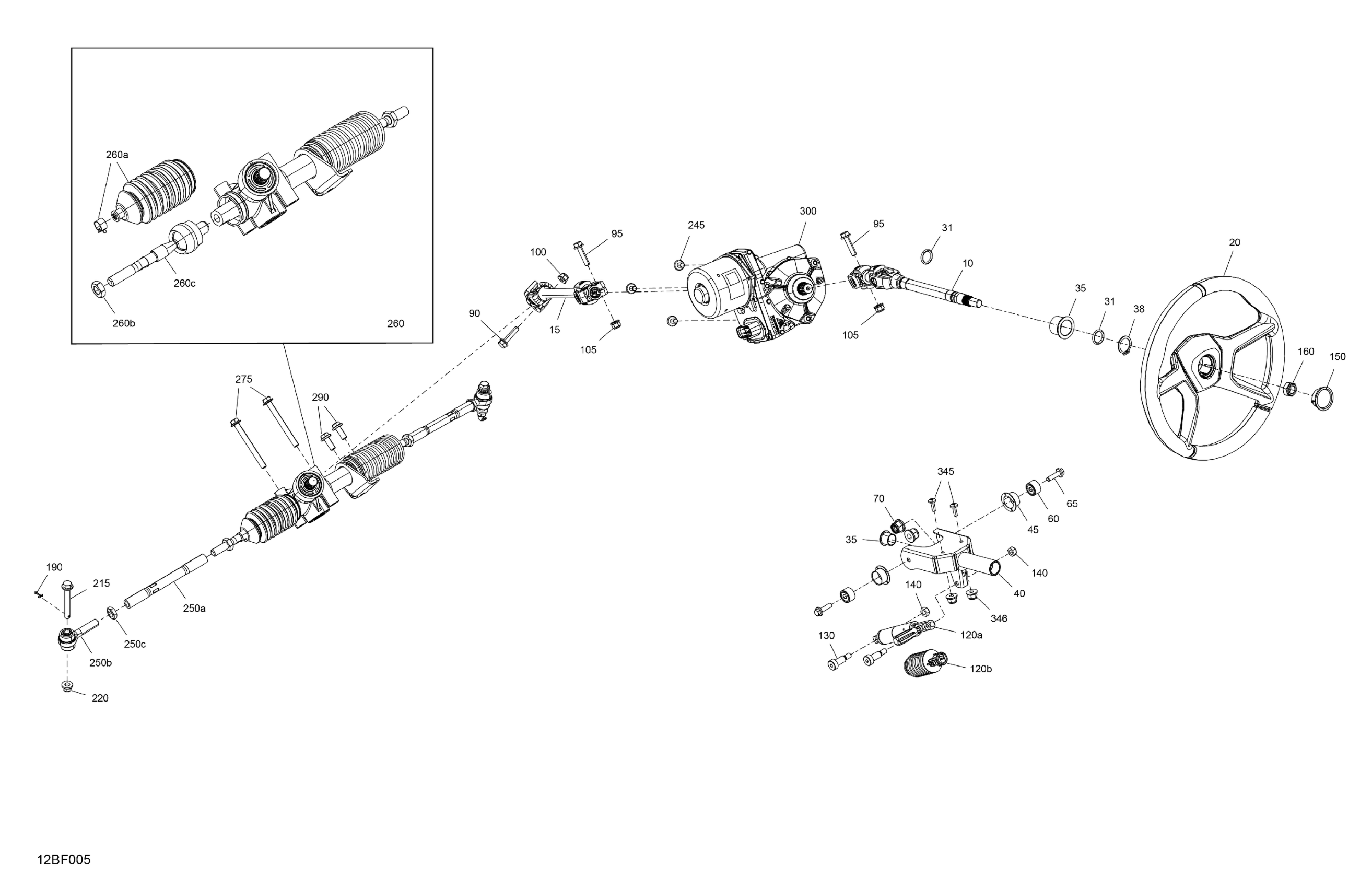

Can-Am Maverick Trail - 1000 EFI - DPS - 7FTB - Timeless Black Metallic - 50" Width, 2026 Mechanic - Steering Diagram

Description

Price

Steering Column Ass'y

709403021

$189.99

Steering Column Ass'y

709403023

$189.99

Steering Wheel

709401966

$529.49

O-Ring

293300144

$3.82

Steering Bushing

709402725

$3.28

Circlip

293370110

$2.61

Steering Support

709401602

$83.99

Bushing

709401603

$8.85

Bushing

709401604

$5.89

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 35

250001021

$4.44

Hex. Flange Screw M8 X 35

250001021

$4.44

100

Hex. Elastic Flange Nut M8

233281416

$1.48

105

Hex. Elastic Flange Nut M8

233281416

$1.48

120a

Adjustment Cylinder

709402506

$72.99

120b

Boot Tube Side

709401232

$18.99

130

Socket Head Screw M8 X 16

250000669

$3.17

140

Elastic Stop Nut M6

232561414

$0.55

150

Steering Cap

709401514

$19.49

160

Elastic Lock Nut M16

232511414

$2.00

190

Cotter Pin

211400017

$0.33

215

Screw Hex Cap M10 X 75

250000814

$4.76

220

Hex. Flange Elastic Nut M10

233201436

$2.11

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

250a

Connection Rod

709401990

$22.99

250b

Ball Joint

709401991

$52.99

250c

Steering Rod Nut

715900238

$2.30

260

Rack And Pinion Steering Ass'y | Includes 260 to 260c

709402451

$466.49

260a

Pinion Side Boot Kit

715900836

$54.99

260b

Steering Rod Nut

715900238

$2.30

260c

Tie Rod

715900838

$71.99

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

290

Hex. Flange Screw M10 X 25

207502546

$2.11

300

Power Steering Ass'y

709403212

$2,119.99

345

Torx Screw M6 X 20

250000712

$2.11

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
