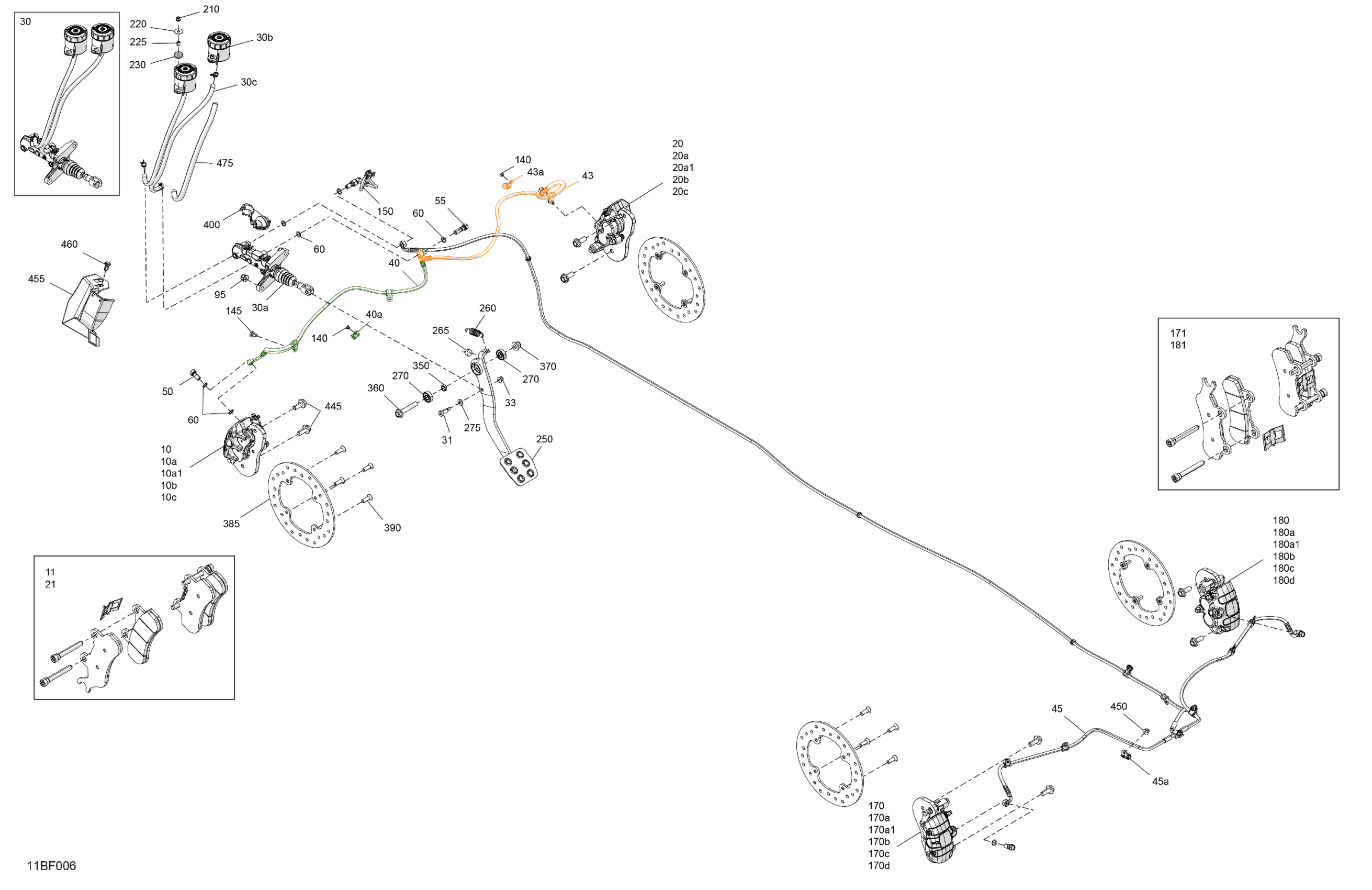

Can-Am Maverick Trail - 1000 EFI - DPS - 7FTB - Timeless Black Metallic - 50" Width, 2026 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$230.74

10a

LH Brake Pads

715900379

$111.51

10a1

Pin Kit | Packages STD & PRO

715900384

$10.98

10b

Bleeding Screw

705601017

$6.45

10c

Cap Spring Kit

715900385

$17.66

11

Front Brake Pad Set

703501198

$110.67

20

RH Front Brake Caliper | Includes 20 to 20c

705602181

$230.74

20a

RH Brake Pads

715900380

$110.67

20a1

Pin Kit | Packages STD & PRO

715900384

$10.98

20b

Bleeding Screw

705601017

$6.45

20c

Cap Spring Kit

715900385

$17.66

21

Front Brake Pad Set

703501198

$110.67

30

Master Cylinder Ass'y | Includes 30 to 30c

705602307

$272.28

30a

Master Cylinder

705602306

$276.89

30b

Oil Tank

705601020

$36.89

30c

Housing Oil Hose

705601866

$15.35

31

Socket Head Screw M8 X 16

250000669

$2.61

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

LH Front Caliper Hose | Includes 40 to 40a

705601852

$78.43

40a

Clamp

293650256

$4.36

43

RH Front Caliper Hose | Includes 43 to 43a

705601853

$83.05

43a

Clamp

293650256

$4.36

45

Rear Caliper Hose | Includes 45 to 45a

705601956

$152.28

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

55

Double Banjo Bolt

705601723

$7.60

60

Copper Washer

705601628

$4.34

95

Hex. Elastic Flange Nut M8

233281416

$1.25

140

Pop Rivet 3/16 X ,425

293150293

$0.26

145

Hex. Flange Screw M6 X 10

210261040

$1.25

150

Brake Switch

705601250

$59.97

170

LH Rear Brake Caliper | Includes 170 to 170d

705602184

$210.74

170a

LH Brake Pads

715900386

$110.67

170a1

Pin Kit | Packages STD & PRO

715900384

$10.98

170b

Pin Kit | Packages STD & PRO

715900384

$10.98

170c

Bleeding Screw

705601017

$6.45

170d

Cap Spring Kit

715900385

$17.66

171

Rear Brake Pad Set

703501199

$110.67

180

RH Rear Brake Caliper | Includes 180 to 180d

705602185

$210.74

180a

RH Brake Pads

715900387

$110.67

180a1

Pin Kit | Packages STD & PRO

715900384

$10.98

180b

Pin Kit | Packages STD & PRO

715900384

$10.98

180c

Bleeding Screw

705601017

$6.45

180d

Cap Spring Kit

715900385

$17.66

181

Rear Brake Pad Set

703501199

$110.67

210

Elastic Flange Nut M5

233251494

$1.74

220

Flat Washer

250200040

$1.82

225

Bushing

293900112

$10.14

230

Grommet

414036300

$2.22

250

Brake Pedal

705601537

$55.35

260

Brake Pedal Spring

705600792

$9.22

265

Rubber Stopper

708000759

$3.61

270

Bearing

705600458

$7.03

275

Nylon Flat Washer M8

250200183

$1.28

350

Bushing

705601622

$14.75

360

Hex. Flange Screw M10 X 55

207605546

$1.74

370

Hex. Flange Elastic Nut M10

233201436

$1.74

385

Brake Disc

705601511

$104.49

390

Torx Screw M8 X 25, Scotch Grip

250000143

$1.77

400

Hose Support

705601750

$4.60

445

Hex. Flange Screw M10 X 25

207502546

$1.74

450

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

455

Master Cylinder Deflector

705601626

$6.92

460

Tuflok Plastic Rivet

293150230

$1.21

475

Tubing 10 MM 1000MM Long

219704407

$2.20
