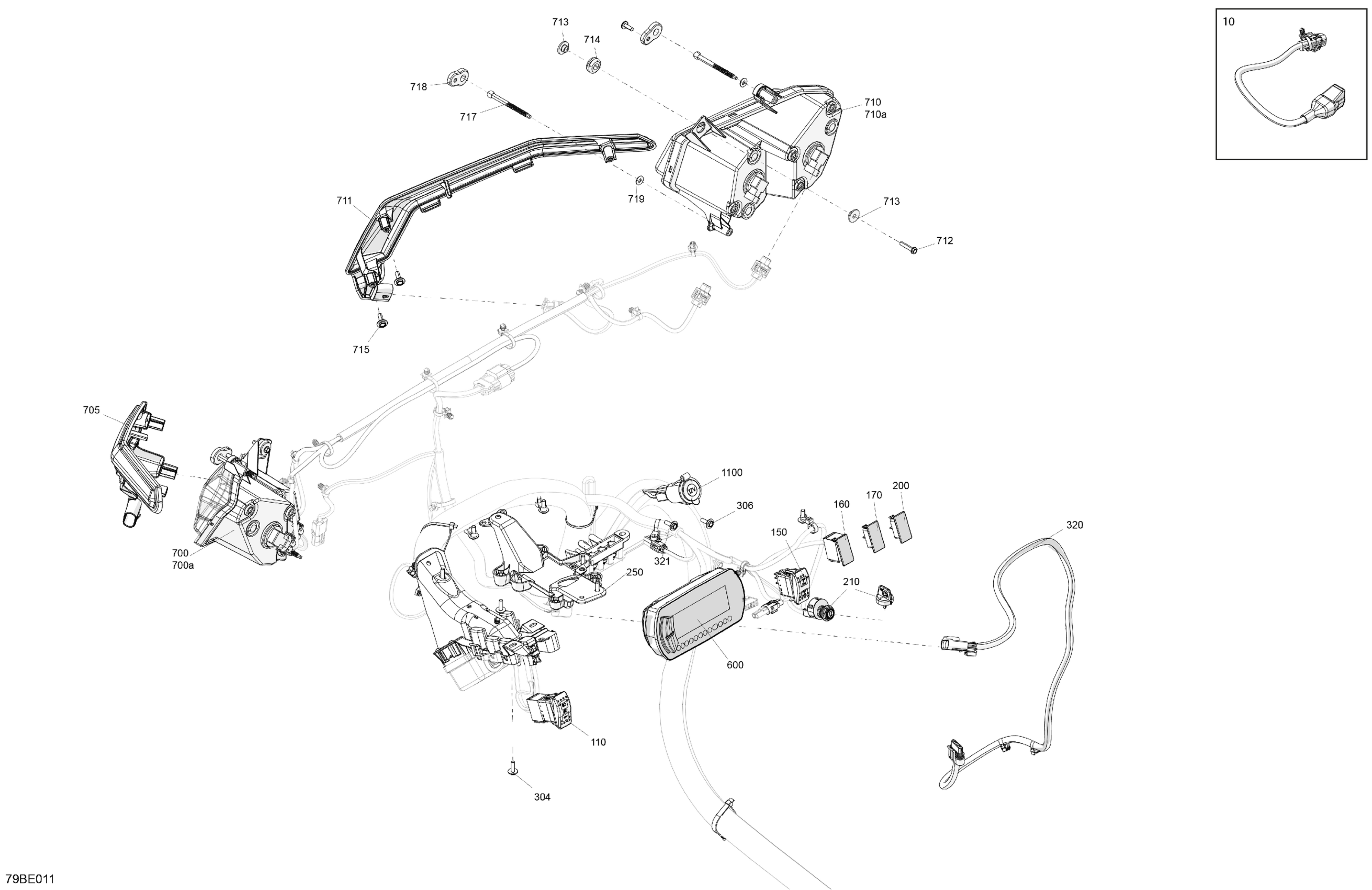

Can-Am Maverick Trail - 700 - DPS - 7HSA - Timeless Black Metallic - 50" Width CALI, 2025 Electric - Front Section Diagram

Wiring Harness

710007655

$23.85

Elastic Stop Nut M6, Brass

232561200

$4.03

Headlights Switch

710007022

$64.15

Switch 2X4

710005489

$29.82

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Specialized Nut

710007923

$1.99

Ignition Switch | Includes 210 to 210b

710007324

$61.16

Housing Support

710005672

$7.81

Screw PT Type K-50 X 16

250000959

$2.00

Screw PT Type K-50 X 16

250000959

$2.00

Trottle Pedal Harness

710005929

$211.91

Screw PT Type K-50 X 16

250000959

$2.00

Multifunction Compact Gauge

710008296

$362.66

LH Headlamp | Includes 700 to 700a

710008230

$177.58

Bulb 12V 55W

715900141

$38.78

LH Fascia Trim

705011485

$39.52

RH Headlamp | Includes 710 to 710a

710008231

$177.58

Bulb 12V 55W

715900141

$38.78

RH Fascia Trim

705011486

$39.52

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

Shoulder Bushing

710004749

$2.69

Overmolded Grommet

293720130

$4.25

Screw PT Type K-50 X 16

250000959

$2.00

Ajustment Screw

710005837

$5.90

Ball Socket

293900157

$7.88

O-Ring

293300192

$3.81

12V Power Outlet

710005374

$31.31
