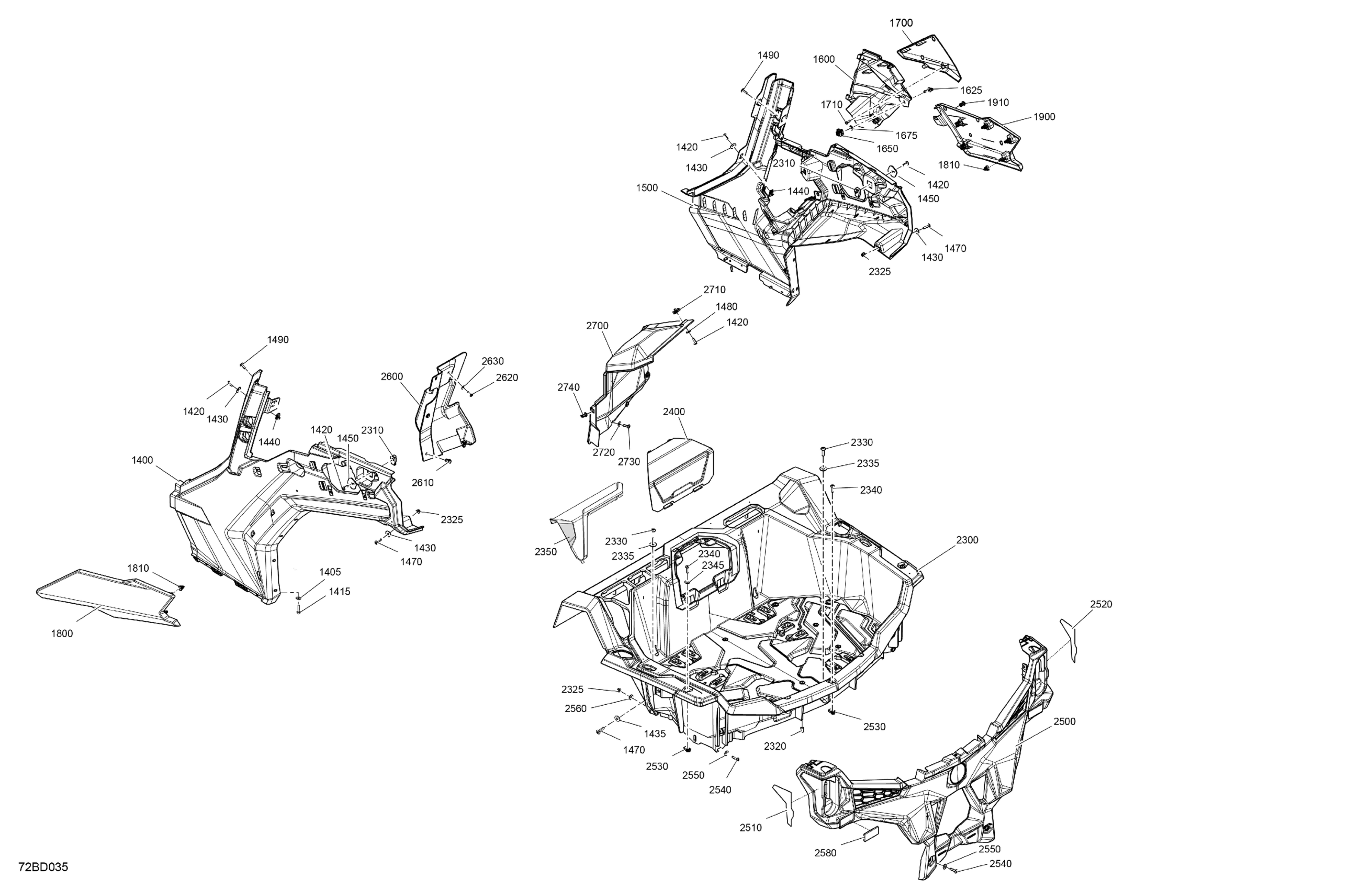

Can-Am International - Maverick Trail 1000 - BASE - 7FRB - Fiery Red Metallic - 50" Width, 2024 Body - Rear Section Diagram

Description

Price

1400

LH Rear Panel

705011335

$204.99

1405

Washer

503192494

$3.17

1415

Hex. Flange Screw M6 X 25

207662554

$1.48

1420

Torx Screw M6 X 20

250000722

$1.68

1430

Flat Washer M6.6 X 22

250200162

$2.32

1435

Stainless Steel Flat Washer

234062670

$2.11

1440

Panel Nut M6 X 1.0

250100198

$2.11

1450

Support Plate

705003841

$0.99

1470

Torx Truss Screw M6 X 25

250000807

$2.11

1480

Stainless Steel Flat Washer

234062670

$2.11

1490

Black, Dart

414644300

$0.98

1500

RH Rear Panel

705011336

$204.99

1600

Air Filter Acces Door

705011338

$75.99

1625

Quarter Turn

708400278

$4.29

1650

Clip

708400285

$3.99

1675

Washer

708400286

$3.99

1700

Timeless Black, Acces Panel Trim

705015587

$109.99

1710

Torx Screw K50 X 16

250000720

$1.69

1800

Timeless Black, LH Open Carrier Trim

705015592

$184.99

1810

Clip

517306478

$1.09

1900

Timeless Black, RH Open Carrier Trim

705015597

$184.99

1910

Tuflok Plastic Rivet

293150230

$1.47

2300

Rear Box

705016885

$399.99

2310

Panel Nut M6 X 1.0

250100224

$2.11

2320

Hex. Coupling Nut M6

250100207

$2.00

2325

Hex. Elastic Flange Nut M6

233161464

$1.01

2330

Hex Torx Truss M8 X30

250000745

$3.17

2335

Stainless Steel Flat Washer

234082670

$2.11

2340

Torx Truss Screw M6 X 25

250000807

$2.11

2345

Stainless Steel Flat Washer

234062670

$2.11

2350

CVT Air Inlet Cover

705011339

$18.99

2400

Access Cover Kit

715006766

$27.99

2500

Rear Fascia

705016944

$159.99

2510

LH Rear Reflector

704906815

$14.49

2520

RH Rear Reflector

704906816

$13.49

2530

Panel Nut M6 X 1.0

250100198

$2.11

2540

Torx Truss Screw M6 X 25

250000807

$2.11

2550

Stainless Steel Flat Washer

234062670

$2.11

2560

Stainless Steel Flat Washer

234062670

$2.11

2580

Red Reflector

520001820

$20.99

2600

LH Rear Wheel Arch Protector

705015886

$45.49

2610

Tuflok Plastic Rivet

293150230

$1.47

2620

Torx Screw K50 X 16

250000720

$1.69

2630

Washer M5

250200025

$0.74

2700

RH Rear Wheel Arch Protector

705016135

$45.49

2710

Panel Nut M6 X 1.0

250100198

$2.11

2720

Stainless Steel Flat Washer

234062670

$2.11

2730

Torx Truss Screw M6 X 25

250000807

$2.11

2740

Tuflok Plastic Rivet

293150230

$1.47
