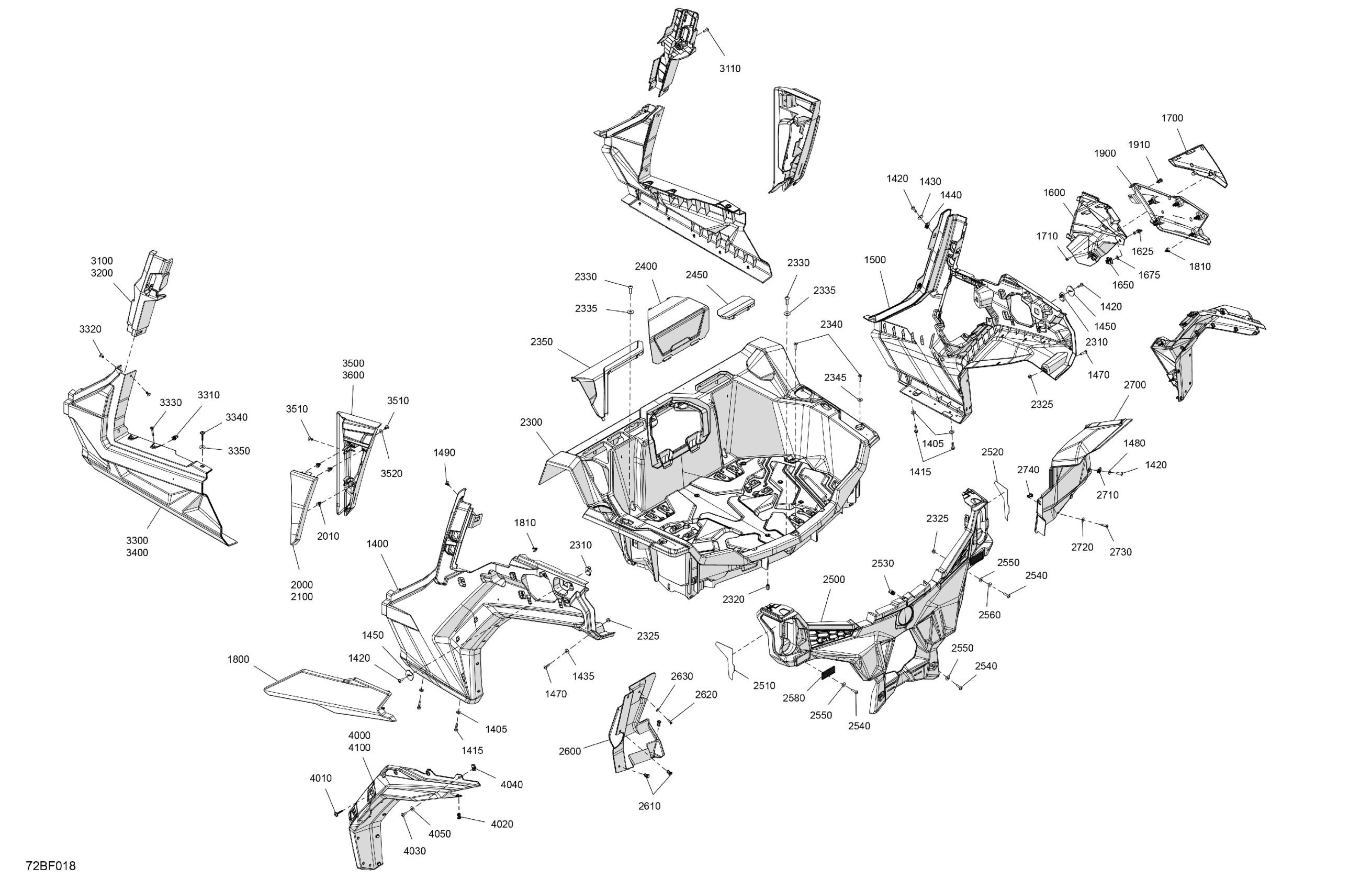

Can-Am Maverick Sport MAX - 1000R EFI - DPS - 9JTB - Timeless Black Metallic - 60" Width - CALI, 2026 Body - Rear Section Diagram

#

Description
Price

1400

LH Rear Panel

705011335

$189.97

1405

Washer

503192494

$3.11

1415

Hex. Flange Screw M6 X 25

207662554

$1.48

1420

Torx Screw M6 X 20

250000722

$1.34

1430

Flat Washer M6.6 X 22

250200162

$1.91

1435

Stainless Steel Flat Washer

234062670

$1.74

1440

Panel Nut M6 X 1.0

250100198

$1.73

1450

Support Plate

705003841

$0.91

1470

Torx Truss Screw M6 X 25

250000807

$1.74

1480

Stainless Steel Flat Washer

234062670

$1.74

1490

Black, Dart

414644300

$0.78

1500

RH Rear Panel

705011336

$189.97

1600

Air Filter Acces Door

705011338

$73.82

1625

Quarter Turn

708400278

$4.98

1650

Clip

708400285

$4.02

1675

Washer

708400286

$4.02

1700

Timeless Black, Access Panel Trim

705019685

$100.74

1710

Torx Screw K50 X 16

250000720

$1.39

1800

Timeless Black, LH Open Carrier Trim

705019686

$167.66

1810

Clip

517306478

$1.37

1900

Timeless Black, RH Open Carrier Trim

705019687

$167.66

1910

Tuflok Plastic Rivet

293150230

$1.21

2000

Timeless Black, LH Rear Panel Trim

705019677

$126.89

2010

Clip

517306478

$1.37

2100

Timeless Black, RH Rear Panel Trim

705019678

$126.89

2300

Rear Box

705016885

$373.82

2310

Panel Nut M6 X 1.0

250100224

$1.70

2320

Hex. Coupling Nut M6

250100207

$1.94

2325

Hex. Elastic Flange Nut M6

233161464

$0.83

2330

Hex Torx Truss M8 X30

250000745

$3.05

2335

Stainless Steel Flat Washer

234082670

$1.74

2340

Torx Truss Screw M6 X 25

250000807

$1.74

2345

Stainless Steel Flat Washer

234062670

$1.74

2350

CVT Air Inlet Cover

705011339

$16.12

2400

Liquid Acces Cover

705011341

Unavailable

2450

Air Intake Cover

705011340

$13.85

2500

Rear Fascia

705011426

$157.66

2510

LH Rear Reflector

704906815

$11.00

2520

RH Rear Reflector

704906816

$11.15

2530

Panel Nut M6 X 1.0

250100198

$1.73

2540

Torx Truss Screw M6 X 25

250000807

$1.74

2550

Stainless Steel Flat Washer

234062670

$1.74

2560

Stainless Steel Flat Washer

234062670

$1.74

2580

Red Reflector

520001820

$17.66

2600

LH Rear Wheel Arch Protector

705015886

$42.28

2610

Tuflok Plastic Rivet

293150230

$1.21

2620

Torx Screw K50 X 16

250000720

$1.39

2630

Washer M5

250200025

$0.61

2700

RH Rear Wheel Arch Protector

705016135

$42.28

2710

Panel Nut M6 X 1.0

250100198

$1.73

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Torx Truss Screw M6 X 25

250000807

$1.74

2740

Tuflok Plastic Rivet

293150230

$1.21

3100

LH Median Side Panel

705011430

$106.12

3110

Torx Screw M6 X 20

250000722

$1.34

3200

RH Median Side Panel

705011431

$106.12

3300

LH Rear Rocker Panel

705013190

$87.66

3310

Panel Nut M6 X 1.0

250100198

$1.73

3320

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

3330

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

3340

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

3350

Flat Washer M6.6 X 22

250200162

$1.91

3400

RH Rear Rocker Panel

705013191

$87.66

3500

LH Rear Fixed Panel

705013140

$46.12

3510

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

3520

Washer M5

250200025

$0.61

3600

RH Rear Fixed Panel

705013141

$46.12

4000

LH Rear Mud Guard

705019030

$55.35

4010

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

4020

Tuflok Plastic Rivet

293150230

$1.21

4030

Torx Screw M6 X 20

250000722

$1.34

4040

Panel Nut M6 X 1.0

250100198

$1.73

4050

Stainless Steel Flat Washer

234062670

$1.74

4100

RH Rear Mud Guard

705019031

$55.35
