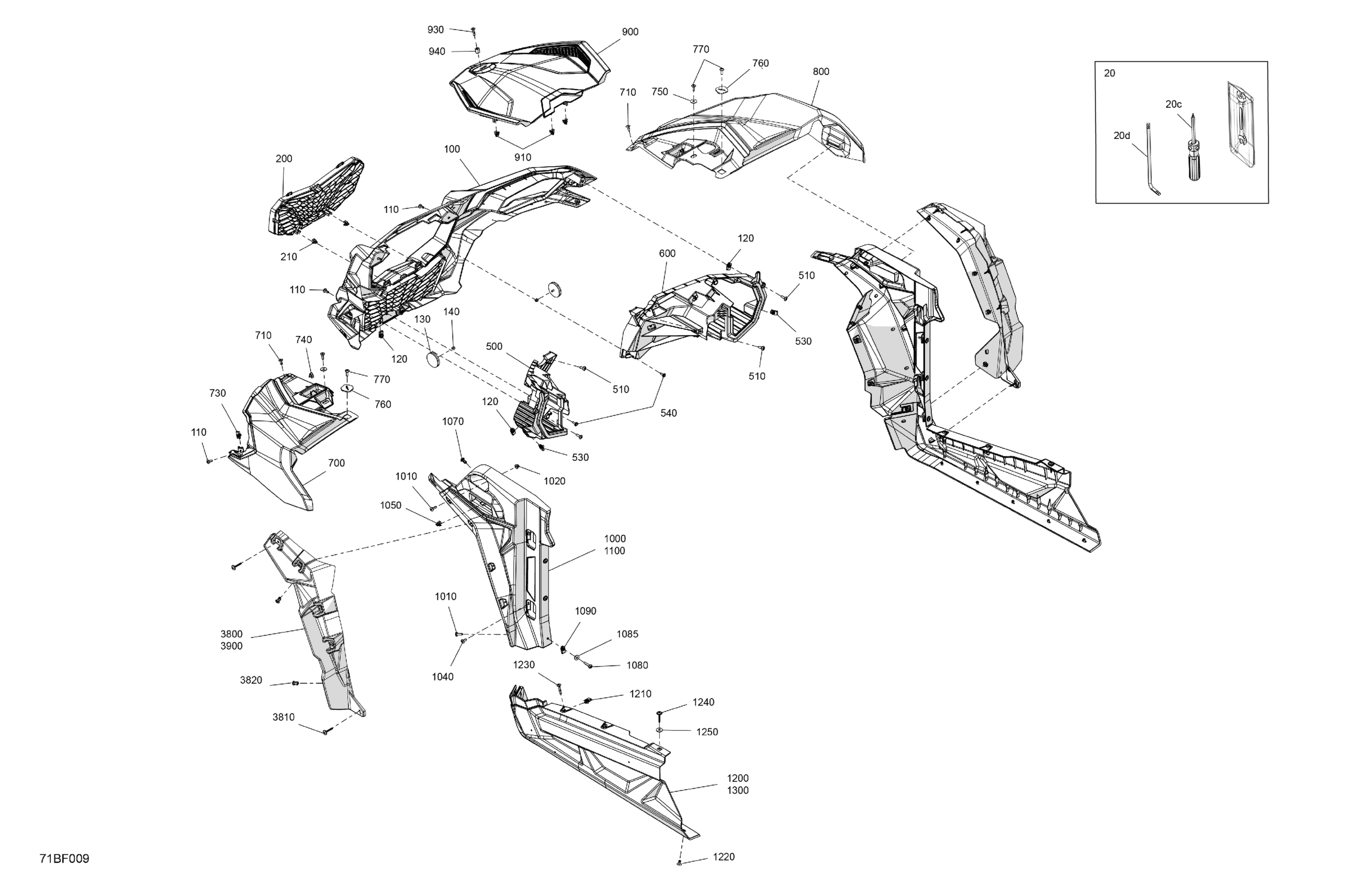

Can-Am Maverick Sport - 1000R EFI - DPS - 9GTB - Timeless Black Metallic - 60" Width, 2026 Body - Front Section Diagram

Description

Price

Tool Kit | Includes 90 to 90f

704700182

$70.99

20c

Screw Driver

529000021

$3.29

20d

Torx Key T30

708200340

$1.28

100

Front Fascia

705011317

$269.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

130

Amber Reflector

705017809

$14.49

140

Elastic Flange Nut M5

233251494

$2.11

200

Fascia Removable Grid

705011318

$219.99

210

Clip

517306478

$1.09

500

LH Headlamp Structure

705011319

$229.99

510

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100198

$2.11

540

Screw PT Type K-50 X 16

250000959

$2.11

600

RH Headlamp Structure

705011320

$229.99

700

Timeless Black, LH Front Fender

705019683

$204.99

710

Torx Truss Screw M6 X 16

250000721

$1.69

730

Panel Nut M6 X 1.0

250100198

$2.11

740

Clip

517306478

$1.09

750

Flat Washer M6.6 X 22

250200162

$2.32

760

Support Plate

705003841

$0.99

770

Torx Screw M6 X 20

250000722

$1.68

800

Timeless Black, RH Front Fender

705019684

$204.99

900

Removable Hood

705011322

$109.99

910

Clip

517306478

$1.09

930

Torx Truss Screw M6 X 25

250000807

$2.11

940

Bushing

705502616

$10.49

1000

LH Front Mudguard

705011323

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1050

Clip

517306478

$1.09

1070

Tuflok Plastic Rivet

293150230

$1.47

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1085

Stainless Steel Flat Washer

234062670

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mudguard

705011324

$56.99

1200

LH Front Rocker Panel

705019026

$79.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

1220

Black, Ornit Rivet 3/16 X ,925 This part replaces 293150307.

293150307

$2.11

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

1250

Flat Washer M6.6 X 22

250200162

$2.32

1300

RH Front Rocker Panel

705019027

$77.49

3800

LH Front Mud Guard

705019029

$56.99

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

3820

Tuflok Plastic Rivet

293150230

$1.47

3900

RH Front Mud Guard

705019028

$13.77
