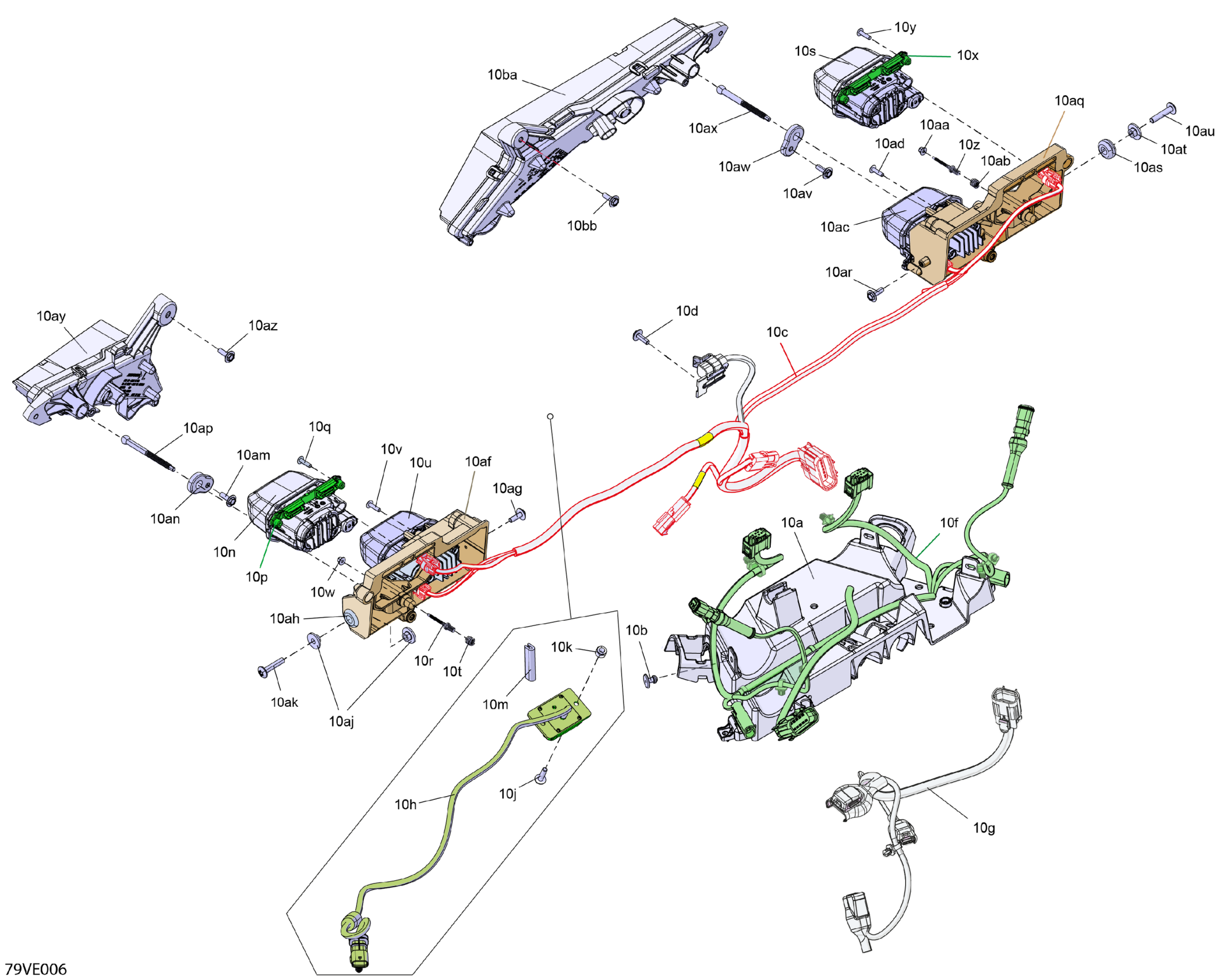

Can-Am International - Maverick R MAX - 996NT2 - XRS SAS - 7DSS - Dusty Navy - 77" Width, 2025 08- Electric - Front Section Diagram

#

Description

Price

10a

Multi Porpuse Support

710007813

Unavailable

10b

Black, Pop Rivet 3/16 X ,550

293150292

Unavailable

10c

Headlight Wiring Harness

710008962

Unavailable

10d

Screw PT Type K-50 X 16

250000959

Unavailable

10f

Junction Wiring Harness

710009627

Unavailable

10g

Differential Wiring Harness

710007357

Unavailable

10h

Camera

710007892

Unavailable

10j

Torx Head Screw M4 X 16

250000797

Unavailable

10k

Elastic Stop Nut M4

232541484

Unavailable

10m

Edge Cut Trim 1000Mm

219704548

Unavailable

10n

Low Beam Light

710008089

Unavailable

10p

Support Pivot | Not Shown

517309049

Unavailable

10q

Torx-Truss Pt K40 X 16

250000759

Unavailable

10r

Threaded Rod | Not Shown

517309133

Unavailable

10s

Specialized Nut | Not Shown

517309134

Unavailable

10t

Compression Spring | Not Shown

517309058

Unavailable

10u

High Beam Light

710006911

Unavailable

10v

Torx-Truss Pt K40 X 16

250000759

Unavailable

10w

Low Beam Light

710008089

Unavailable

10x

Support Pivot | Not Shown

517309049

Unavailable

10y

Torx-Truss Pt K40 X 16

250000759

Unavailable

10z

Threaded Rod | Not Shown

517309133

Unavailable

10aa

Specialized Nut | Not Shown

517309134

Unavailable

10ab

Compression Spring | Not Shown

517309058

Unavailable

10ac

High Beam Light

710006911

Unavailable

10ad

Torx-Truss Pt K40 X 16

250000759

Unavailable

10af

LH Front Headlight Support

708500087

Unavailable

10ag

Screw PT Type K-50 X 16

250000959

Unavailable

10ah

Overmolded Grommet

293720130

Unavailable

10aj

Shoulder Bushing

710004749

Unavailable

10ak

Stainless, Torx Screw M6 X 30

250000842

Unavailable

10am

Screw PT Type K-50 X 16

250000959

Unavailable

10an

Ball Socket

293900157

Unavailable

10ap

Ajustment Screw

710005837

Unavailable

10aq

RH Front Headlight Support

708500088

Unavailable

10ar

Screw PT Type K-50 X 16

250000959

Unavailable

10as

Overmolded Grommet

293720130

Unavailable

10at

Shoulder Bushing

710004749

Unavailable

10au

Stainless, Torx Screw M6 X 30

250000842

Unavailable

10av

Screw PT Type K-50 X 16

250000959

Unavailable

10aw

Ball Socket

293900157

Unavailable

10ax

Ajustment Screw

710005837

Unavailable

10ay

LH Auxiliary LED Light

710007638

Unavailable

10az

Screw PT Type K-50 X 16

250000959

Unavailable

10ba

RH Auxiliary LED Light

710007644

Unavailable

10bb

Screw PT Type K-50 X 16

250000959

Unavailable
