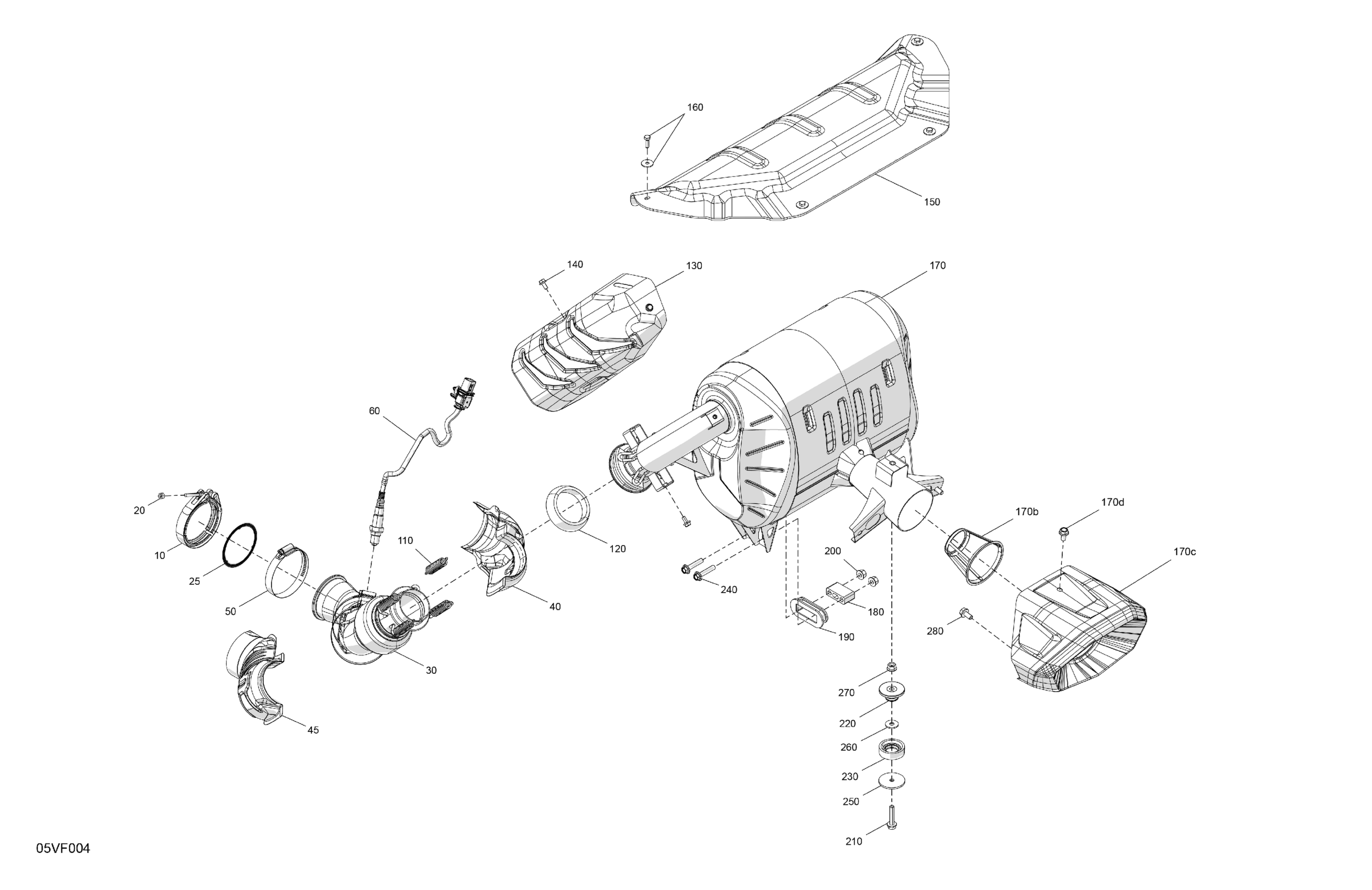

Can-Am Maverick R - 996NT2 - XRC - 7GTB - Loft Green Satin - 77" Width, 2026 Engine - Exhaust Diagram

Description

Price

Exhaust Clamp

707603708

$60.49

Nut

707602143

$6.19

Seal

707601835

$38.99

Exhaust Pipe

707602877

$900.99

Lower Heat Shield

707603578

$289.99

Upper Heat Shield

707603579

$289.99

Clamp

293650259

$14.31

Oxygen Sensor

707602926

$164.99

110

Spring

707601834

$6.35

120

Joint

707603140

$18.49

130

Lateral Heat Shield

707602881

$289.99

140

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

150

Heat Shield

707603450

$104.99

160

Hex Sems Screw M6X20

250001165

$3.91

170

Exhaust Muffler Ass'y | Includes 170 to 170d

707603601

$847.49

170b

Spark Arrestor

707603567

$35.99

170c

Muffler End Piece

707603272

$42.49

170d

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

180

Muffler Stopper

707603214

$13.49

190

Vibration Damper

707603488

$19.49

200

Hex. Flange Nut M8

233081416

$1.15

210

Hex. Flange Screw M8 X 40

207684044

$1.48

220

Anti Vibration Mount

707003062

$27.49

230

Rubber Mount

707603383

$14.81

240

Hex. Flange Screw M8 X 40

207684044

$1.48

250

Flat Washer M8

250200180

$2.29

260

Flat Washer 8 mm

234082410

$1.47

270

Hex. Flange Nut M8

233081416

$1.15

280

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15
