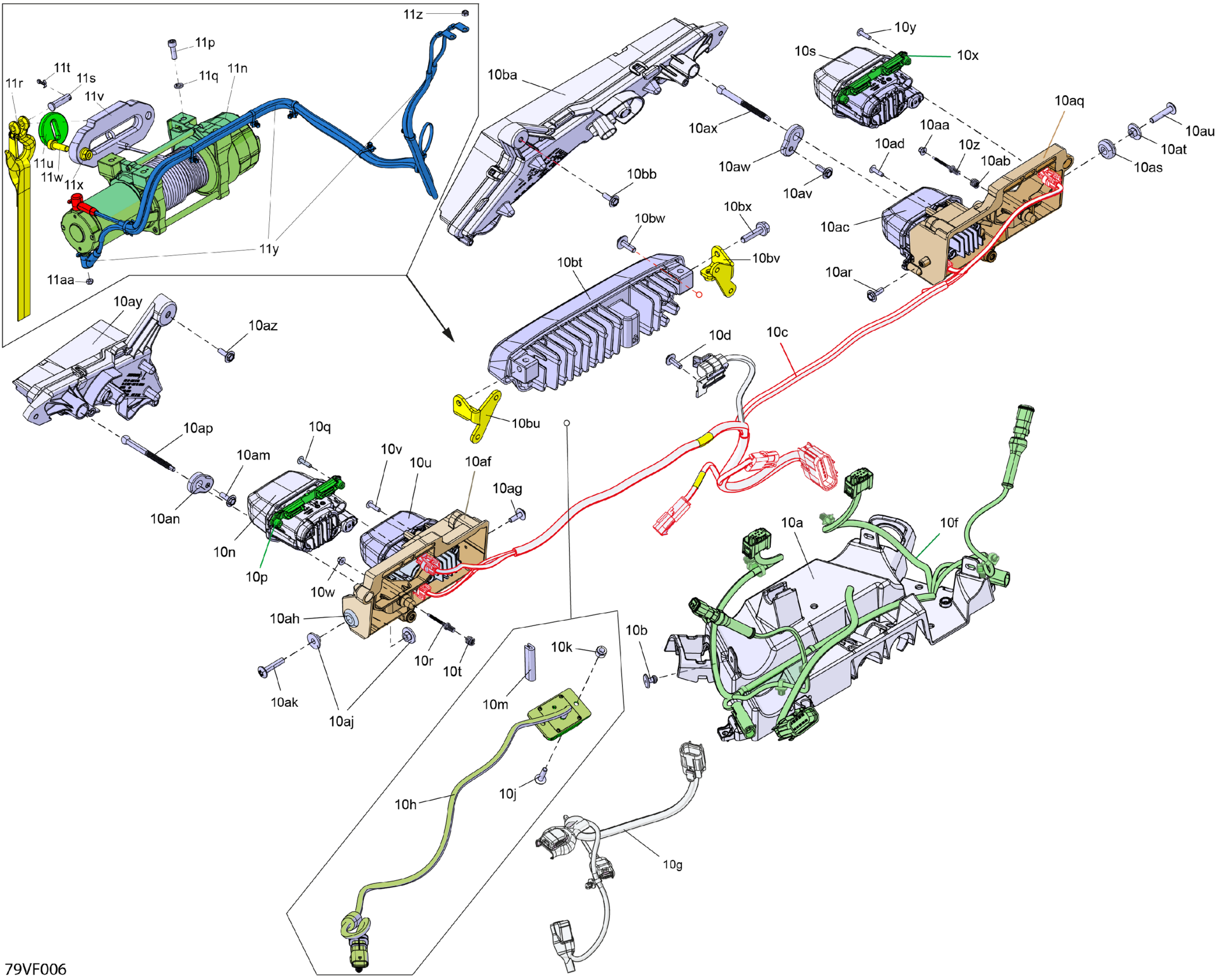

Can-Am Maverick R - 996NT2 - XRC SAS - 7GTC - Loft Green Satin - 77" Width - CALI, 2026 Electric - Front Section Diagram

#

Description
Price

10a

Multi Purpose Support

710011284

$16.89

10b

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

10c

Headlight Wiring Harness

710008962

$115.35

10d

Screw PT Type K-50 X 16

250000959

$1.74

10f

Junction Wiring Harness

710009627

$410.74

10g

Differential Wiring Harness

710007357

$46.12

10h

Camera

710007892

$279.99

10j

Torx Head Screw M4 X 16

250000797

$1.63

10k

Elastic Stop Nut M4

232541484

$0.61

10m

Edge Cut Trim 1000Mm

219704548

Unavailable

10n

Low Beam Light

710008088

$156.89

10p

Support Pivot | Not Shown

517309049

$2.66

10q

Torx-Truss Pt K40 X 16

250000759

$1.74

10r

Threaded Rod | Not Shown

517309133

$6.20

10s

Specialized Nut | Not Shown

517309134

$0.98

10t

Compression Spring | Not Shown

517309058

$7.23

10u

HIgh Beam Light

710006910

$156.89

10v

Torx-Truss Pt K40 X 16

250000759

$1.74

10w

Low Beam Light

710008088

$156.89

10x

Support Pivot | Not Shown

517309049

$2.66

10y

Torx-Truss Pt K40 X 16

250000759

$1.74

10z

Threaded Rod | Not Shown

517309133

$6.20

10aa

Specialized Nut | Not Shown

517309134

$0.98

10ab

Compression Spring | Not Shown

517309058

$7.23

10ac

HIgh Beam Light

710006910

$156.89

10ad

Torx-Truss Pt K40 X 16

250000759

$1.74

10af

LH Front Headlight Support

708500155

$42.28

10ag

Screw PT Type K-50 X 16

250000959

$1.74

10ah

Overmolded Grommet

293720130

$4.38

10aj

Shoulder Bushing

710004749

$2.75

10ak

Stainless, Torx Screw M6 X 30

250000842

$1.74

10am

Screw PT Type K-50 X 16

250000959

$1.74

10an

Ball Socket

293900157

$8.45

10ap

Ajustment Screw

710005837

$6.45

10aq

RH Front Headlight Support

708500156

$42.28

10ar

Screw PT Type K-50 X 16

250000959

$1.74

10as

Overmolded Grommet

293720130

$4.38

10at

Shoulder Bushing

710004749

$2.75

10au

Stainless, Torx Screw M6 X 30

250000842

$1.74

10av

Screw PT Type K-50 X 16

250000959

$1.74

10aw

Ball Socket

293900157

$8.45

10ax

Ajustment Screw

710005837

$6.45

10ay

LH Auxiliary LED Light

710008305

Unavailable

10az

Screw PT Type K-50 X 16

250000959

$1.74

10ba

RH Auxiliary LED Light

710008306

Unavailable

10bb

Screw PT Type K-50 X 16

250000959

$1.74

10bt

Central Auxiliary LIght

710007904

$494.58

10bu

Light Support

710009933

$12.91

10bv

Light Support

710009934

$12.91

10bw

Screw PT Type K-50 X 16

250000959

$1.74

10bx

Hex Flange Screw M6 X 25

250000841

$6.15

11n

Electric Winch

710011630

$738.43

11p

Socket Head Screw M8 X 25

205082544

$0.92

11q

Lock Washer 8 mm

234181401

$0.89

11r

Winch Hook Kit

705014949

$27.66

11s

Winch Hook Kit

705014949

$27.66

11t

Winch Hook Kit

705014949

$27.66

11u

Stopper

710007028

$10.18

11v

Winch Rope Guide Kit

715006426

$59.97

11w

Socket Screw M10 x 30 | XT

205003044

$2.61

11x

Hex. Flange Elastic Nut M10

233201436

$1.74

11y

Winch Wiring Harness

710007671

$106.12

11z

Elastic Stop Nut M6, Brass

232561200

$3.51

11aa

Elastic Stop Nut M6, Brass

232561200

$3.51
