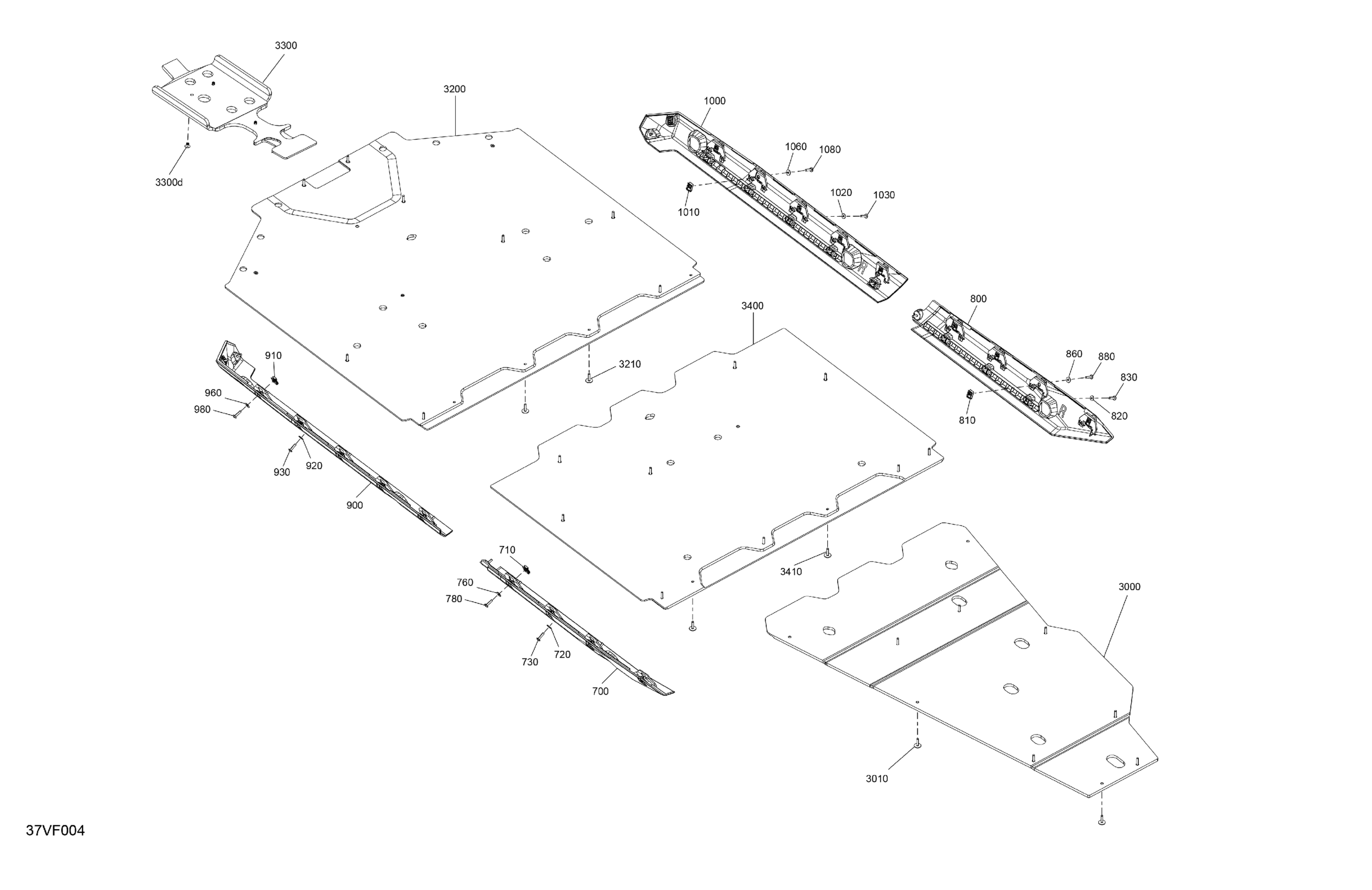

Can-Am Maverick R Max - 996NT2 - XRC - 7JTD - Loft Green Satin - 77" Width, 2026 Body - Skid Plate Diagram

Description

Price

700

Deep Black, LH Rear Rocker Panel Slider

705017472

$64.99

710

Panel Nut M6 X 1.0

250100208

$1.46

720

Stainless Steel Flat Washer

234062670

$2.11

730

Torx Truss Screw M6 X 25

250000807

$2.11

760

Stainless Steel Flat Washer

234062670

$2.11

780

Torx Truss Screw M6 X 25

250000807

$2.11

800

Deep Black, RH Rear Rocker Panel Slider

705017473

$73.99

810

Panel Nut M6 X 1.0

250100208

$1.46

820

Stainless Steel Flat Washer

234062670

$2.11

830

Torx Truss Screw M6 X 25

250000807

$2.11

860

Stainless Steel Flat Washer

234062670

$2.11

880

Torx Truss Screw M6 X 25

250000807

$2.11

900

Deep Black, LH Front Rocker Panel Slider

705017470

$64.99

910

Panel Nut M6 X 1.0

250100208

$1.46

920

Stainless Steel Flat Washer

234062670

$2.11

930

Torx Truss Screw M6 X 25

250000807

$2.11

960

Stainless Steel Flat Washer

234062670

$2.11

980

Torx Truss Screw M6 X 25

250000807

$2.11

1000

Deep Black, RH Front Rocker Panel Slider

705017471

$73.99

1010

Panel Nut M6 X 1.0

250100208

$1.46

1020

Stainless Steel Flat Washer

234062670

$2.11

1030

Torx Truss Screw M6 X 25

250000807

$2.11

1060

Stainless Steel Flat Washer

234062670

$2.11

1080

Torx Truss Screw M6 X 25

250000807

$2.11

3000

Rear Skid Plate

705212722

$224.49

3010

Screw Hex Sems Threadlock M6 X 30

250001348

$3.91

3200

Front Skid Plate

705019036

$381.49

3210

Screw Hex Sems Threadlock M6 X 30

250001348

$3.91

3300

Front Skid Plate Kit | Includes 3300 to 3300d

715010328

$381.49

3300d

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3400

Central Skid Plate

705212776

$239.49

3410

Screw Hex Sems Threadlock M6 X 30

250001348

$3.91
