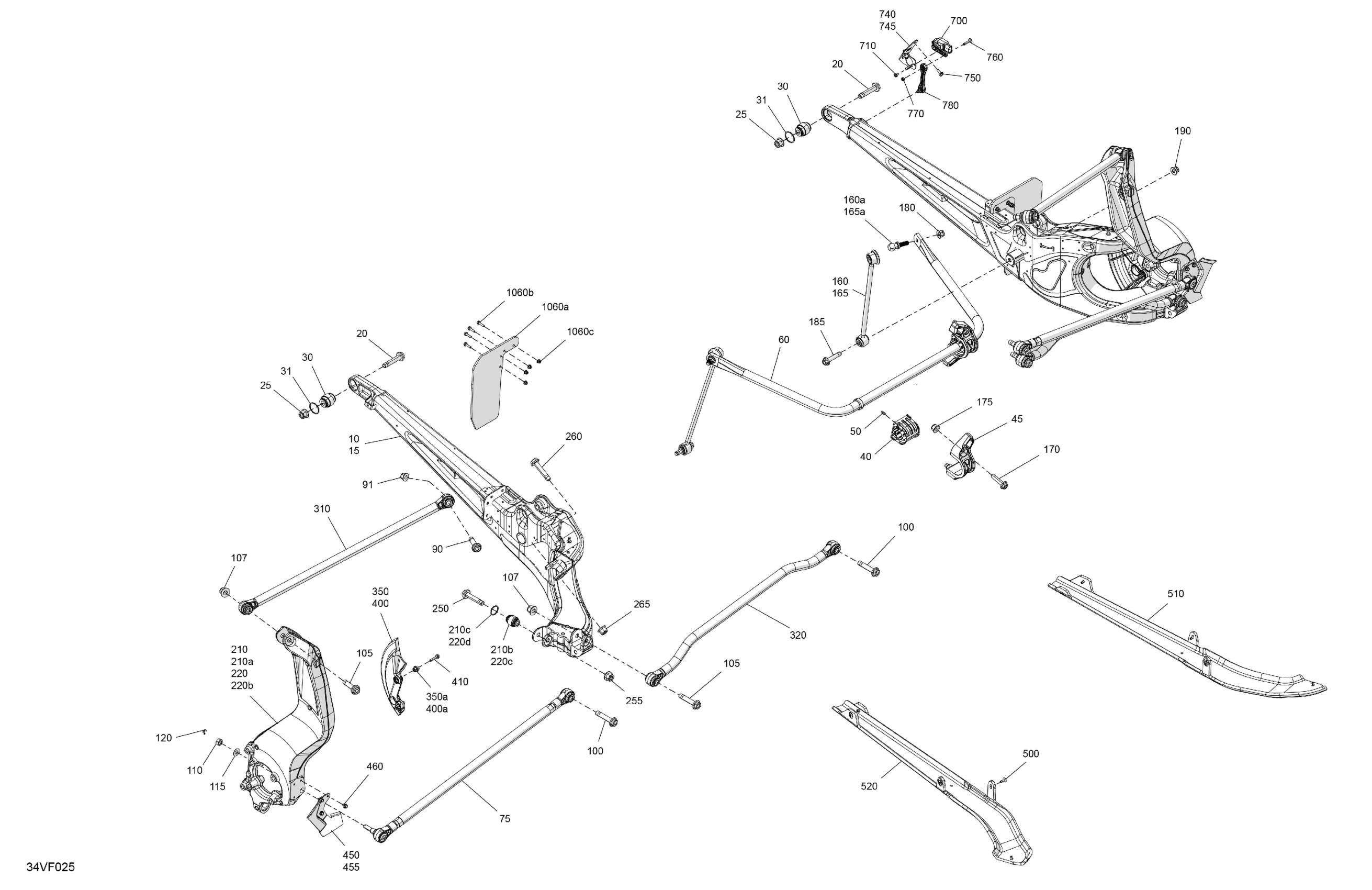

Can-Am Maverick R Max - 996NT2 - XRC SAS - 7JTA - Loft Green Satin - 77" Width - CALI, 2026 Suspension - Rear Components Diagram

#

Description
Price

10

Deep Black, LH Rear Suspension Arm

706006521

$817.58

15

Deep Black, RH Rear Suspension Arm

706006522

$817.58

20

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

25

Hex. Flange Elastic Nut M14

250001166

$12.06

30

Ball Joint

706005389

$44.75

31

Retaining Ring

293370166

$6.75

40

Stabilizer Bar Bushing

706005418

$13.52

45

Clamp

706004846

$29.82

50

Grease Fitting

408200700

$3.21

60

Stabilizer Bar Ass'y

706005757

$187.28

75

Central Suspension Arm Ass'y

706005030

$167.13

90

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

91

Hex. Flange Elastic Nut M14

250001166

$12.06

100

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

105

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

107

Hex. Flange Elastic Nut M14

250001166

$12.06

110

Hex Nut M12

250100239

$1.88

115

Hardened Washer

706200281

$2.69

120

Cotter Pin

211400017

$0.28

160

LH Stabilizer Link Bar | Includes 160 to 160a

706005360

$147.73

160a

Radial Joint

706002135

$40.27

165

RH Stabilizer Link Bar | Includes 165 to 165a

706005361

$147.73

165a

Radial Joint

706002135

$40.27

170

Screw Hex Flange M12 X 50

250001233

$6.21

175

Elastic Flange Nut M12

250001195

$2.46

180

Elastic Flange Nut M12

250001195

$2.46

185

Flange Screw M12 X 60

250000857

$6.99

190

Elastic Flange Nut M12

250001195

$2.46

210

Deep Black, LH Rear Knuckle Ass'y | Includes 210 to 210c

715011410

$455.19

210a

Not Available As Spare Parts

XXX

Unavailable

210b

Ball Joint | Not Shown

706004401

$40.27

210c

Retaining Ring | Not Shown

293370165

$6.75

220

Deep Black, RH Rear Knuckle Ass'y | Includes 220 to 220d

715011411

$455.19

220b

Not Available As Spare Parts

XXX

Unavailable

220c

Ball Joint | Not Shown

706004401

$40.27

220d

Retaining Ring | Not Shown

293370165

$6.75

250

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

255

Hex. Flange Elastic Nut M14

250001166

$12.06

260

Hex. Flange Screw Din.6921 M14X2X70

250001175

$6.99

265

Hex. Flange Elastic Nut M14

250001166

$12.06

310

Upper Suspension Arm Ass'y

706005031

$147.73

320

LH Lower Suspension Arm Ass'y

706005033

$157.43

350

LH Rear Guard | Includes 350 to 350a

706004631

$47.73

350a

Spacer

706004805

Unavailable

400

RH Rear Guard | Includes 400 to 400a

706004632

$47.73

400a

Spacer

706004805

Unavailable

410

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

450

LH Deflector

706004703

$13.99

455

RH Deflector

706004704

$13.99

460

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76

500

LH Rear Suspension Arm Guard

706004523

$106.49

510

RH Rear Suspension Arm Guard

706004524

$106.49

520

Black, Ornit Rivet 3/16 X ,800

293150306

$1.04

700

Position Sensor

710009195

$62.66

710

Hex. Flange Screw M5x10

207551056

$1.81

740

LH Rear Sensor Support

706004723

$14.90

745

RH Rear Sensor Support

706004724

$14.90

750

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

760

Stainless, Torx Screw M6 X 30

250000842

$2.00

770

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.55

780

Link

706203429

$17.88

1060a

Retaining Plate

706006096

$1.97

1060b

Hex. Flange Screw M6 X 25

207662554

$1.43

1060c

Hex. Flange Elastic Nut M6

233261466

$1.91
