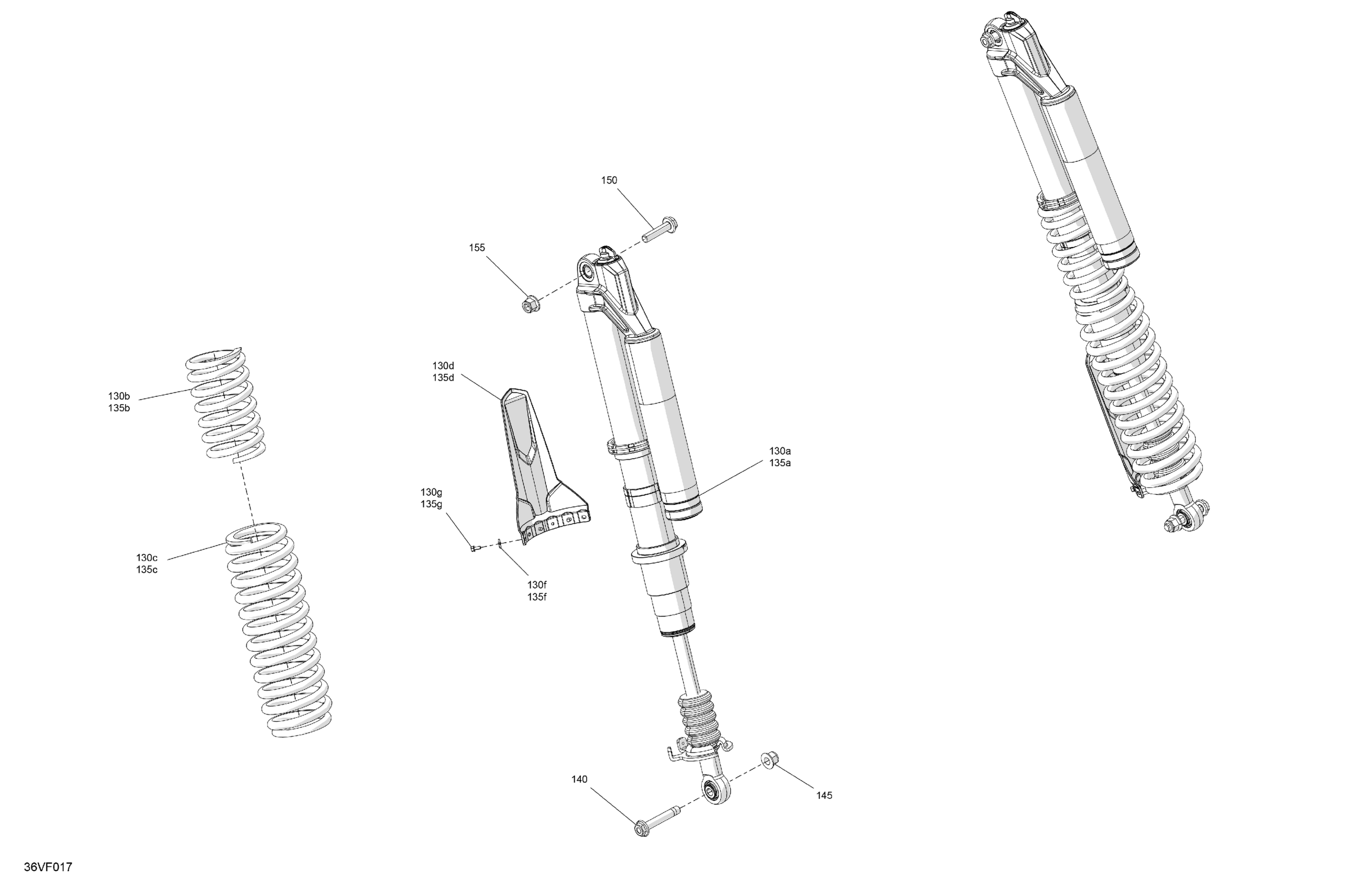

Can-Am Maverick R Max - 996NT2 - X - 8HTA - Legion Red - 77" Width - CALI, 2026 Suspension - Rear Shocks Diagram

Description

Price

130a

Rear Shock Absorber

706006249

$1,765.49

130b

Deep Black, Front Compression Spring

706205762

$151.46

130c

Deep Black, Rear Compression Spring

706005602

$151.46

130d

Protector

706202215

$8.66

130f

Washer M5

250200025

$0.70

130g

Hex Flange Screw M5 X 11

210251150

$2.00

135a

Rear Shock Absorber

706006249

$1,765.49

135b

Deep Black, Front Compression Spring

706205762

$151.46

135c

Deep Black, Rear Compression Spring

706005602

$151.46

135d

Protector

706202215

$8.66

135f

Washer M5

250200025

$0.70

135g

Hex Flange Screw M5 X 11

210251150

$2.00

140

Hex. Flange Screw Din.6921 M14X2X85

250001176

$6.99

145

Hex. Flange Elastic Nut M14

250001166

$12.06

150

Hex. Flange Screw Din.6921 M14X2X60

250001174

$6.99

155

Hex. Flange Elastic Nut M14

250001166

$12.06
