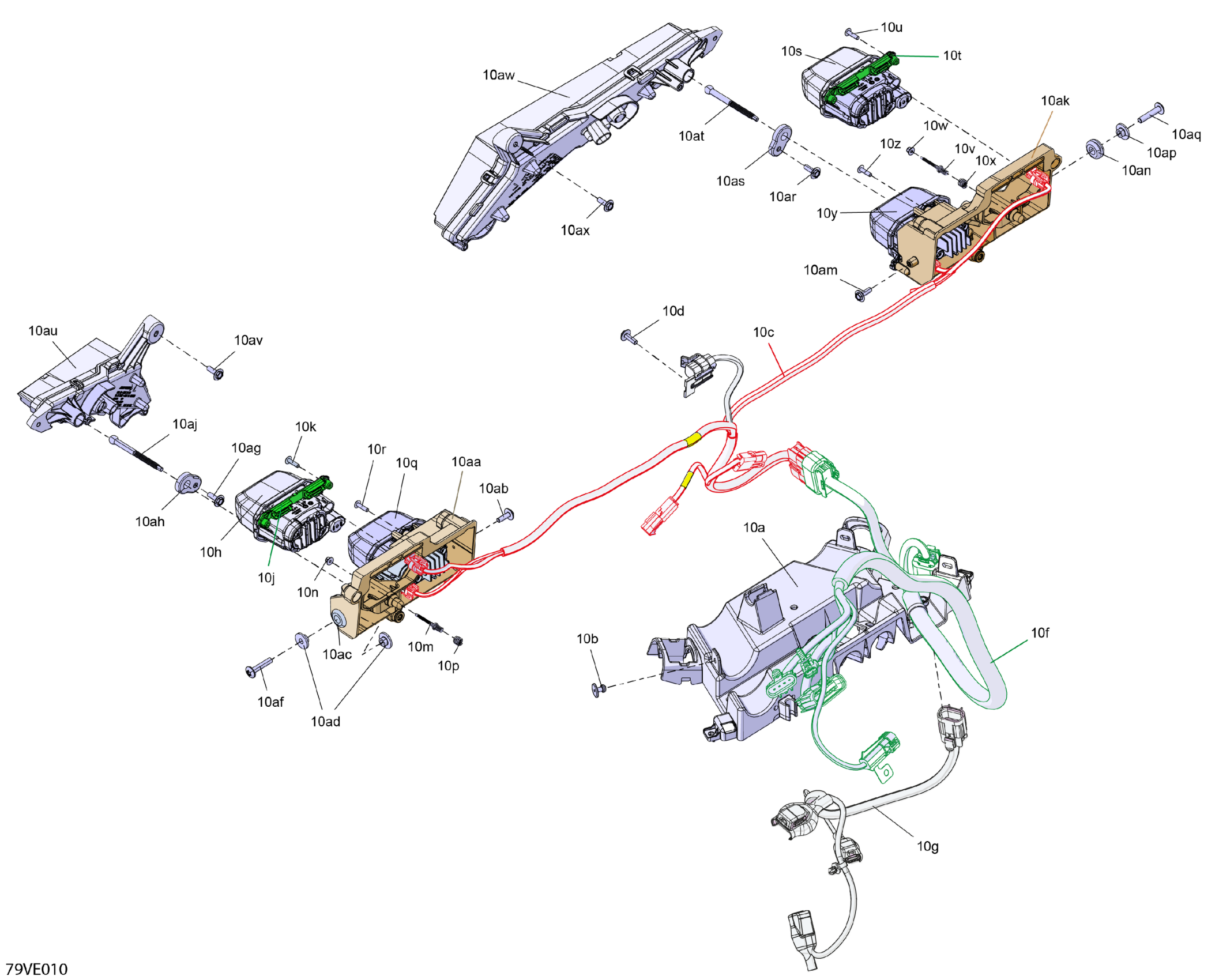

Can-Am Maverick R MAX - 996NT2 - X - 8HSA - Legion Red - 77" Width CALI, 2025 Electric - Front Section Diagram

Description

Price

10a

Multi Porpuse Support

710007813

$16.89

10b

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

10c

Headlight Wiring Harness

710008962

$115.35

10d

Screw PT Type K-50 X 16

250000959

$1.74

10f

Junction Wiring Harness

710009626

$115.35

10g

Differential Wiring Harness

710007357

$46.12

10h

Low Beam Light

710008089

$120.74

10j

Support Pivot | Not Shown

517309049

$2.66

10k

Torx-Truss Pt K40 X 16

250000759

$1.74

10m

Threaded Rod | Not Shown

517309133

$6.20

10n

Specialized Nut | Not Shown

517309134

$0.98

10p

Compression Spring | Not Shown

517309058

$7.23

10q

High Beam Light

710006911

$120.74

10r

Torx-Truss Pt K40 X 16

250000759

$1.74

10s

Low Beam Light

710008089

$120.74

10t

Support Pivot | Not Shown

517309049

$2.66

10u

Torx-Truss Pt K40 X 16

250000759

$1.74

10v

Threaded Rod | Not Shown

517309133

$6.20

10w

Specialized Nut | Not Shown

517309134

$0.98

10x

Compression Spring | Not Shown

517309058

$7.23

10y

High Beam Light

710006911

$120.74

10z

Torx-Truss Pt K40 X 16

250000759

$1.74

10aa

LH Front Headlight Support

708500087

$42.28

10ab

Screw PT Type K-50 X 16

250000959

$1.74

10ac

Overmolded Grommet

293720130

$4.38

10ad

Shoulder Bushing

710004749

$2.75

10af

Stainless, Torx Screw M6 X 30

250000842

$1.74

10ag

Screw PT Type K-50 X 16

250000959

$1.74

10ah

Ball Socket

293900157

$8.45

10aj

Ajustment Screw

710005837

$6.45

10ak

RH Front Headlight Support

708500088

$42.28

10am

Screw PT Type K-50 X 16

250000959

$1.74

10an

Overmolded Grommet

293720130

$4.38

10ap

Shoulder Bushing

710004749

$2.75

10aq

Stainless, Torx Screw M6 X 30

250000842

$1.74

10ar

Screw PT Type K-50 X 16

250000959

$1.74

10as

Ball Socket

293900157

$8.45

10at

Ajustment Screw

710005837

$6.45

10au

LH Auxiliary LED Light

710007638

$464.58

10av

Screw PT Type K-50 X 16

250000959

$1.74

10aw

RH Auxiliary LED Light

710007644

$464.58

10ax

Screw PT Type K-50 X 16

250000959

$1.74
