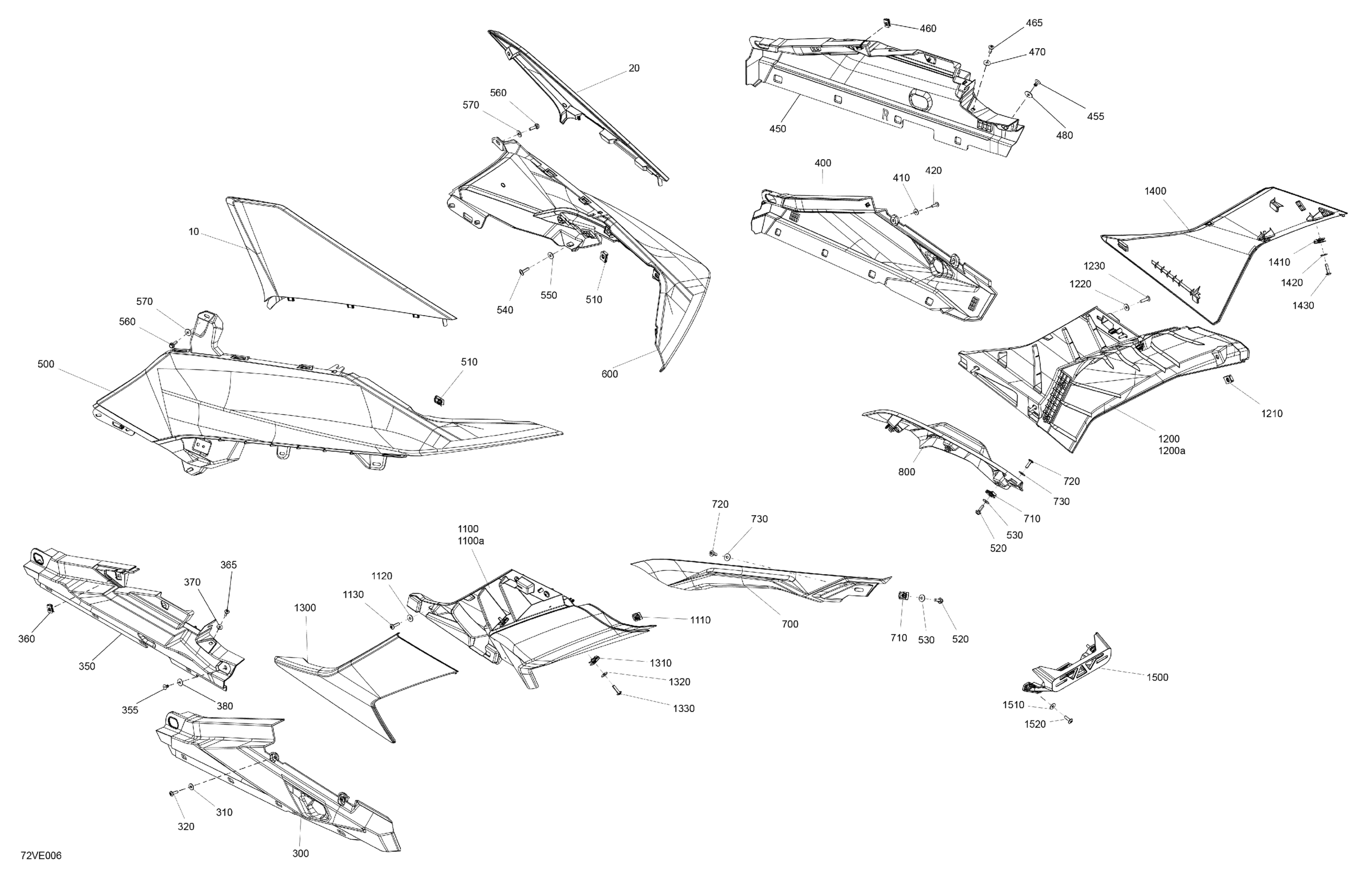

Can-Am Maverick R MAX - 996NT2 - X - 8HSA - Legion Red - 77" Width CALI, 2025 Body - Rear Section Diagram

#

Description
Price

10

Deep Black, LH Exterior Body Panel

708303784

$101.51

20

Deep Black, RH Exterior Body Panel

708303785

$101.51

300

LH Rear Rocker Panel

705016451

$110.74

310

Stainless Steel Flat Washer

234062670

$1.74

320

Torx Screw M6 X 20

250000722

$1.34

350

LH Rocker Panel

705017480

$110.74

355

Pop Rivet 3/16”

293150108

$1.23

360

Panel Nut M6 X 1.0

250100208

$1.07

365

Torx Screw M6 X 20

250000722

$1.34

370

Stainless Steel Flat Washer

234062670

$1.74

380

Flat Washer M6.6 X 22

250200162

$1.91

400

RH Rear Rocker Panel

705016452

$110.74

410

Stainless Steel Flat Washer

234062670

$1.74

420

Torx Screw M6 X 20

250000722

$1.34

450

RH Rocker Panel

705017481

$110.74

455

Pop Rivet 3/16”

293150108

$1.23

460

Panel Nut M6 X 1.0

250100208

$1.07

465

Torx Screw M6 X 20

250000722

$1.34

470

Stainless Steel Flat Washer

234062670

$1.74

480

Flat Washer M6.6 X 22

250200162

$1.91

500

Legion Red, LH Rear Fender

708304932

$189.97

510

Panel Nut M6 X 1.0

250100208

$1.07

520

Hex. Flange Screw M6 X 20

207662054

$0.83

530

Stainless Steel Flat Washer

234062670

$1.74

540

Torx Truss Screw M6 X 25

250000807

$1.74

550

Stainless Steel Flat Washer

234062670

$1.74

560

Hex. Flange Screw M6 X 20

207662054

$0.83

570

Stainless Steel Flat Washer

234062670

$1.74

600

Legion Red, RH Rear Fender

708304933

$189.97

700

LH Rear Mud Guard

705015534

$55.35

710

Panel Nut M6 X 1.0

250100208

$1.07

720

Torx Screw M6 X 20

250000722

$1.34

730

Stainless Steel Flat Washer

234062670

$1.74

800

RH Rear Mud Guard

705015535

$55.35

1100

LH Rear Mud Guard

705016469

$55.35

1100a

Deep Black, LH Taillight Trim

708303788

$101.51

1110

Panel Nut M6 X 1.0

250100208

$1.07

1120

Stainless Steel Flat Washer

234062670

$1.74

1130

Torx Truss Screw M6 X 25

250000807

$1.74

1200

RH Rear Mud Guard

705016470

$55.35

1200a

Deep Black, RH Taillight Trim

708303789

$101.51

1210

Panel Nut M6 X 1.0

250100208

$1.07

1220

Stainless Steel Flat Washer

234062670

$1.74

1230

Torx Truss Screw M6 X 25

250000807

$1.74

1300

Legion Red, LH Lower Body Panel

705018949

$69.20

1310

Panel Nut M6 X 1.0

250100208

$1.07

1320

Stainless Steel Flat Washer

234062670

$1.74

1330

Torx Truss Screw M6 X 25

250000807

$1.74

1400

Legion Red, RH Lower Body Panel

705018950

$69.20

1410

Panel Nut M6 X 1.0

250100208

$1.07

1420

Stainless Steel Flat Washer

234062670

$1.74

1430

Torx Truss Screw M6 X 25

250000807

$1.74

1500

License Plate Support

705017197

$12.91

1510

Stainless Steel Flat Washer

234062670

$1.74

1520

Torx Screw M6 X 20

250000722

$1.34
