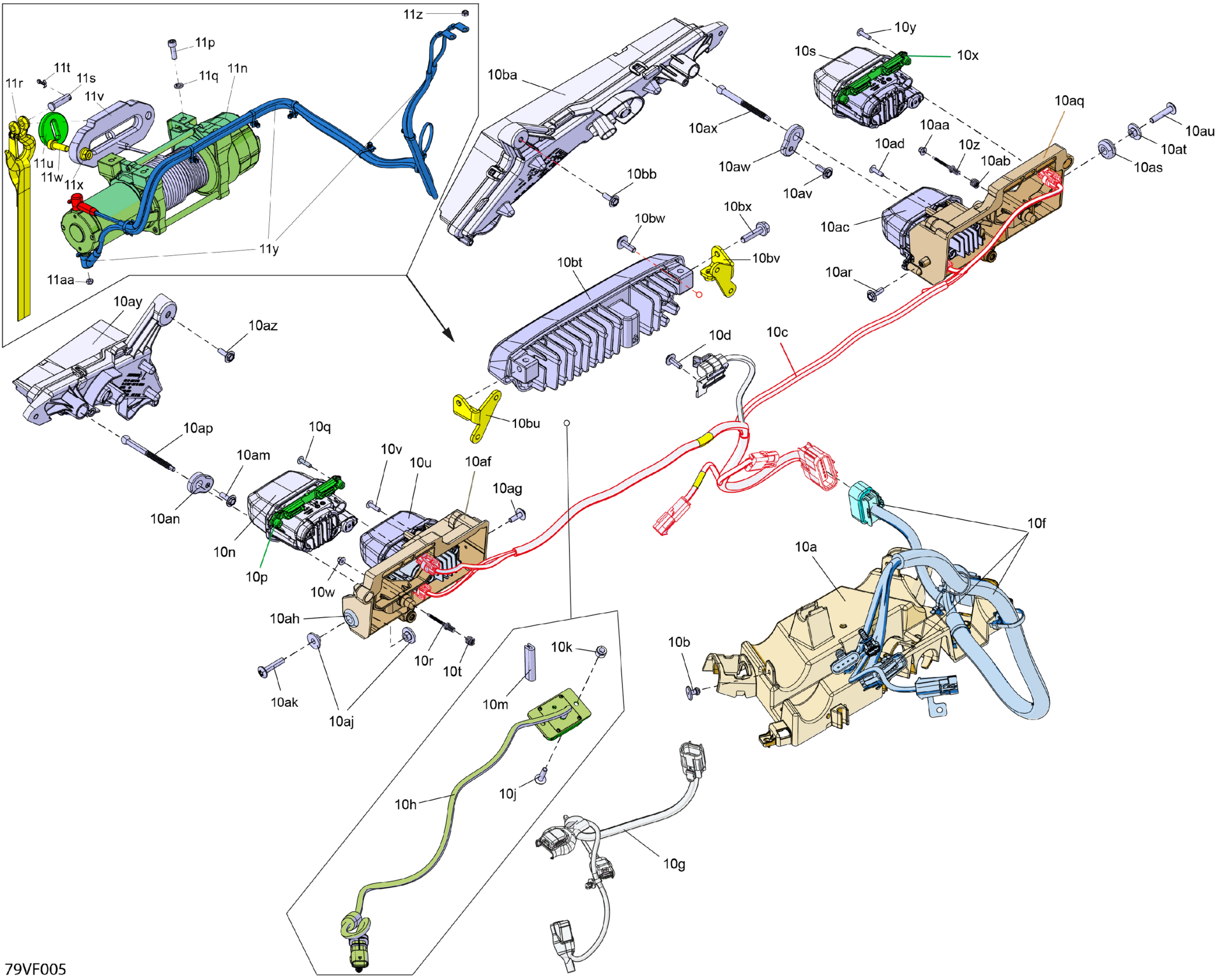

Can-Am Maverick R - 996NT2 - XRC - 7GTB - Loft Green Satin - 77" Width, 2026 Electric - Front Section Diagram

#

Description
Price

10a

Multi Purpose Support

710011284

$19.99

10b

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

10c

Headlight Wiring Harness

710008962

$119.99

10d

Screw PT Type K-50 X 16

250000959

$2.11

10f

Junction Wiring Harness

710009626

$119.99

10g

Differential Wiring Harness

710007357

$48.99

10h

Camera

710007892

$319.99

10j

Torx Head Screw M4 X 16

250000797

$2.09

10k

Elastic Stop Nut M4

232541484

$0.74

10m

Edge Cut Trim 1000Mm

219704548

Unavailable

10n

Low Beam Light

710008088

$139.99

10p

Support Pivot | Not Shown

517309049

$2.79

10q

Torx-Truss Pt K40 X 16

250000759

$2.11

10r

Threaded Rod | Not Shown

517309133

$7.55

10s

Specialized Nut | Not Shown

517309134

$1.01

10t

Compression Spring | Not Shown

517309058

$7.41

10u

HIgh Beam Light

710006910

$129.99

10v

Torx-Truss Pt K40 X 16

250000759

$2.11

10w

Low Beam Light

710008088

$139.99

10x

Support Pivot | Not Shown

517309049

$2.79

10y

Torx-Truss Pt K40 X 16

250000759

$2.11

10z

Threaded Rod | Not Shown

517309133

$7.55

10aa

Specialized Nut | Not Shown

517309134

$1.01

10ab

Compression Spring | Not Shown

517309058

$7.41

10ac

HIgh Beam Light

710006910

$129.99

10ad

Torx-Truss Pt K40 X 16

250000759

$2.11

10af

LH Front Headlight Support

708500155

$47.99

10ag

Screw PT Type K-50 X 16

250000959

$2.11

10ah

Overmolded Grommet

293720130

$4.69

10aj

Shoulder Bushing

710004749

$2.69

10ak

Stainless, Torx Screw M6 X 30

250000842

$2.11

10am

Screw PT Type K-50 X 16

250000959

$2.11

10an

Ball Socket

293900157

$9.59

10ap

Ajustment Screw

710005837

$6.35

10aq

RH Front Headlight Support

708500156

$47.99

10ar

Screw PT Type K-50 X 16

250000959

$2.11

10as

Overmolded Grommet

293720130

$4.69

10at

Shoulder Bushing

710004749

$2.69

10au

Stainless, Torx Screw M6 X 30

250000842

$2.11

10av

Screw PT Type K-50 X 16

250000959

$2.11

10aw

Ball Socket

293900157

$9.59

10ax

Ajustment Screw

710005837

$6.35

10ay

LH Auxiliary LED Light

710008305

Unavailable

10az

Screw PT Type K-50 X 16

250000959

$2.11

10ba

RH Auxiliary LED Light

710008306

Unavailable

10bb

Screw PT Type K-50 X 16

250000959

$2.11

10bt

Central Auxiliary LIght

710007904

$468.49

10bu

Light Support

710009933

$13.99

10bv

Light Support

710009934

$13.99

10bw

Screw PT Type K-50 X 16

250000959

$2.11

10bx

Hex Flange Screw M6 X 25

250000841

$7.51

11n

Electric Winch

710011630

$799.99

11p

Socket Head Screw M8 X 25

205082544

$1.15

11q

Lock Washer 8 mm

234181401

$0.92

11r

Winch Hook Kit

705014949

$24.99

11s

Winch Hook Kit

705014949

$24.99

11t

Winch Hook Kit

705014949

$24.99

11u

Stopper

710007028

$3.82

11v

Winch Rope Guide Kit

715006426

$61.49

11w

Socket Screw M10 x 30 | XT

205003044

$3.17

11x

Hex. Flange Elastic Nut M10

233201436

$2.11

11y

Winch Wiring Harness

710007671

$114.99

11z

Elastic Stop Nut M6, Brass

232561200

$4.23

11aa

Elastic Stop Nut M6, Brass

232561200

$4.23
