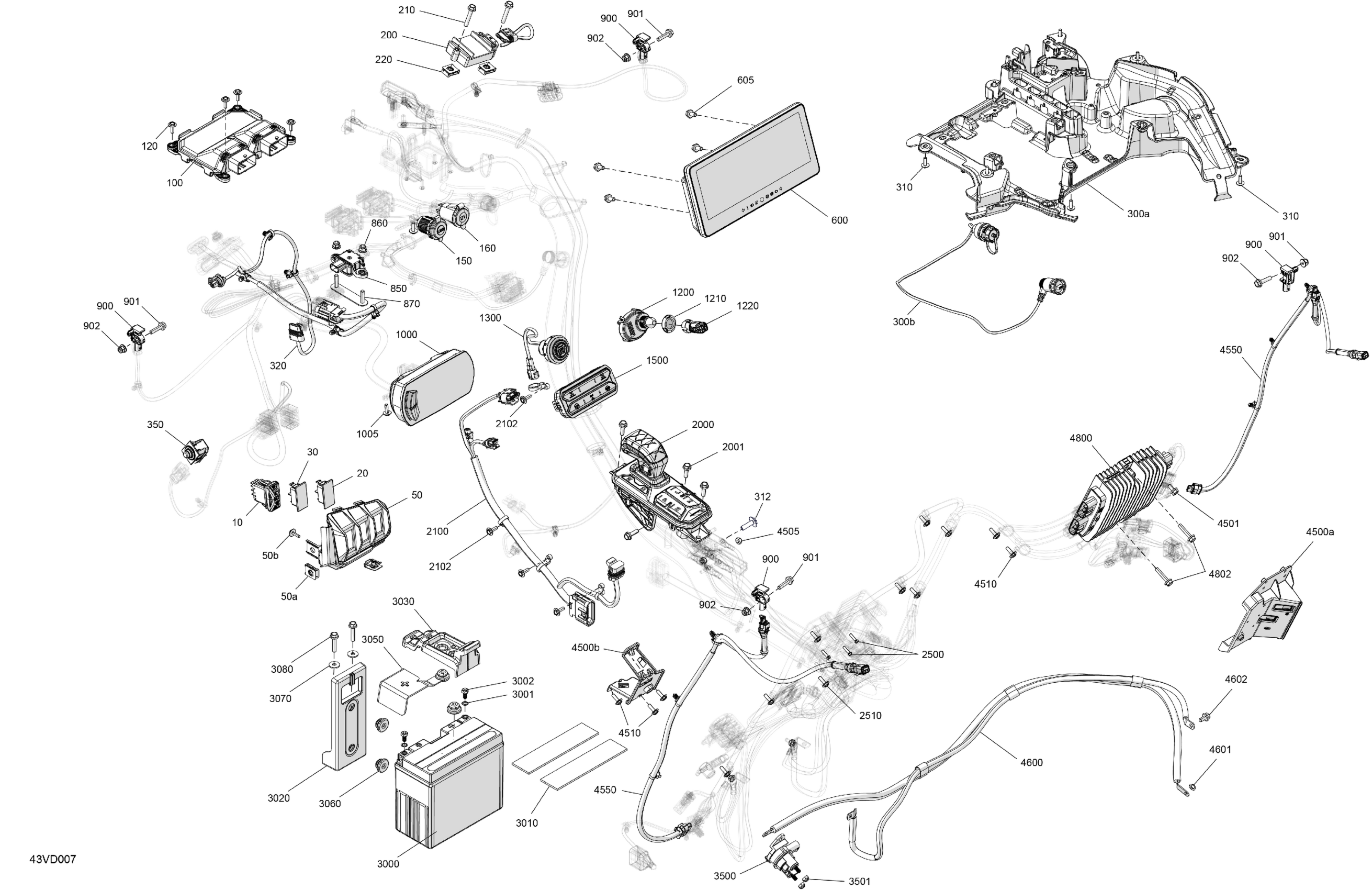

Can-Am Maverick R 996NT - XRS - 7ARC - Neo Yellow - 77" Width SAS CALI, 2024 Electric - Central Electric Diagram

Light Switch

710007663

$47.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Switch Support Ass'y | Includes 20d to 20d3

710009476

$18.99

Panel Nut M6 X 1.0

250100208

$1.46

Plastite Screw M4 X 10

250000805

$2.11

BCM Module OPT #1

710007493

$959.99

Screw PT Type K-50 X 16

250000959

$2.11

USB Outlet

219400510

$42.99

12V Power Outlet

710005374

$33.99

GPS

278004506

$109.99

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

Panel Nut M6 X 1.0

250100208

$1.46

Fuse Holder Support

710007735

$50.99

USB Wiring Harness

710007479

$76.99

Screw PT Type K-50 X 16

250000959

$2.11

Screw PT Type K-50 X 16

250000959

$2.11

Accelerator Pedal Wiring Harness

710008927

$229.99

Door Switch

710008822

$76.99

Multifunction Gauge 10

710009417

$2,049.99

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Yaw Rate Sensor

710005998

$419.99

Hex. Flange Elastic Nut M6

233261494

$1.58

Sensor Support | Includes 1825 to 1825a

710009676

$17.99

Acceleration Sensor

710004221

$69.99

Hex. Flange Screw M6 X 25

207662554

$1.48

Hex. Flange Elastic Nut M6

233261494

$1.58

Multifunction Compact Gauge

710008298

$389.99

Screw PT Type K-50 X 16

250000959

$2.11

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

Specialized Nut

278004274

$3.28

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

Start-Stop Button | Not Shown

710005213

$60.49

Multifunction Switch

710007534

$134.99

Electronic Gear Shift Lever

710007338

$329.99

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Console Wiring Harness

710007667

$104.99

Screw PT Type K-50 X 16

250000959

$2.11

Screw M4 X 16

250000725

$3.49

Screw PT Type K-50 X 16

250000959

$2.11

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Washer | Not Shown

710009082

$1.29

Screw | Not Shown

710009084

$1.59

Rubber Pad

293830126

$13.76

Fixation Plate

710004788

$11.49

Fixation Plate

710004789

$9.29

Battery Cable Cap

710006471

$2.59

Stopper Rubber

705014429

$5.95

Flat Washer 6 mm

234062410

$0.77

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

Starter Relay

278003012

$42.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Connector Support

710008838

$15.27

Connector Support

710008839

$15.27

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Elastic Stop Nut M6, Brass

232561200

$4.23

Screw PT Type K-50 X 16

250000959

$2.11

Junction Wiring Harness

710008618

$439.99

Starter Wiring Harness

710007347

$104.99

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Voltage Regulator

710007558

$360.49

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11
